FRAME COVER (MODEL Y/K1)

GSX750F KATANA 2001 (K1) USA (E03)

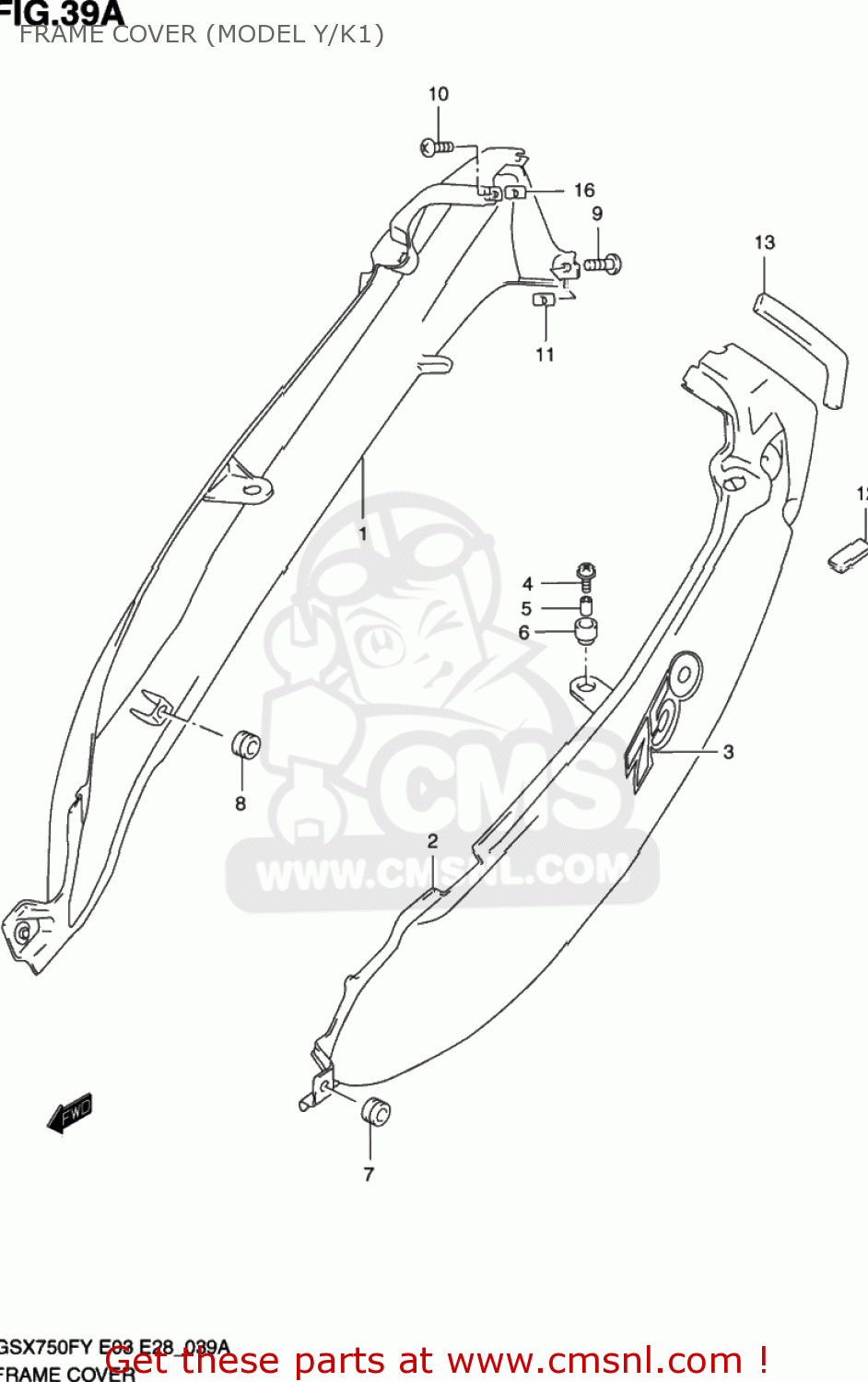

Frame cover (model y/k1) diagram GSX750F KATANA 2001 (K1) USA (E03)

FRAME COVER (MODEL Y/K1) GSX750F KATANA 2001 (K1) USA (E03)

FRAME COVER (MODEL Y/K1) GSX750F KATANA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711008F5022U
ref: 1-1

COVER,FRAME,R(MAROON)

€ 119.00

1-2

4711008F50Y9E
ref: 1-2

COVER,FRAME,R(GRAY)

€ 119.00

1-3

4711008F50YFX
ref: 1-3

COVER,FRAME,R(BLACK)

€ 171.00

1-4

4711008F50YC7
ref: 1-4

COVER,FRAME,R(GOLD)

€ 119.00

2-1

4721008F5022U
ref: 2-1

COVER,FRAME,L(MAROON)

€ 181.50

2-2

4721008F50Y9E
ref: 2-2

COVER,FRAME,L(GRAY)

€ 184.00

2-3

4721008F50YFX
ref: 2-3

COVER,FRAME(BL

€ 31.50

2-4

4721008F50YC7
ref: 2-4

COVER,FRAME,L(GOLD)

€ 171.00

3-1

6813108F50BD2
ref: 3-1

EMBLEM,FRAME COVER

€ 10.50

3-2

6813108F50BD3
ref: 3-2

EMBLEM,FRAME COVER

€ 9.00

3-3

6813108F50EG1
ref: 3-3

EMBLEM,FRAME COVER

€ 11.50

3-4

6813108F50EG3
ref: 3-4

EMBLEM,FRAME COVER

€ 8.50

4

0913606105
ref: 4

SCREW(6X20)

€ 2.00

5

0918006286
ref: 5

SPACER(6.5X10X9.4)

€ 2.50

6

0932010045
ref: 6

CUSHION

€ 3.50

7

0932008028
ref: 7

CUSHION

€ 2.50

8

0932008018
ref: 8

CUSHION

€ 4.00

9

0324115163
ref: 9
03241-1516A

SCREW

€ 2.00

10

0324115123
ref: 10
03241-1512B

SCREW

€ 2.50

11

0914805038
ref: 11

NUT

€ 2.50

12

4489424A00
ref: 12

CUSHION

€ 1.50

13

4716108F00
ref: 13

CUSHION,FRAME COVER

€ 6.00
