SPEEDOMETER (MODEL W/X)

GSX750F KATANA 2001 (K1) USA (E03)

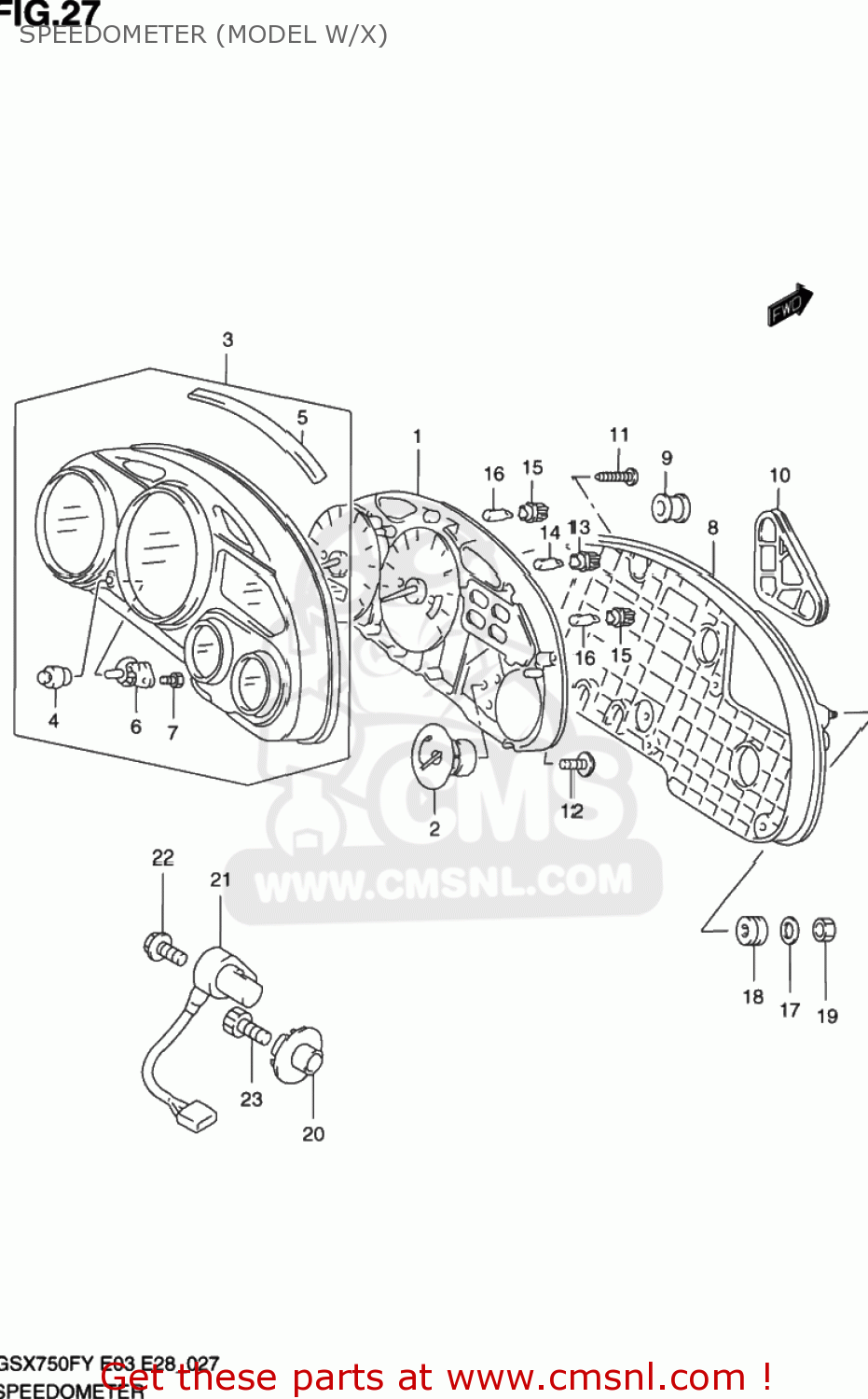

Speedometer (model w/x) diagram GSX750F KATANA 2001 (K1) USA (E03)

SPEEDOMETER (MODEL W/X) GSX750F KATANA 2001 (K1) USA (E03)

SPEEDOMETER (MODEL W/X) GSX750F KATANA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412008F40
ref: 1-1

SPEEDOMETER (MILE/KILO)

€ 678.50

1-2

3412008F30
ref: 1-2

SPEEDOMETER

€ 866.00

2

3432008F10
ref: 2
34320-08F50

FUEL METER ASSEMBLY

€ 91.00

3

3415008F10
ref: 3

VISOR ASSY

€ 119.00

4

3412433E00
ref: 4

SWITCH,GUM

€ 5.50

5

3415321EA0
ref: 5

PACKING (NAS)

€ 10.00

6

3412333E00
ref: 6

ATTACHMENT,SWITCH

€ 6.50

7

0913203005
ref: 7

SCREW(3X10)

€ 1.50

8

3413008F10
ref: 8
34130-08F11

CASE ASSEMBLY

€ 66.00

9

3419833E00
ref: 9

CAP,BLIND NO.1

€ 3.50

10

3419821EA0
ref: 10

CAP,BLIND

€ 7.50

11

0354104203
ref: 11
03541-0420A

SCREW

€ 2.50

12

0211273207
ref: 12

SCREW

€ 2.00

13

3417233E00
ref: 13

SOCKET(T:6.5)

€ 5.00

14

0947112108
ref: 14

BULB(12V1.7W,T6.5)

€ 2.00

15

3417578900
ref: 15

SOCKET

€ 3.50

16

0947112055
ref: 16

BULB(14V1.4W,T5)

€ 4.50

17

0916006054
ref: 17

WASHER(6.5X22X1.6)

€ 2.00

18

0932008053
ref: 18

CUSHION

€ 5.00

19

0831000063
ref: 19
08310-0006A

NUT 6MM

€ 2.00

20

3498142E00
ref: 20
34981-42E01

ROTOR,SPEED

€ 16.00

21

3499033E10
ref: 21
34990-35F00

SENSOR,SPEED

€ 112.50

22

0712005123
ref: 22
07120-0512B

BOLT

€ 2.00

23

0713008203
ref: 23
07130-0820B

BOLT

€ 3.00
