COOLING FAN (E33)
GSX750F KATANA 2001 (K1) USA (E03)

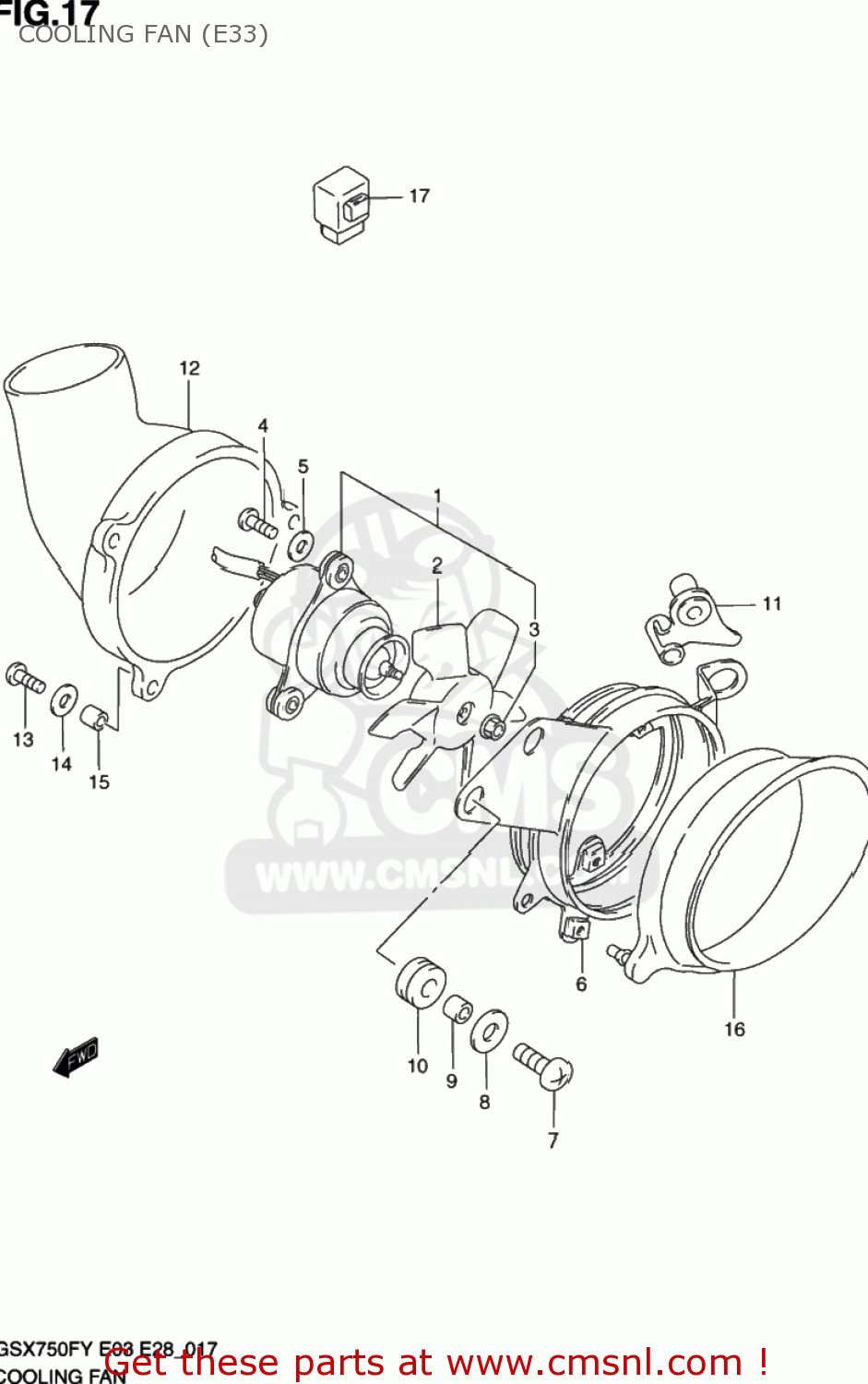

Cooling fan (e33) diagram GSX750F KATANA 2001 (K1) USA (E03)
COOLING FAN (E33) GSX750F KATANA 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1710048B00
ref: 1
FAN ASSY,COOLING
€ 187.50
2
1712048B00
ref: 2
FAN
€ 24.00
3
0831610033
ref: 3
NUT
€ 1.50
4
0211204163
ref: 4
02112-0416A
SCREW 4X16
€ 1.00
5
0916004022
ref: 5
WASHER(4.3X14X0.8)
€ 1.50
6
1725020C00
ref: 6
SHROUD,FAN
€ 35.00
7
0214206203
ref: 7
02142-0620A
SCREW
€ 2.00
8
0916006056
ref: 8
WASHER(6.5X18X1)
€ 2.00
9
0918006257
ref: 9
SPACER(6.5X9X6.5)
€ 2.50
10
0932009036
ref: 10
CUSHION
€ 4.00
11
1726020C00
ref: 11
BRACKET,FAN SHROUD
€ 6.00
12
1727120C00
ref: 12
DUCT,FAN COOLING NO.1
€ 23.00
13
0211204123
ref: 13
02112-0412A
SCREW
€ 1.50
14
0916004022
ref: 14
WASHER(4.3X14X0.8)
€ 1.50
15
0918004301
ref: 15
SPACER(4.5X6.5X5)
€ 0.00
16
1727208F00
ref: 16
DUCT,FAN COOLING NO.2
€ 0.00
17
3887048B00
ref: 17
CONTROLLER ASSY,FAN MOTOR
€ 145.50
