SEAT (MODEL Y/K1/K2)
GSX750F KATANA 2001 (K1) USA (E03)

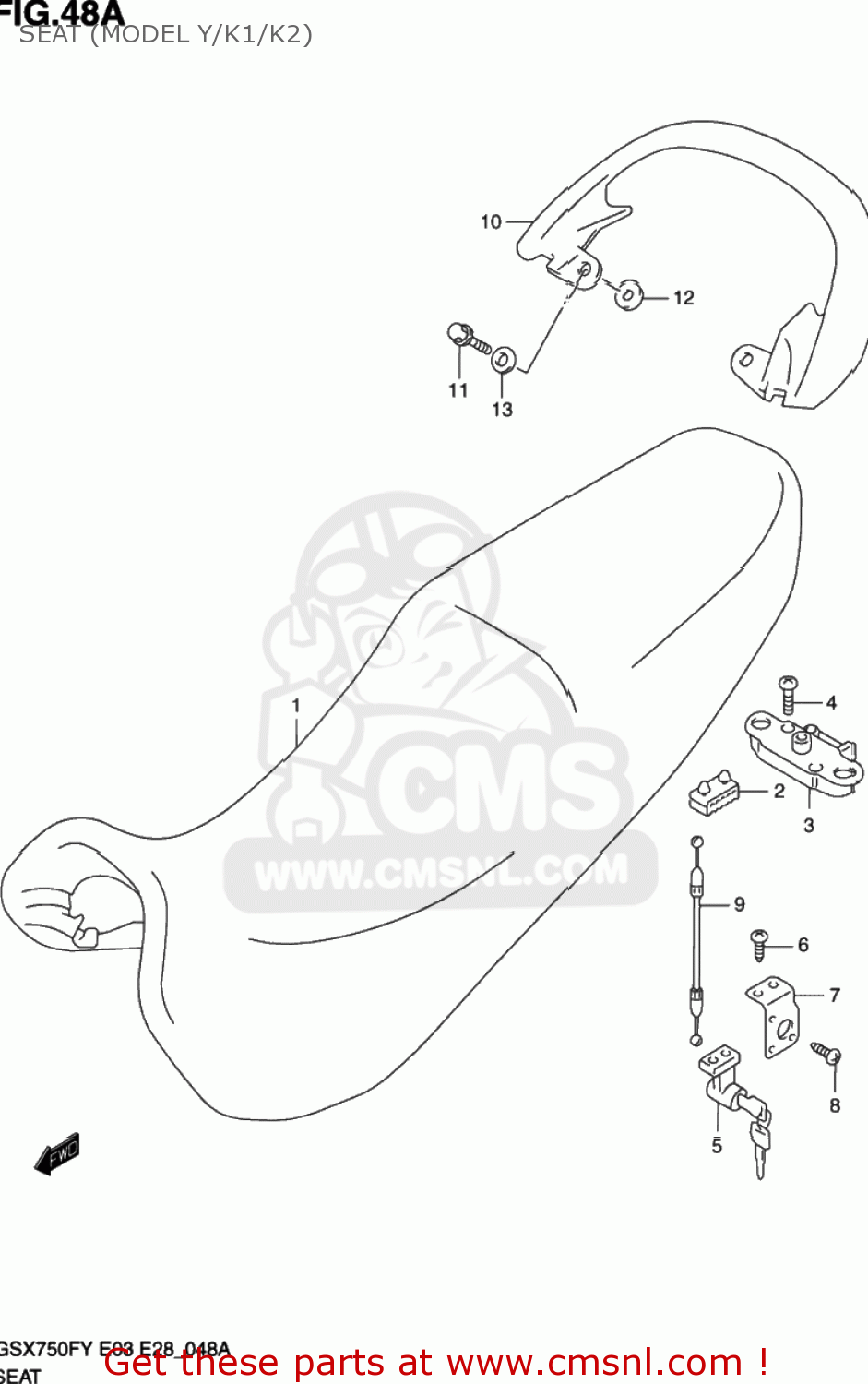

Seat (model y/k1/k2) diagram GSX750F KATANA 2001 (K1) USA (E03)
SEAT (MODEL Y/K1/K2) GSX750F KATANA 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510008F00V09
ref: 1
45100-08F01-V09
SEAT ASSEMBLY
€ 363.50
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
4522020A01
ref: 3
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
4
0212206303
ref: 4
02122-0630B
SCREW
€ 2.00
5
9570031840
ref: 5
95700-31841
LOCK SET,SEAT
€ 57.00
6
0154705103
ref: 6
01547-0510B
BOLT
€ 2.50
7
4528903F00
ref: 7
BRACKET,SEAT LOCK
€ 6.00
8
0314114123
ref: 8
03141-1412B
SCREW
€ 2.00
9
4528025D00
ref: 9
CABLE,SEAT LOCK
€ 11.00
10-1
4621103F1122U
ref: 10-1
HANDLE,PILLION RIDER
€ 172.00
10-2
4621103F11Y9E
ref: 10-2
HANDLE,PILLION RIDER
€ 172.00
10-3
4621103F11YC7
ref: 10-3
HANDLE,PILLION RIDER
€ 172.00
10-4
4621103F11Y7L
ref: 10-4
HANDLE,PILLION RIDER
€ 137.00
10-5
4621103F1119A
ref: 10-5
HANDLE,PILLION RIDER
€ 172.00
11
0155108303
ref: 11
01551-0830A
BOLT.MUF SPRT F
€ 3.00
12
4621203F10
ref: 12
CUSHION,RIDER HNDL(17X24X1.5)
€ 13.50
13
0916008501
ref: 13
WASHER(8.5X24X2.3)
€ 2.00
