Buy Suzuki GSX Parts Online


COWLING BODY (MODEL K2)

GSX750F KATANA 2001 (K1) USA (E03)

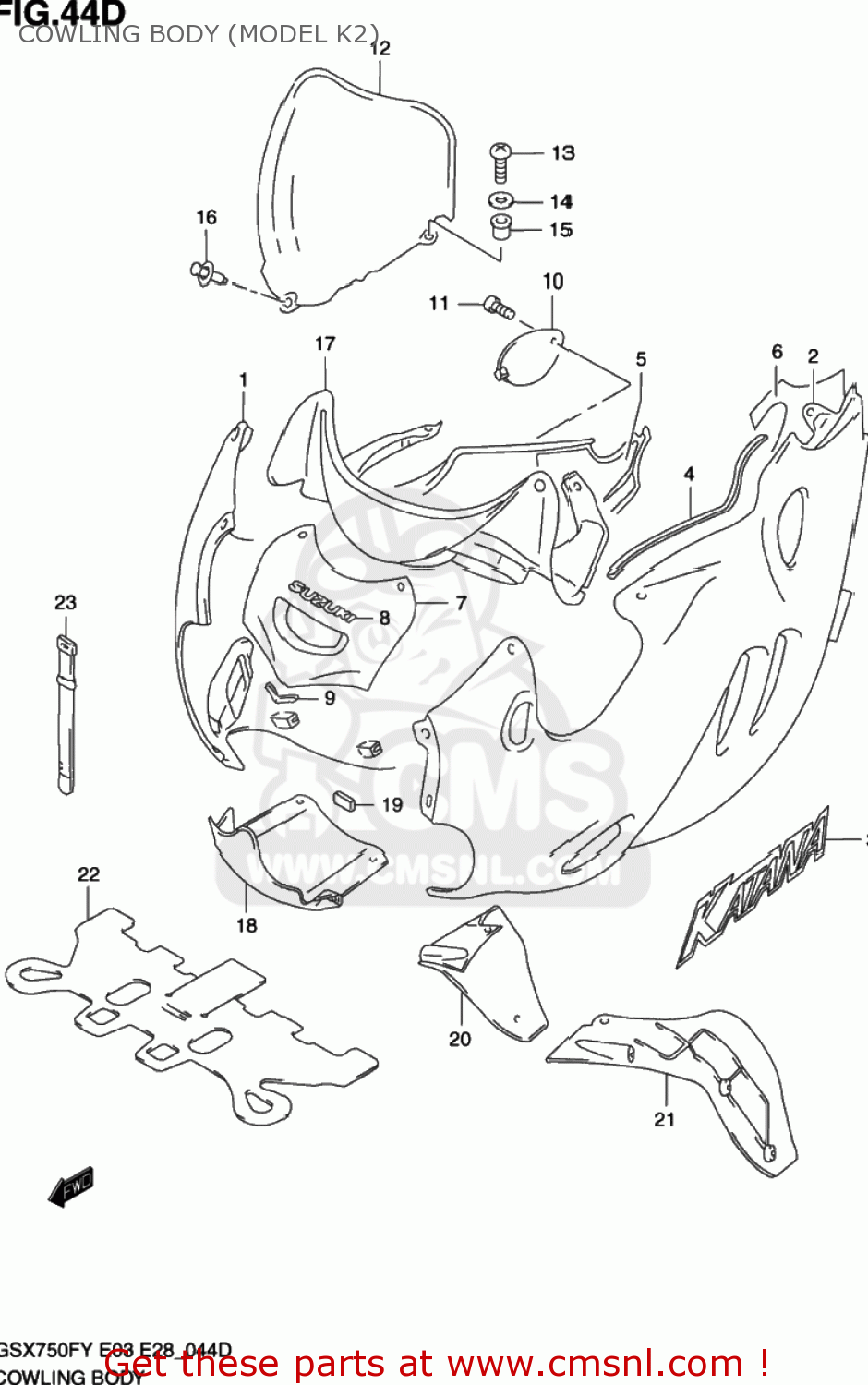

Cowling body (model k2) diagram GSX750F KATANA 2001 (K1) USA (E03)

COWLING BODY (MODEL K2) GSX750F KATANA 2001 (K1) USA (E03)
COWLING BODY (MODEL K2) GSX750F KATANA 2001 (K1) USA (E03)
COWLING BODY (MODEL K2) GSX750F KATANA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9440308FG019A
ref: 1-1
COWLING ASSY,SIDE,R
9440308FG019A
€ 566.50
1-2
9440308FG0YFX
ref: 1-2
COWLING ASSY,SIDE,R
€ 0.00
2-1
9440408FG019A
ref: 2-1
COWLING ASSY,SIDE,L
€ 0.00
2-2
9440408FG0YFX
ref: 2-2
COWLING ASSY,SIDE,L
€ 0.00
2-3
9440408FH019A
ref: 2-3
COWLING ASSY,SIDE,L
€ 0.00
2-4
9440408FH0YFX
ref: 2-4
COWLING ASSY,SIDE,L
€ 0.00
3-1
6868108F50HR4
ref: 3-1
EMBLEM,KATANA
€ 0.00
3-2
6868108F50HR5
ref: 3-2
EMBLEM,KATANA
€ 0.00
4
9463144110
ref: 4
MOLD,COWLING
9463144110
€ 18.00
5
9443908F00
ref: 5
SHIELD,COWLING COVER,R
9443908F00
€ 57.00
6
9444908F00
ref: 6
SHIELD,COWLING COVER,L
9444908F00
€ 57.00
7-1
9441008F0019A
ref: 7-1
PANEL,COWLING CTR UPR
€ 52.00
7-2
9441008F00Y7L
ref: 7-2
PANEL,COWLING CTR UPR
9441008F00Y7L
€ 50.50
8-1
6818505C10019
ref: 8-1
EMBLEM,FR
€ 10.00
8-2
6818505C1020H
ref: 8-2
EMBLEM,SUZUKI(SILVER)
6818505C1020H
€ 13.50
9
9441308F00
ref: 9
CUSHION,CTR PANEL UPR
9441308F00
€ 2.50
10-1
9443508F0019A
ref: 10-1
LID,OIL
€ 21.00
10-2
9443508F00Y7L
ref: 10-2
LID,OIL
9443508F00Y7L
€ 21.00
11
0913906030
ref: 11
SCREW(6X16)
0913906030
€ 3.50
12
9461108F00
ref: 12
WINDSCREEN
9461108F00
€ 243.00
13
0913905025
ref: 13
SCREW(5X14)
0913905025
€ 2.00
14
0832201053
ref: 14
08322-0105A
WASHER
0832201053
€ 2.50
15
0915905019
ref: 15
NUT
0915905019
€ 5.50
16
09409083085ES
ref: 16
CLIP(BLACK)
09409083085ES
€ 2.00
17
9442108F00
ref: 17
PANEL,METER
9442108F00
€ 111.00
18-1
9441208F0019A
ref: 18-1
PANEL,COWLING CTR LWR
€ 49.00
18-2
9441208F00Y7L
ref: 18-2
PANEL,COWLING CTR LWR
€ 46.50
19
9441408F00
ref: 19
94413-08F00
CUSHION,CENTER PANEL,LOWER
9441408F00
€ 2.50
20-1
9446108F0019A
ref: 20-1
PANEL,COWLING INNER,R
€ 88.00
20-2
9446108F00Y7L
ref: 20-2
PANEL,COWLING INNER,R
€ 88.00
21-1
9446208F0019A
ref: 21-1
PANEL,COWLING INNER,L
€ 88.00
21-2
9446208F00Y7L
ref: 21-2
PANEL,COWLING INNER,L
€ 86.00
22
9445120C01
ref: 22
PLATE,AIR GUIDE
9445120C01
€ 45.00
23-1
0940718402
ref: 23-1
CLAMP(L:165)
0940718402
€ 2.50
23-2
0940725401
ref: 23-2
CLAMP(L:235)
0940725401
€ 4.00
