BATTERY

GSX750F KATANA 2003 (K3) USA (E03)

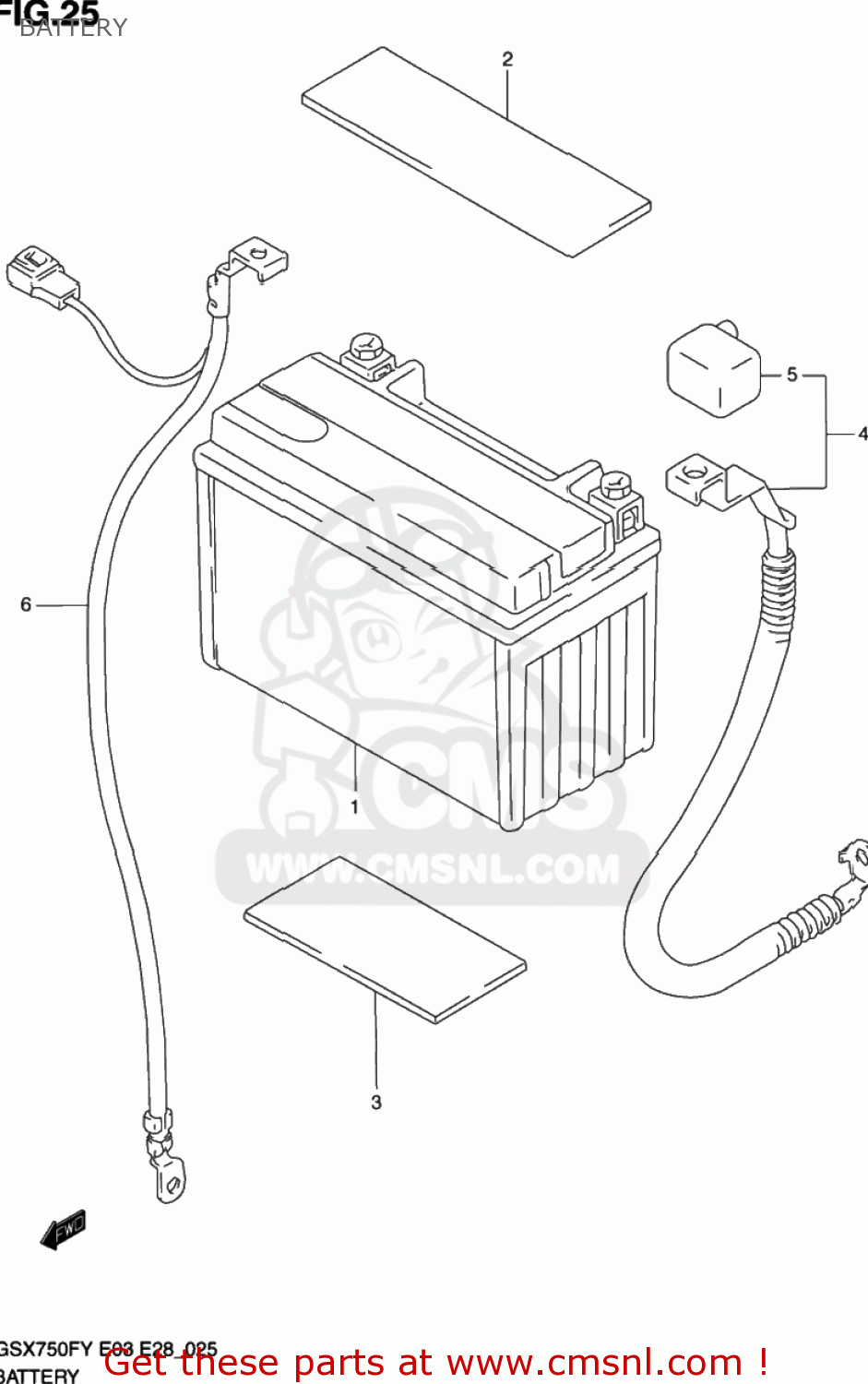

Battery diagram GSX750F KATANA 2003 (K3) USA (E03)

BATTERY GSX750F KATANA 2003 (K3) USA (E03)

BATTERY GSX750F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361033E20
ref: 1

BATTERY ASSEMBLY (12V) FTX

€ 108.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

3365235400
ref: 3

PROTECTOR(20X50X8)

€ 2.00

4

3382048E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 13.00

5

3362416E00
ref: 5

CAP,BATTERY PLUS

€ 4.00

6

3386008F00
ref: 6

WIRE,BATTERY MINUS

€ 14.00
