CYLINDER HEAD
GSX750F KATANA 2003 (K3) USA (E03)

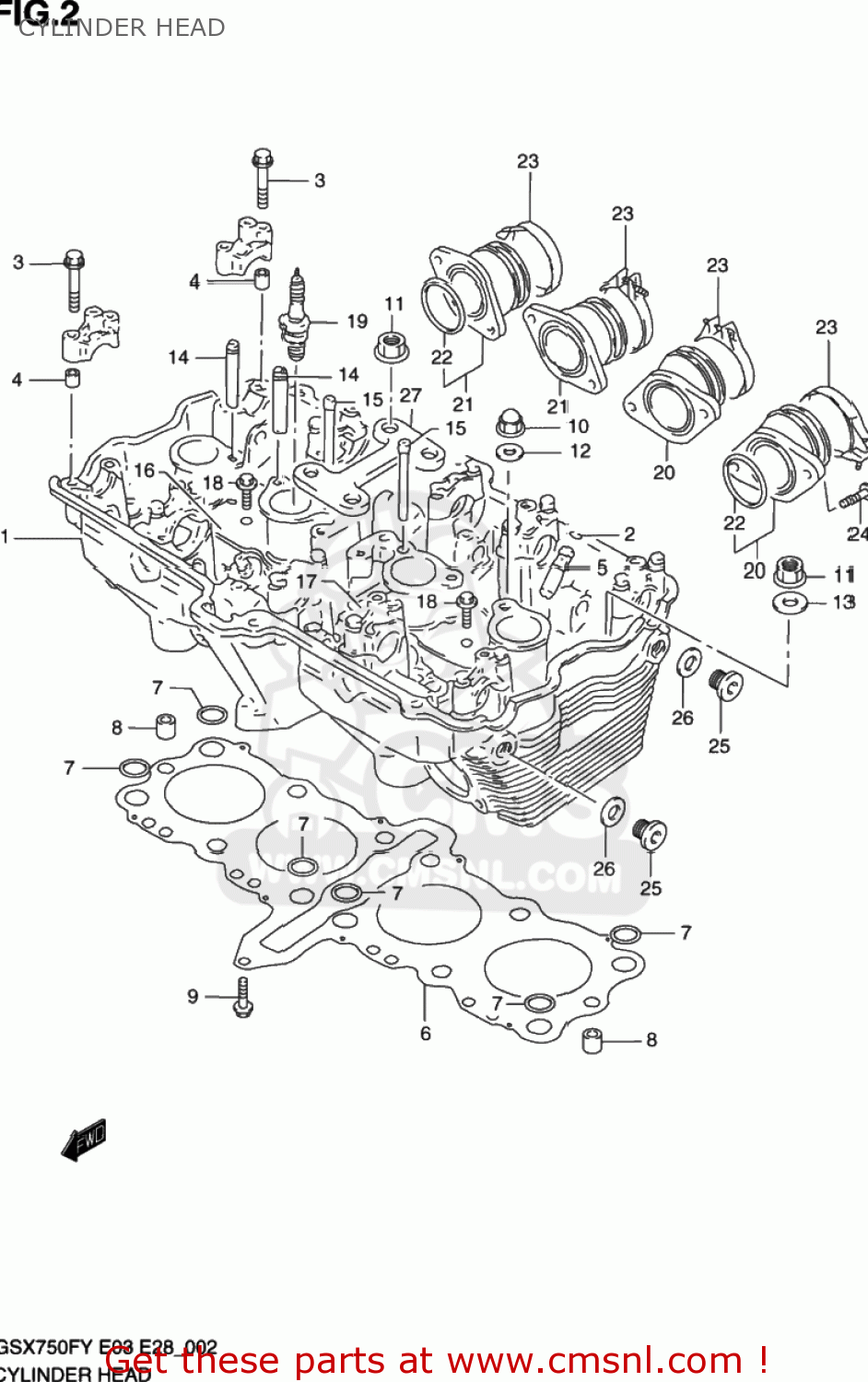

Cylinder head diagram GSX750F KATANA 2003 (K3) USA (E03)
CYLINDER HEAD GSX750F KATANA 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110017D20
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,660.00
1-2
1110008F10
ref: 1-2
HEAD ASSY,CYLINDER
€ 1,660.00
2
0938110004
ref: 2
RING,SNAP
€ 1.50
3
0910306026
ref: 3
BOLT(6X39)
€ 2.00
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
1111606B70
ref: 5
GUIDE,VALVE
€ 43.00
6
1114117D10
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 99.50
7
1114306B00
ref: 7
O RING,HEAD GASKET
€ 8.00
8
0421111189
ref: 8
PIN
€ 2.00
9
0155006303
ref: 9
01550-0630A
BOLT
€ 2.50
10
0915910069
ref: 10
NUT
€ 5.00
11
0831610103
ref: 11
08316-1010B
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
€ 4.00
18
0155006123
ref: 18
01550-0612A
BOLT
€ 2.50
19-1
0948200410
ref: 19-1
PLUG,SPARK(CR9EK)
€ 10.50
19-2
0948200411
ref: 19-2
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
19-3
0948200412
ref: 19-3
PLUG,SPARK(CR8EK)
€ 11.00
19-4
0948200413
ref: 19-4
PLUG,SPARK(U24ETR)
€ 11.00
19-5
0948200462
ref: 19-5
PLUG,SPARK(CR10EK)
€ 10.50
19-6
0948200463
ref: 19-6
PLUG,SPARK(U31ETR)
€ 10.50
20
1310108F00
ref: 20
PIPE ASSY,INTAKE NO.1
€ 50.00
21
1310308F00
ref: 21
PIPE ASSY,INTAKE NO.3
€ 55.00
22
0928042003
ref: 22
O RING(D:2.4,ID:41.7)
€ 8.50
23
0940252208
ref: 23
CLAMP
€ 5.50
24
0712006163
ref: 24
07120-0616B
BOLT MAGNETO S
€ 2.50
25
0924814010
ref: 25
PLUG
€ 5.00
26
0916814002
ref: 26
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
1113840C00
ref: 27
PLATE,HEAD REINF
€ 34.50
