UNDER COWLING (MODEL K1)

GSX750F KATANA 2003 (K3) USA (E03)

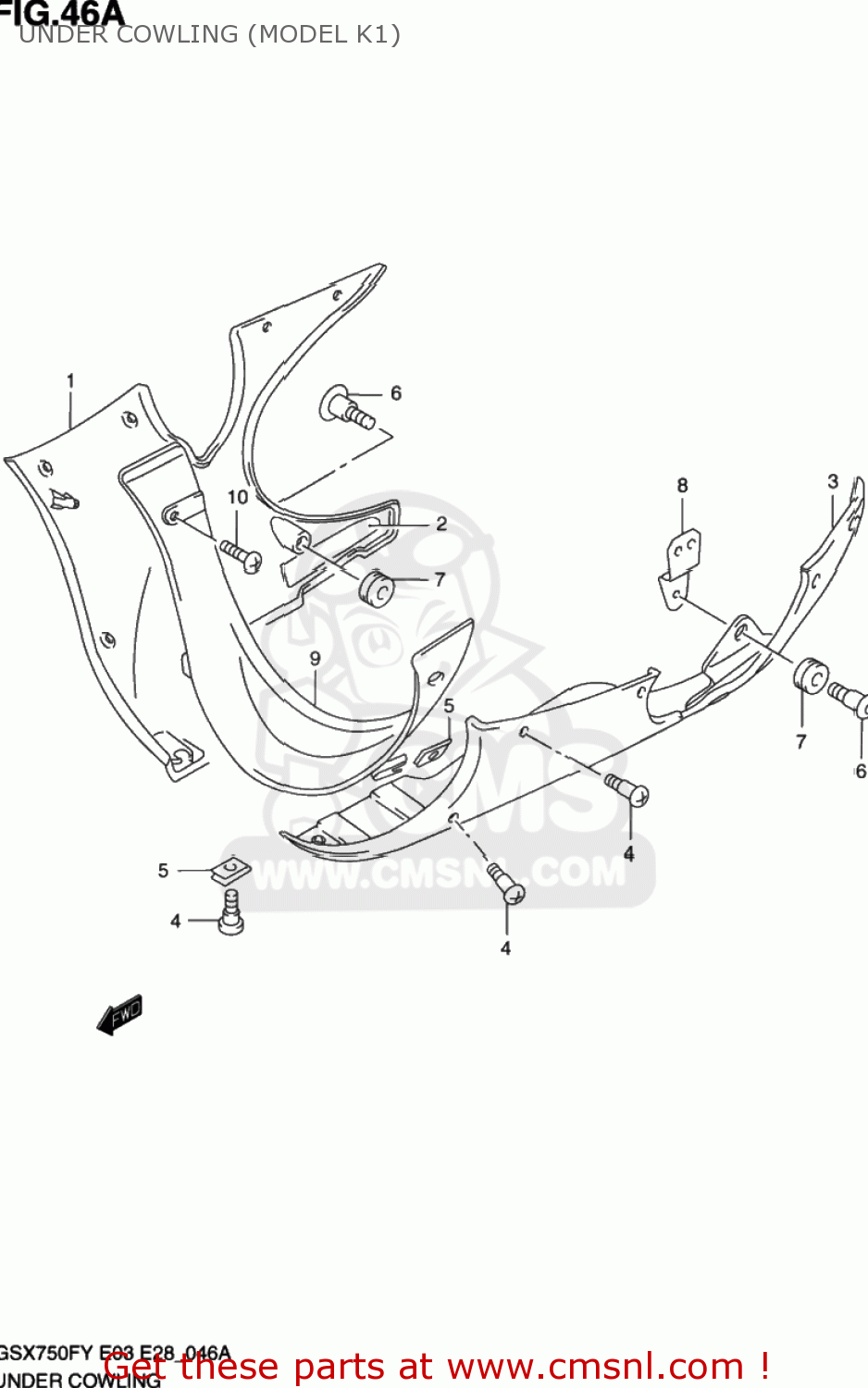

Under cowling (model k1) diagram GSX750F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9447008F0024K
ref: 1-1

COWLING,UNDER,R(CHARCOAL)

€ 148.50

1-2

9447008F00Y7L
ref: 1-2

COWLING,UNDER,R(BLACK)

€ 148.50

9447208F00
ref: 2

SHIELD,COWLING UNDER,R NO.1

€ 9.00

3-1

9448108F0024K
ref: 3-1

COWLING,UNDER,L

€ 168.50

3-2

9448108F00Y7L
ref: 3-2

COWLING,UNDER,L

€ 168.50

0913905054
ref: 4

SCREW(5X16)

€ 6.00

9448424F00
ref: 5

NUT,COWL

€ 4.00

0913906087
ref: 6
09139-06126

SCREW(6X20)

€ 4.00

0932009016
ref: 7

CUSHION

€ 2.50

9457008F00
ref: 8

BRACKET,UNDER COWL,L & FRAME

€ 7.00

9447508F00
ref: 9

COWLING,UNDER CTR

€ 54.00

0354105123
ref: 10
03541-0512A

SCREW

€ 2.00
