STEERING STEM (MODEL K3)

GSX750F KATANA 2003 (K3) USA (E03)

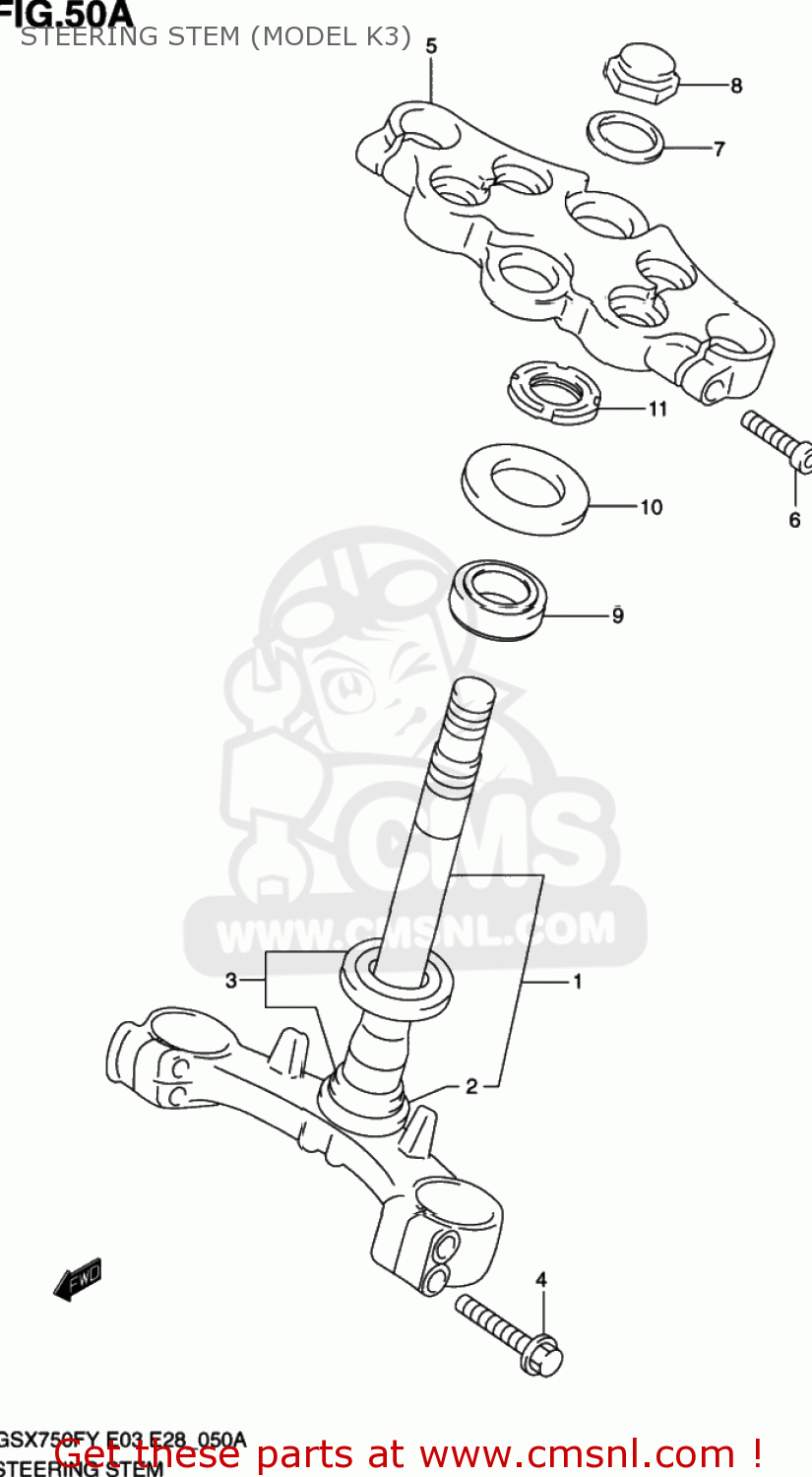

Steering stem (model k3) diagram GSX750F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

5141008F10
ref: 1

STEM,STEERING

€ 971.00

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

0926530020
ref: 3

BEARING(30X55X17)

€ 45.50

0155008403
ref: 4
01550-0840A

BOLT

€ 3.50

5131108FC0
ref: 5

HEAD,STEERING STEM

€ 280.50

0713008353
ref: 6
07130-0835B

BOLT

€ 4.00

5135624B01
ref: 7

WASHER(22.5X32X1.6)

€ 3.00

5135324B00
ref: 8

NUT,CAP

€ 21.50

0926525038
ref: 9

BEARING(25X47X15)

€ 49.00

5164340502
ref: 10

DUST SEAL,STEERING UPR

€ 8.00

5163128000
ref: 11

NUT,STEERING STEM(25X44X10)

€ 12.50
