FOOTREST (MODEL K1/K2/K3)

GSX750F KATANA 2003 (K3) USA (E03)

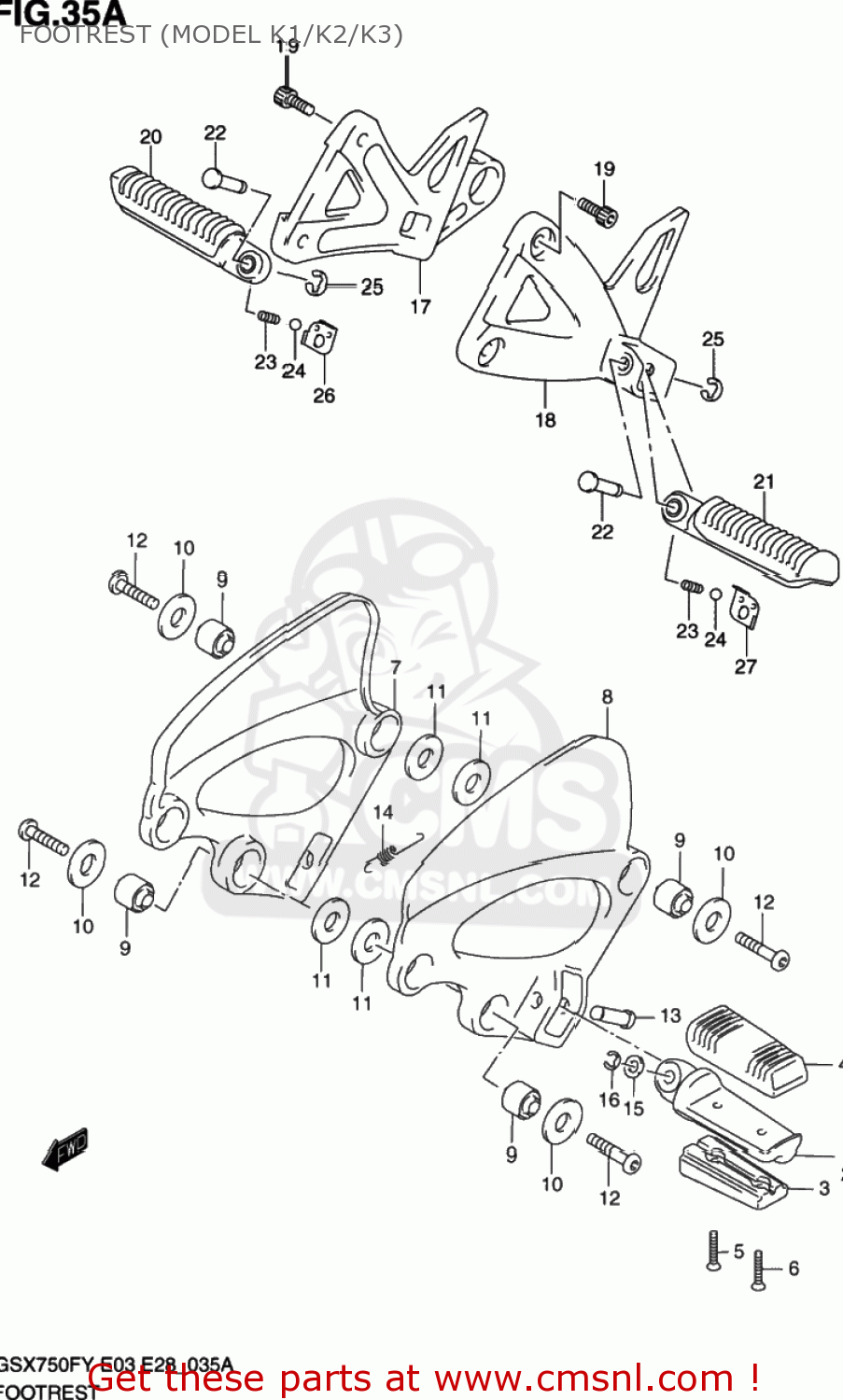

Footrest (model k1/k2/k3) diagram GSX750F KATANA 2003 (K3) USA (E03)

FOOTREST (MODEL K1/K2/K3) GSX750F KATANA 2003 (K3) USA (E03)

FOOTREST (MODEL K1/K2/K3) GSX750F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4351020C00
ref: 1

BAR,FR FOOTREST,R

€ 64.50

2

4352020C00
ref: 2

BAR,FR FOOTREST,L

€ 64.50

3

4353320C10
ref: 3

BAR,FR FOOTREST NO.2

€ 21.50

4

4355048B10
ref: 4

RUBBER,FR FOOTREST

€ 31.00

5

0212205353
ref: 5
02122-0535B

SCREW, INNER

€ 2.00

6

0212205303
ref: 6
02122-0530B

SCREW

€ 1.50

7

4351708FA0
ref: 7

HOLDER,FR FOOTREST,R

€ 71.50

8

4352708FA0
ref: 8

HOLDER,FR FOOTREST,L

€ 72.50

9

0931908045
ref: 9

BUSH(8.4X20X16)

€ 16.50

10

0916113004
ref: 10

WASHER(13.7X24X2)

€ 3.50

11

0916117002
ref: 11

WASHER(17.2X24X2.2)

€ 3.50

12

0910608147
ref: 12

BOLT(8X30)

€ 6.00

13

0920808010
ref: 13

PIN(8X33.2)

€ 3.00

14

0944310037
ref: 14

SPRING

€ 4.50

15

0832201083
ref: 15
08322-0108A

WASHER

€ 1.50

16

0833211063
ref: 16
08332-1106A

E.RING

€ 2.00

17

4381108F00
ref: 17

BRACKET,PILLION FOOTREST,R

€ 113.50

18

4382108F00
ref: 18

BRACKET,PILLION FOOTREST,L

€ 113.50

19

0910608150
ref: 19

BOLT(8X23)

€ 3.50

20

4361020C01
ref: 20

BAR,PILLION FOOTREST,R

€ 52.50

21

4371020C01
ref: 21

BAR,PILLION FOOTREST,L

€ 52.50

22

0920808011
ref: 22

PIN

€ 3.00

23

0944005005
ref: 23

SPRING

€ 1.50

24

0611107004
ref: 24

BALL

€ 1.50

25

0833211063
ref: 25
08332-1106A

E.RING

€ 2.00

26

4381623E00
ref: 26

PLATE,PILLION FOOTREST,R

€ 5.00

27

4382623E00
ref: 27

PLATE,PILLION FOOTREST,L

€ 5.00
