FRONT DAMPER (MODEL K3)

GSX750F KATANA 2003 (K3) USA (E03)

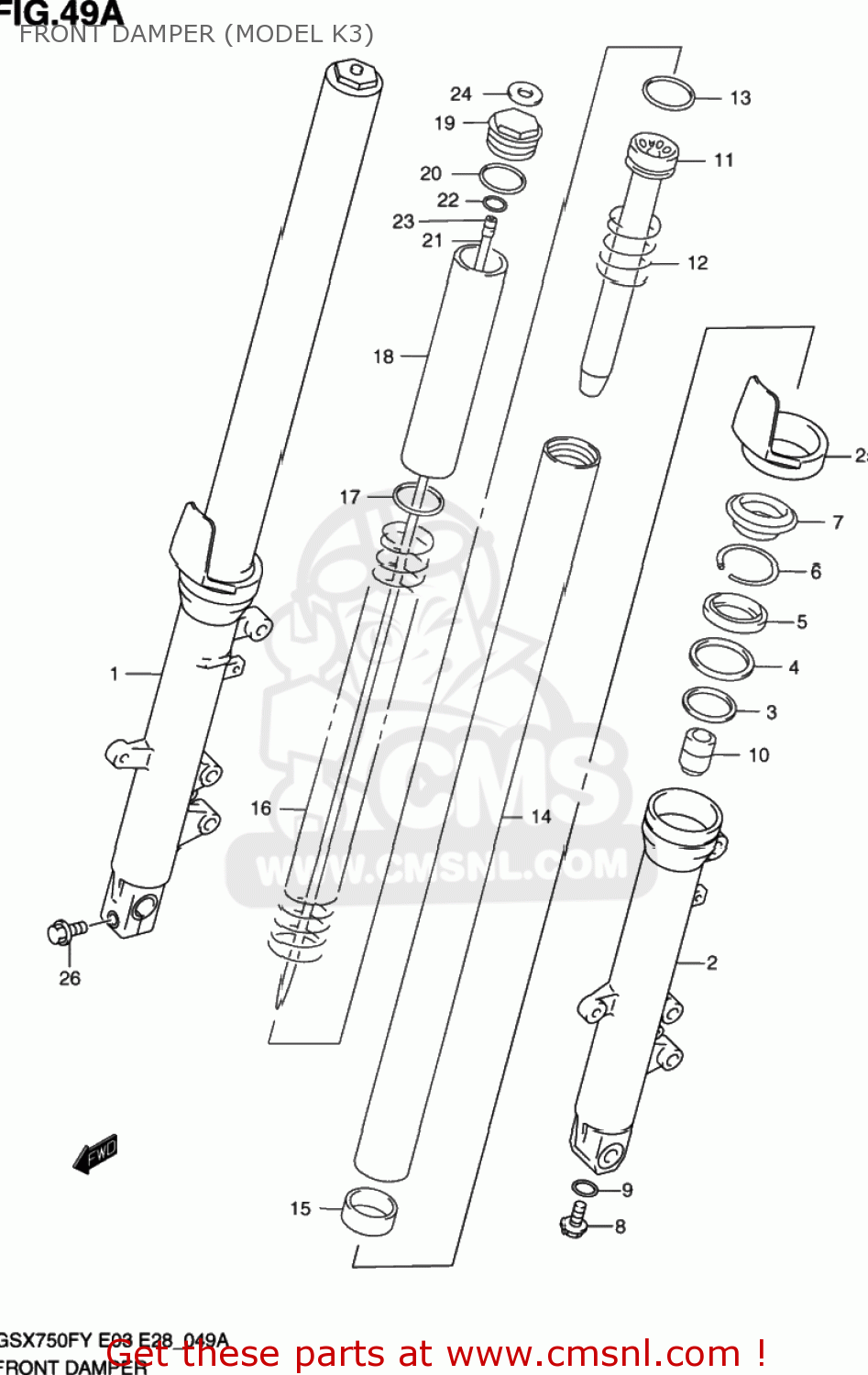

Front damper (model k3) diagram GSX750F KATANA 2003 (K3) USA (E03)

FRONT DAMPER (MODEL K3) GSX750F KATANA 2003 (K3) USA (E03)

FRONT DAMPER (MODEL K3) GSX750F KATANA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110308FC0
ref:

DAMPER ASSY,FR FORK,R

€ 787.50



5110408FC0
ref:

DAMPER ASSY,FR FORK,L

€ 888.50

1

5113008F10
ref: 1

TUBE,OUTER,R

€ 369.00

2

5114008F10
ref: 2

TUBE,OUTER,L

€ 373.00

3

5115211D60
ref: 3

BUSH,GUIDE

€ 12.00

4

5116838B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115308D00
ref: 5

SEAL,OIL

€ 15.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157147D50
ref: 7

SEAL,DUST

€ 18.00

8

5114748130
ref: 8

BOLT(8X27)

€ 3.50

9

5114836011
ref: 9

GASKET (NAS)

€ 4.00

10

5119510F00
ref: 10

PIECE,OIL LOCK

€ 18.50

11

5119408FA0
ref: 11

SEAT,UNDER

€ 85.00

12

5117748B31
ref: 12

SPRING,REBOUND

€ 12.00

13

5119612C00
ref: 13

RING,PISTON

€ 5.50

14

5111008FA0
ref: 14

TUBE,INNER

€ 402.50

15

5112148B31
ref: 15

BUSH,SLIDE

€ 15.50

16

5117108FA0
ref: 16

SPRING,FR

€ 68.50

17

5119219C00
ref: 17

JOINT,SPRING

€ 3.50

18

5117619C00
ref: 18

COLLAR,SPRING

€ 8.50

19

5135120C20
ref: 19

BOLT,FORK

€ 48.00

20

5111712C00
ref: 20

O RING

€ 3.00

21

5211108F00
ref: 21

ROD,DAMPER

€ 75.00

22

0928003002
ref: 22

O RING(D:1.9,ID:3.8)

€ 2.00

23

5116920C20
ref: 23

RING,STOPPER(ID:6.1,D:0.6)

€ 4.00

24

5114920C20
ref: 24

LABEL,S-H

€ 5.00

25

5120132F00
ref: 25

PROTECTOR

€ 17.00

26

0155008407
ref: 26

BOLT

€ 3.50
