FRAME COVER (GSX-R1000K4)

GSXR1000 2004 (K4) USA (E03)

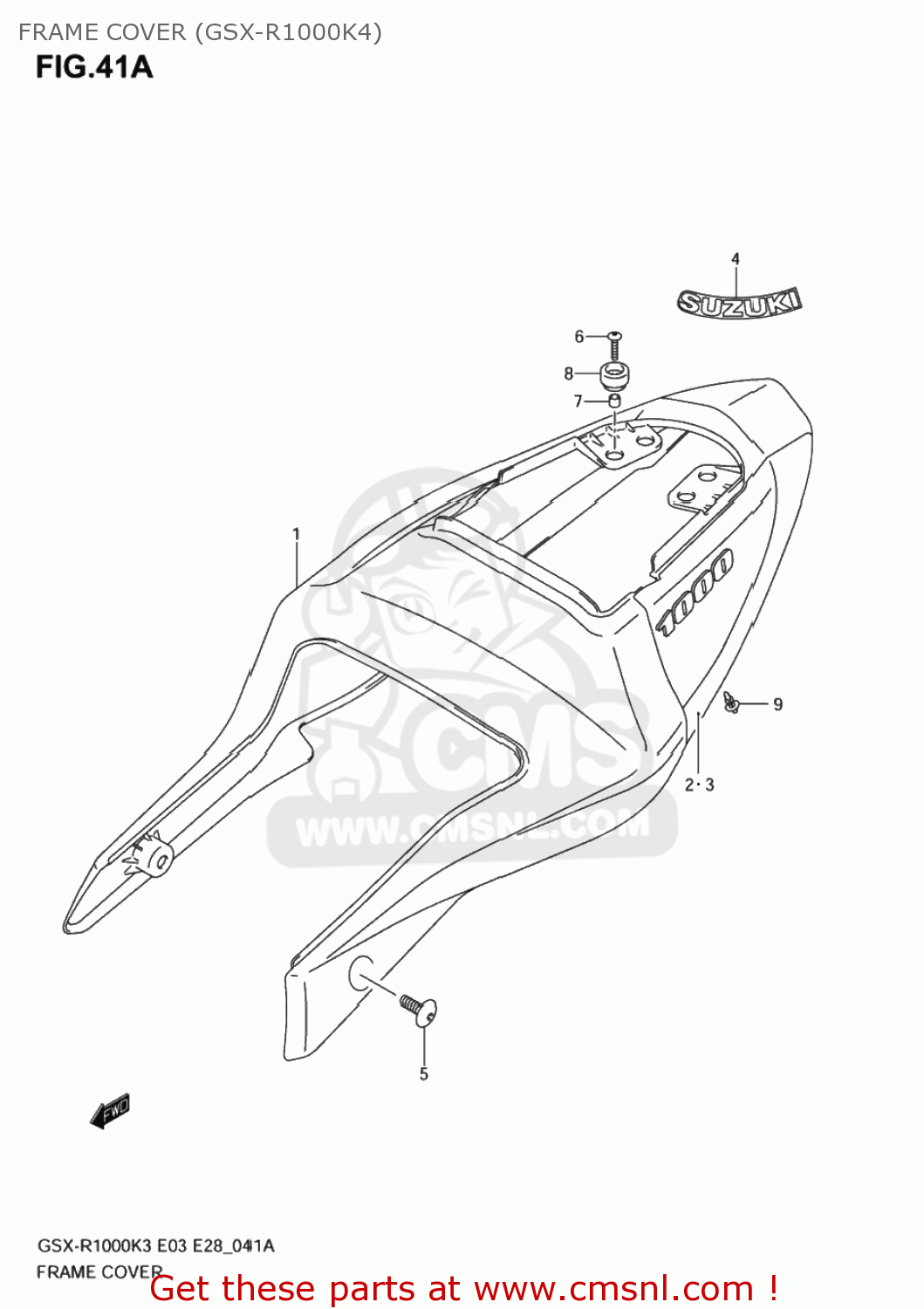

Frame cover (gsx-r1000k4) diagram GSXR1000 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4710018G20YBD
ref: 1-1

COVER ASSY,FRAME(WHITE)

€ 1,245.50

1-2

4710018G20YU9
ref: 1-2

COVER ASSY,FRAME(YELLOW)

€ 1,245.50

1-3

4710018G20019
ref: 1-3

COVER ASSY,FRAME(BLACK)

€ 487.50

2-1

6813518G20AKR
ref: 2-1

TAPE,FRAME COVER,R

€ 47.50

2-2

6813518G20AKS
ref: 2-2

TAPE,FRAME COVER,R

€ 38.00

2-3

6813518G20AKT
ref: 2-3

TAPE,FRAME COVER,R

€ 48.50

3-1

6814518G20AKR
ref: 3-1

TAPE,FRAME COVER,L

€ 39.50

3-2

6814518G20AKS
ref: 3-2

TAPE,FRAME COVER,L

€ 38.00

3-3

6814518G20AKT
ref: 3-3

TAPE,FRAME COVER,L

€ 49.50

4-1

6813118G20019
ref: 4-1

EMBLEM,SUZUKI

€ 10.50

4-2

6813118G20YD8
ref: 4-2

EMBLEM,SUZUKI

€ 8.00

0913906131
ref: 5

SCREW(6X16)

€ 4.00

0913906029
ref: 6

SCREW(6X25)

€ 5.00

0918006286
ref: 7

SPACER(6.5X10X9.4)

€ 2.50

0932010045
ref: 8

CUSHION

€ 3.50

09409063145PK
ref: 9

CLIP(BLACK)

€ 3.50
