SEAT

GSXR1000 2004 (K4) USA (E03)

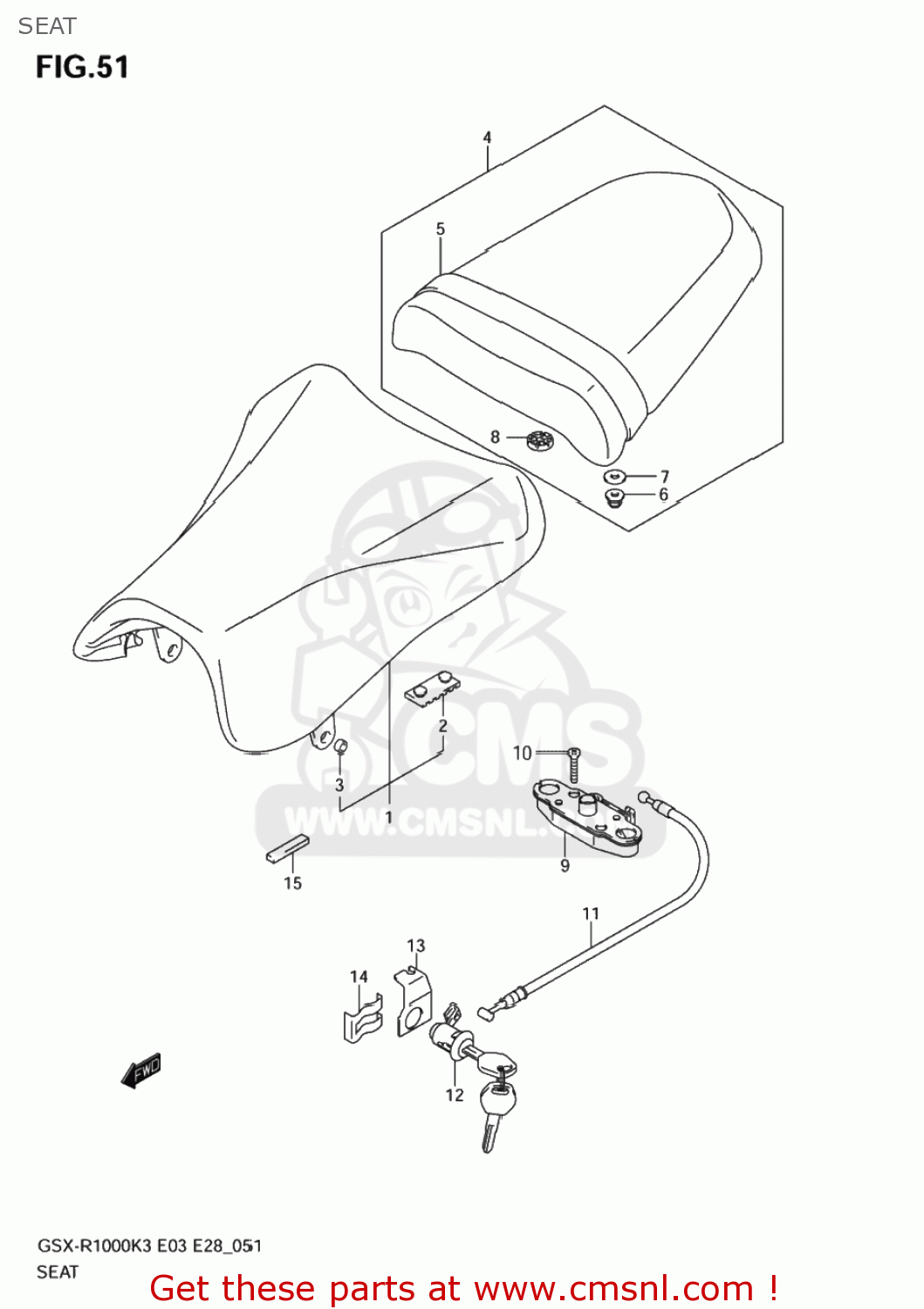

Seat diagram GSXR1000 2004 (K4) USA (E03)

SEAT GSXR1000 2004 (K4) USA (E03)

SEAT GSXR1000 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510018G006BY
ref: 1

SEAT ASSY

€ 210.00

2

4514912C00
ref: 2

CUSHION,SEAT(40X20X6)

€ 3.00

3

4511233E00
ref: 3

SPACER,SEAT(6.5X10.5X6)

€ 3.50

4

4530018G006BY
ref: 4

SEAT ASSY,PILLION

€ 159.00

5

4518018G006BY
ref: 5

BAND,SEAT

€ 26.50

6

0831931063
ref: 6
08319-3106A

NUT

€ 2.50

7

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

8

4521331300
ref: 8

CUSHION

€ 1.50

9

4522020A01
ref: 9
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

10

0212206303
ref: 10
02122-0630B

SCREW

€ 2.00

11

4528018G00
ref: 11

CABLE,SEAT LOC

€ 15.00

12

9570014810
ref: 12

LOCK SET,SEAT

€ 75.50

13

4528814F00
ref: 13

GUIDE,SEAT LOCK CABLE

€ 3.00

14

4528911F00
ref: 14

PLATE,SEAT LOCK ASSY

€ 3.00

15

4514818G00
ref: 15

CUSHION

€ 5.00
