SEAT TAIL BOX (MODEL K3)

GSXR1000 2004 (K4) USA (E03)

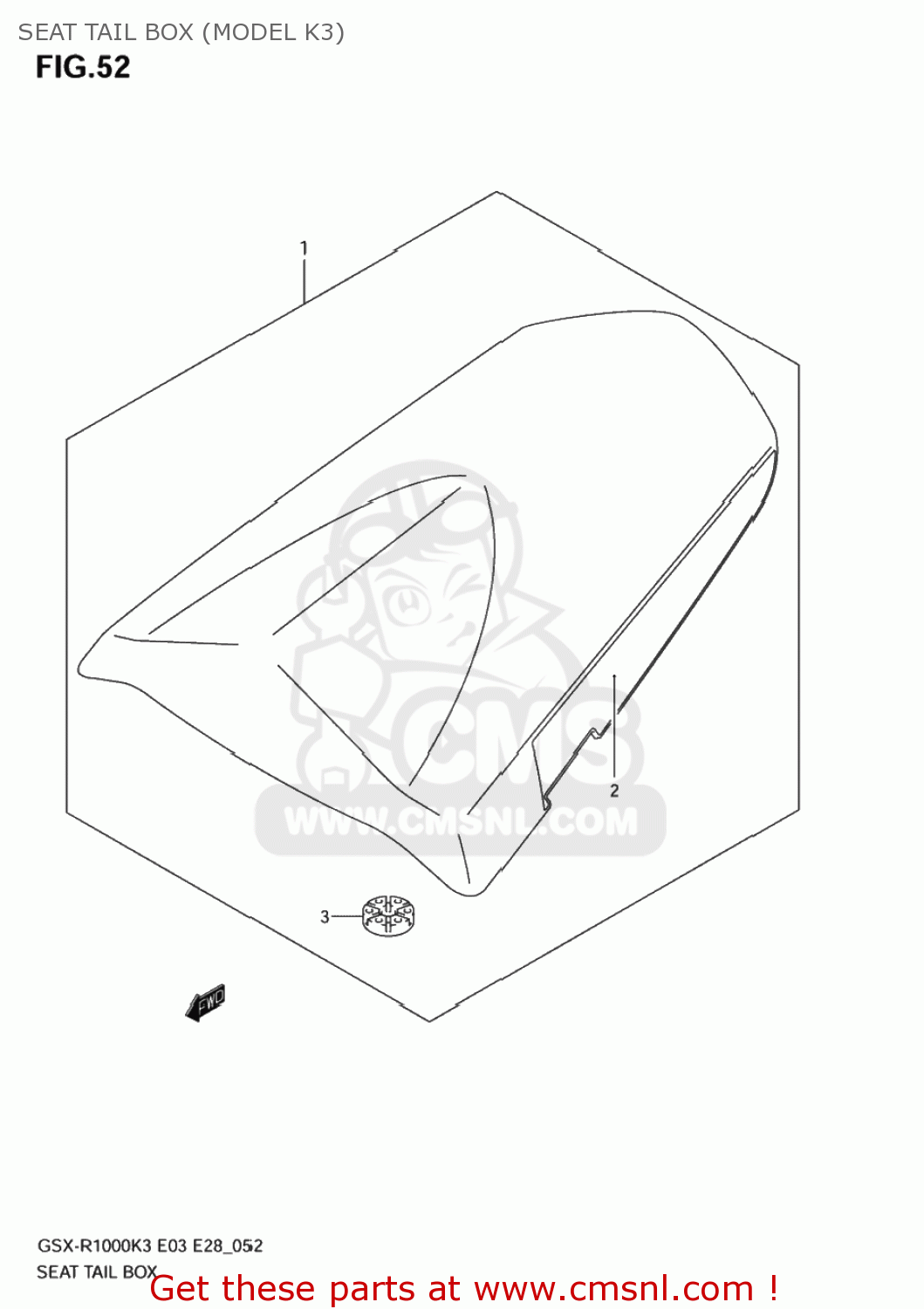

Seat tail box (model k3) diagram GSXR1000 2004 (K4) USA (E03)

SEAT TAIL BOX (MODEL K3) GSXR1000 2004 (K4) USA (E03)

SEAT TAIL BOX (MODEL K3) GSXR1000 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550018G00YBD
ref: 1-1

BOX ASSY,SEAT TAIL(WHITE)

€ 141.50

1-2

4550018G00YD8
ref: 1-2

BOX ASSY,SEAT TAIL(SILVER)

€ 128.00

1-3

4550018G00YAV
ref: 1-3

BOX ASSY,SEAT TAIL(ORANGE)

€ 128.00

2-1

6816018G00YU8
ref: 2-1

TAPE SET,BOX SEAT TAIL

€ 16.00

2-2

6816018G00YD8
ref: 2-2

TAPE SET,BOX SEAT TAIL

€ 14.00

3

4521331300
ref: 3

CUSHION

€ 1.50
