OIL COOLER

GSXR1000 2004 (K4) USA (E03)

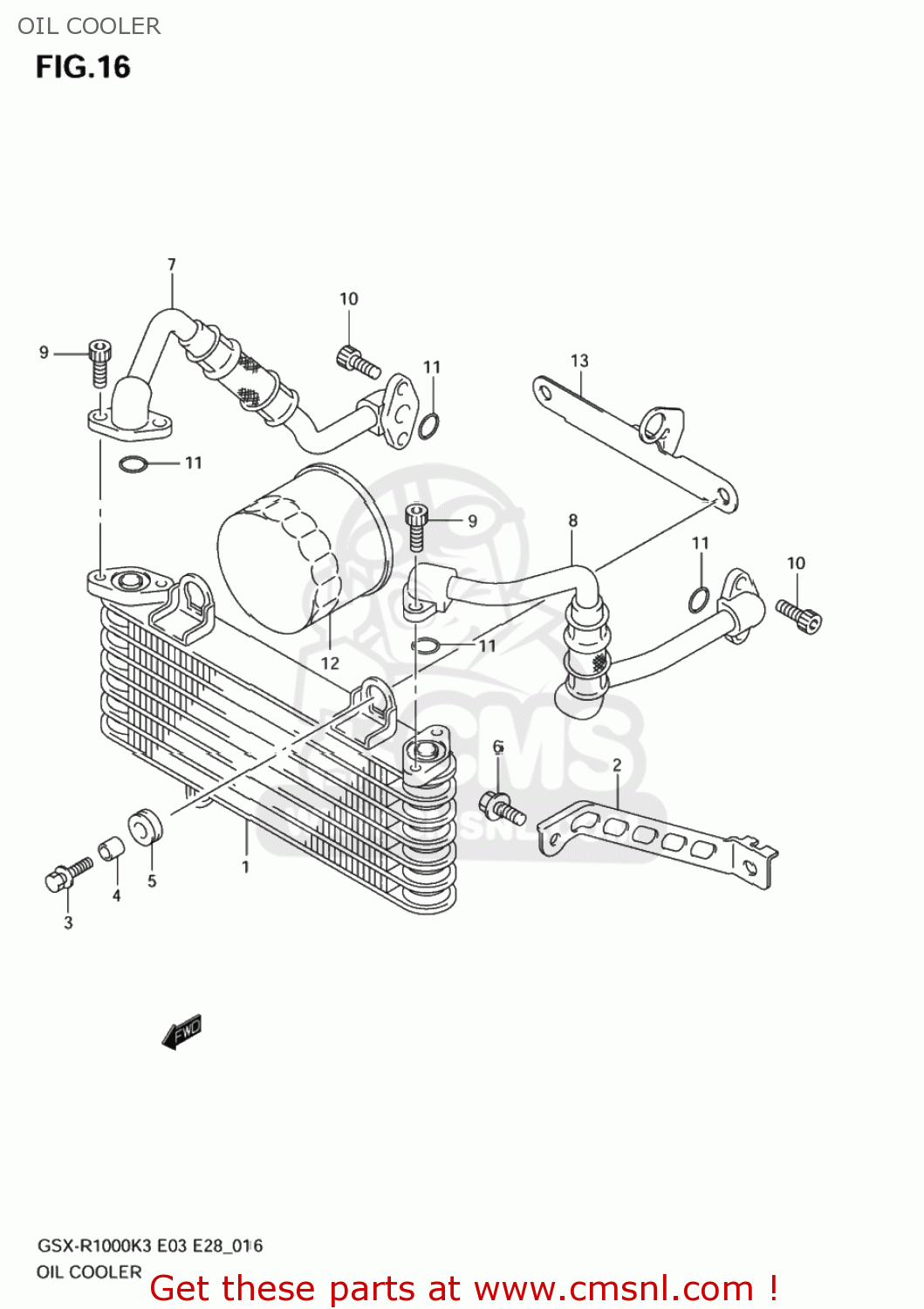

Oil cooler diagram GSXR1000 2004 (K4) USA (E03)

OIL COOLER GSXR1000 2004 (K4) USA (E03)

OIL COOLER GSXR1000 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660040F10
ref: 1

COOLER ASSY,OIL

€ 450.00

2

1664040F00
ref: 2

BRACKET,OIL COOLER

€ 8.00

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4

0918006310
ref: 4

SPACER(6.5X10X10)

€ 2.00

5-1

0932010015
ref: 5-1

CUSHION

€ 2.50

5-2

0932009009
ref: 5-2

CUSHION

€ 5.00

6

0155006123
ref: 6
01550-0612A

BOLT

€ 2.50

7

1646040F10
ref: 7

HOSE,OIL COOLER,R

€ 179.50

8

1647040F10
ref: 8

HOSE,OIL COOLER,L

€ 112.50

9

0910606096
ref: 9

BOLT(6X20)

€ 4.00

10

0910606073
ref: 10

BOLT(6X16)

€ 2.50

11

0928012012
ref: 11

O RING(D:2.4,ID:11.8)

€ 5.00

12

1651003G00X07
ref: 12
16510-07J00

FILTER ASSY,EN

€ 12.50

13

1779018G00
ref: 13

BRACKET,RADIATOR SUPPORT

€ 15.50
