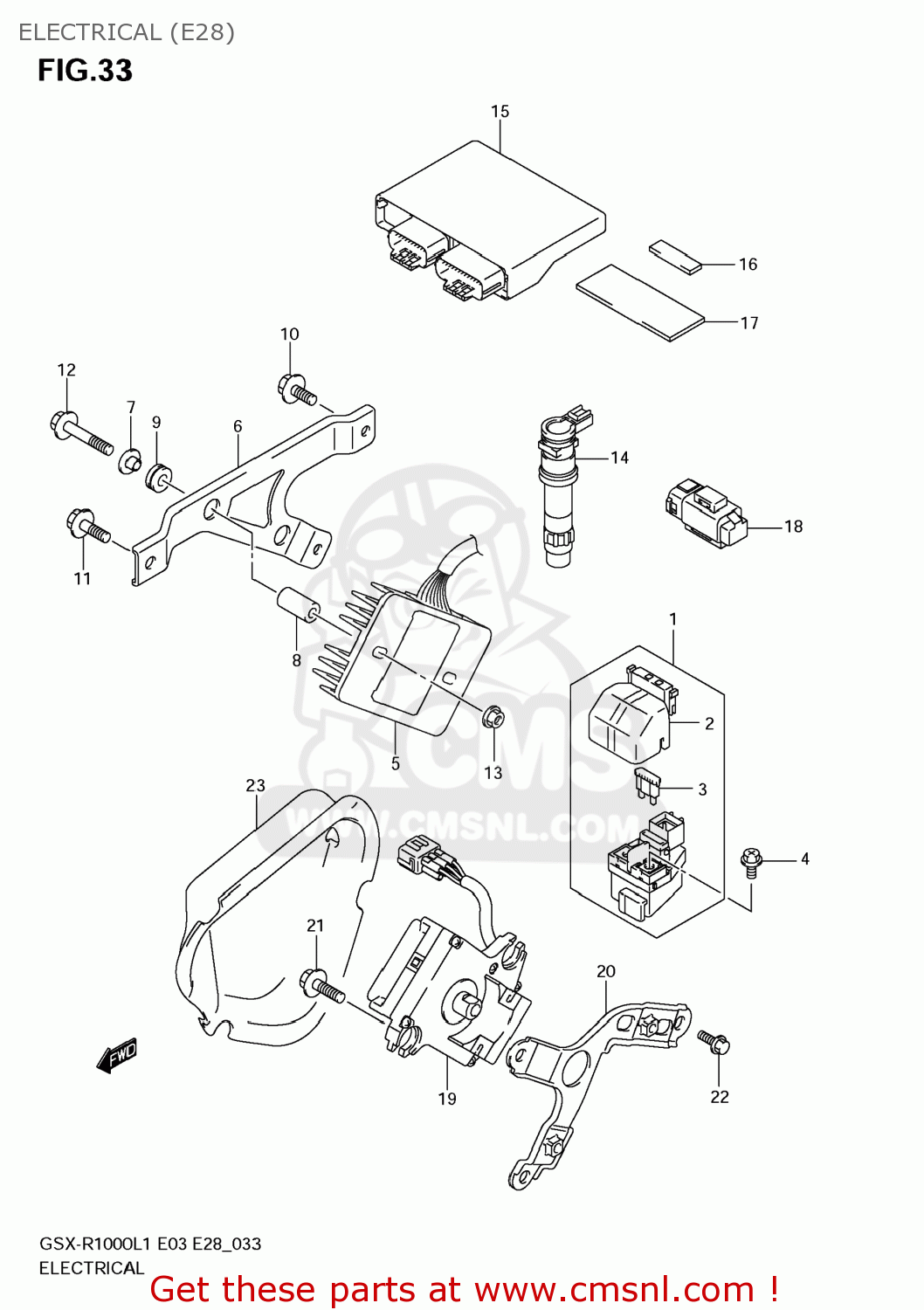

ELECTRICAL (E28)

ref

part #

description

quantity

1

3180041G10
ref: 1

RELAY ASSY,STARTING MOTOR

€ 103.00

2

3186138G00
ref: 2

COVER

€ 3.50

3

0948130501
ref: 3

FUSE(30A)

€ 0.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280047H00
ref: 5

RECTIFIER ASSY

€ 268.50

6

3283147H10
ref: 6

BRACKET,RECT FTG

€ 33.00

7

0918006325
ref: 7

SPACER(6.2X8.4X6.9)

€ 3.00

8

0918006345
ref: 8

SPACER(6.2X14.5X26)

€ 6.50

9

0932008066
ref: 9

CUSHION

€ 7.50

10

015500616A
ref: 10

BOLT

€ 2.50

11

015500620A
ref: 11

BOLT

€ 2.50

12

015500645A
ref: 12

BOLT

€ 2.50

13

083161006A
ref: 13

NUT

€ 2.50

14

3341047H00
ref: 14

COIL ASSY,IGNITION

€ 113.50

15

3292047H10
ref: 15

CONTROL UNIT,FI

€ 1,085.00

16

3365223H20
ref: 16

CUSHION,FI CONTROL UNIT

€ 2.50

17

3365207D00
ref: 17

PROTECTOR(80X80X2)

€ 4.50

18

3396027G00
ref: 18

SENSOR ASSY,FUEL CUT

€ 72.00

19

3397047H00
ref: 19
33970-47H01

ACTUATOR ASSY,

€ 254.00

20

3397147H00
ref: 20

HOLDER,ACTUATOR

€ 18.50

21

0911606202
ref: 21

BOLT(6X25)

€ 1.50

22

015470612A
ref: 22

BOLT

€ 2.00

23

3397747H00
ref: 23

COVER,ACTUATOR

€ 24.50

all assemblies
