THROTTLE BODY (E33)
GSXR1000 2011 (L1) USA (E03)

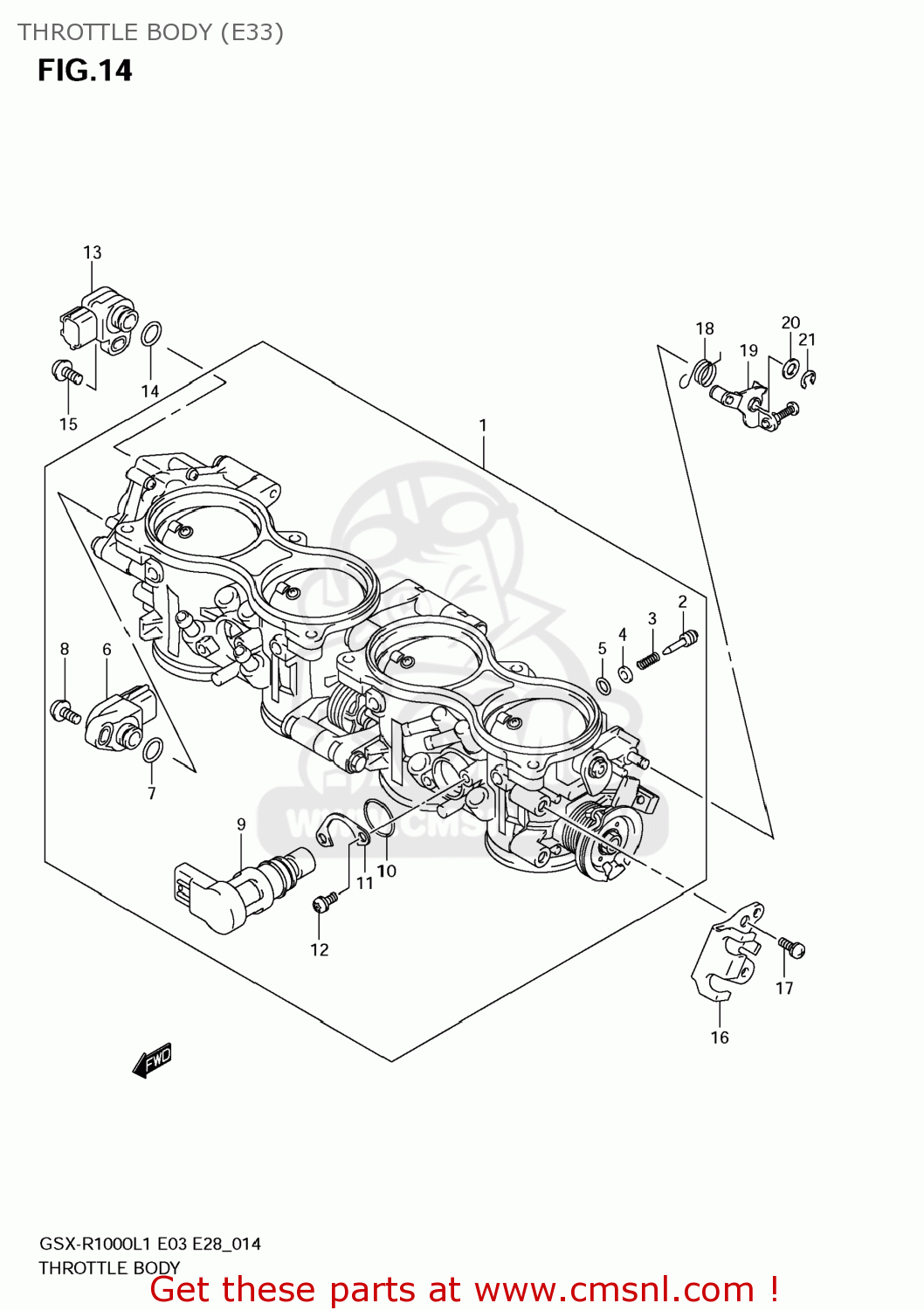

Throttle body (e33) diagram GSXR1000 2011 (L1) USA (E03)
THROTTLE BODY (E33) GSXR1000 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1340647H10
ref: 1
BODY ASSY,THROTTLE
€ 1,305.50
2
1326918G00
ref: 2
SCREW,AIR ADJUST
€ 7.50
3
1327143E00
ref: 3
SPRING
€ 4.00
4
1329126E00
ref: 4
WASHER
€ 3.00
5
1329526E00
ref: 5
O RING
€ 4.50
6
1358018G00
ref: 6
SENSOR ASSY,THROTTLE MAIN
€ 188.00
7
1357540F00
ref: 7
O RING
€ 3.50
8
1360540F00
ref: 8
SCREW
€ 3.00
9
1811715H11
ref: 9
VALVE ASSY,ISC
€ 233.00
10
1811905H00
ref: 10
O RING
€ 2.50
11
1342815H00
ref: 11
PLATE,ISC VALVE
€ 19.50
12
1360515H00
ref: 12
SCREW
€ 4.50
13
1358047H00
ref: 13
SENSOR ASSY,THROTTLE SUB
€ 227.50
14
1357540F00
ref: 14
O RING
€ 3.50
15
1360540F00
ref: 15
SCREW
€ 3.00
16
1356521H00
ref: 16
PLATE,STAY
€ 40.00
17
1360121H00
ref: 17
SCREW
€ 2.50
18
1342621H00
ref: 18
SPRING
€ 5.00
19
1342047H00
ref: 19
LEVER ASSY,LINK
€ 105.00
20
1342735F10
ref: 20
WASHER
€ 3.50
21
1342435F10
ref: 21
E CLIP
€ 3.00
