FUEL PUMP

GSXR1000 2011 (L1) USA (E03)

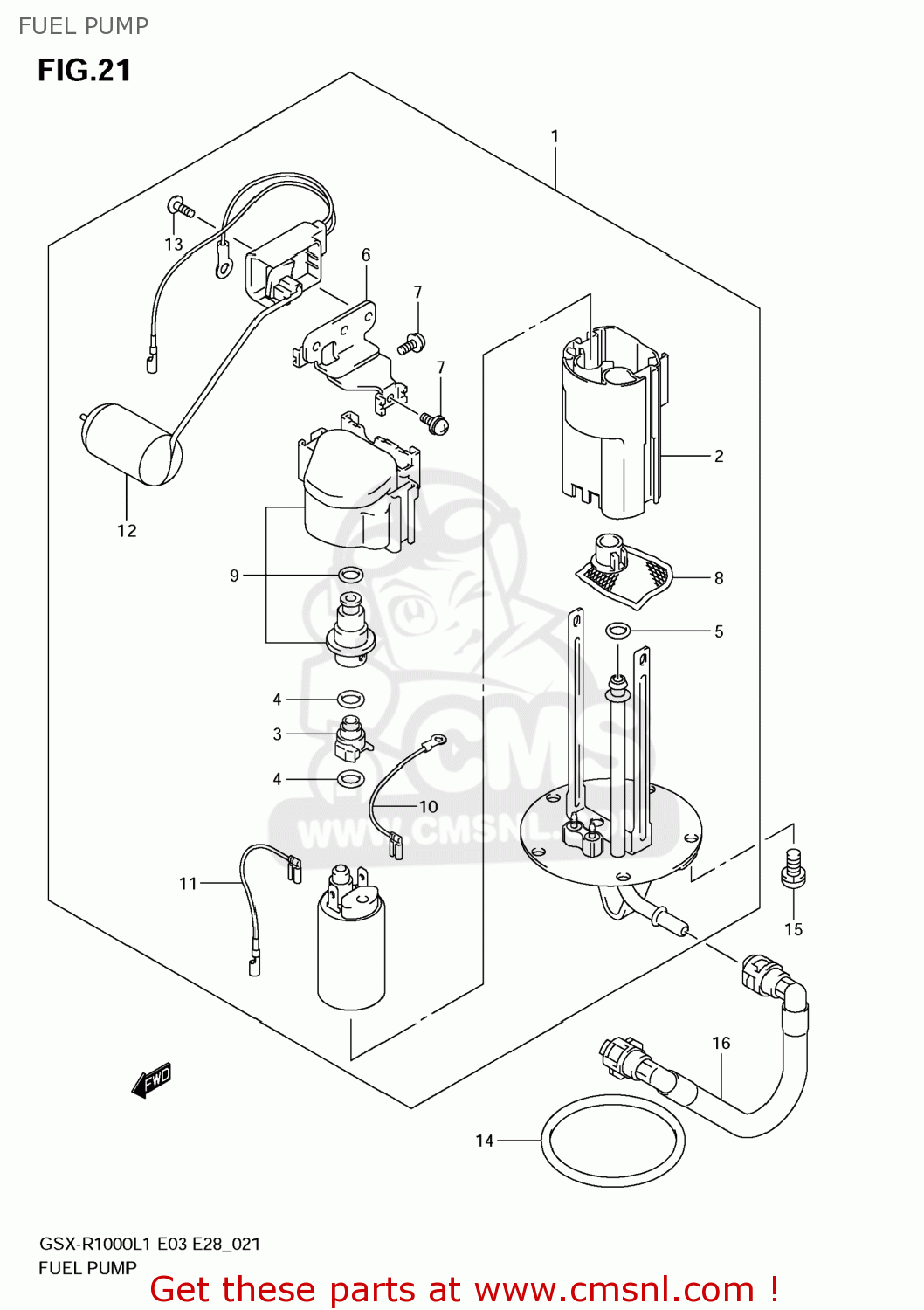

Fuel pump diagram GSXR1000 2011 (L1) USA (E03)

FUEL PUMP GSXR1000 2011 (L1) USA (E03)

FUEL PUMP GSXR1000 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510047H00
ref: 1

PUMP ASSY,FUEL

€ 823.00

2

1511127G00
ref: 2

CUP

€ 25.00

3

1511205H00
ref: 3

JOINT

€ 17.00

4

1511305H00
ref: 4

O RING

€ 17.00

5

1511335F00
ref: 5

O RING

€ 7.50

6

1518147H00
ref: 6

BRACKET

€ 24.50

7

1511610F00
ref: 7

SCREW

€ 3.50

8

1542005H00
ref: 8

STRAINER

€ 20.50

9

1561027G00
ref: 9

REGULATOR

€ 165.50

10

1511427G00
ref: 10

WIRE,EARTH

€ 21.00

11

1511527G00
ref: 11

WIRE,LEAD

€ 23.00

12

3481047H00
ref: 12

GAUGE ASSY,FUEL LEVEL SENDER

€ 112.50

13

1511644H00
ref: 13

SCREW

€ 4.50

14

1520135F00
ref: 14

O RING,FUEL PUMP

€ 26.00

15

071200612A
ref: 15

BOLT

€ 3.50

16

1581047H01
ref: 16

HOSE,FUEL

€ 67.50
