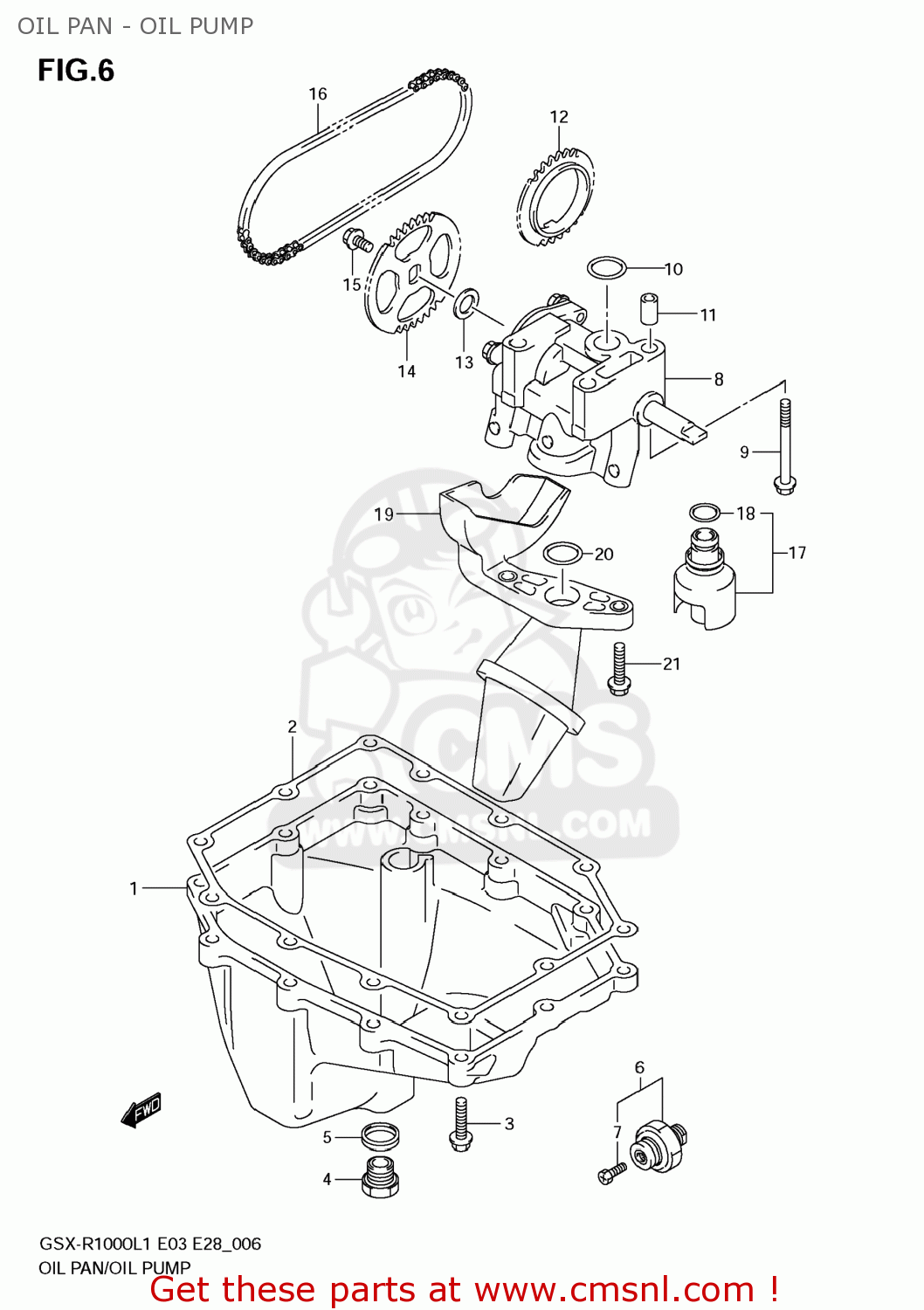

OIL PAN - OIL PUMP - GSXR1000 2011 (L1) USA (E03)

ref

part #

description

quantity

1

1151147H00
ref: 1

PAN,OIL

€ 229.00

2

1148947H00
ref: 2

GASKET,OIL PAN(ASB) (NAS)

€ 16.50

3

015470625A
ref: 3

BOLT

€ 2.50

4

0924714036
ref: 4

PLUG(14X20)

€ 5.50

5

0916814002
ref: 5
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

6

3782033D10
ref: 6

SWITCH ASSY,OIL PRESSURE

€ 29.00

7

3782233D00
ref: 7

BOLT,OIL PRESSURE SWITCH

€ 3.00

8

1640047H00
ref: 8

PUMP ASSY,ENGINE OIL

€ 228.50

9

015470650A
ref: 9

BOLT

€ 2.50

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0421109149
ref: 11

PIN

€ 2.00

12

1632101H00
ref: 12

SPROCKET,OIL PUMP DRIVE

€ 42.50

13

0918110158
ref: 13

SHIM(10X18X0.5)

€ 2.50

14

1633147H00
ref: 14

SPROCKET,OIL PUMP DRIVEN

€ 19.50

15

0910306285
ref: 15

BOLT(6X12)

€ 2.50

16

1631047H00
ref: 16

CHAIN,OIL PUMP DRIVE

€ 20.50

17

1644047H00
ref: 17

VALVE ASSY,OIL RELIEF

€ 59.50

18

0928013004
ref: 18

O RING(D:1.9,ID:13)

€ 2.50

19

1652047H00
ref: 19

STRAINER ASSY,ENGINE OIL

€ 27.50

20

0928019008
ref: 20

O RING(D:2.62,ID:20.3)

€ 5.50

21

015500620A
ref: 21

BOLT

€ 2.50
