RADIATOR

GSXR1000 2011 (L1) USA (E03)

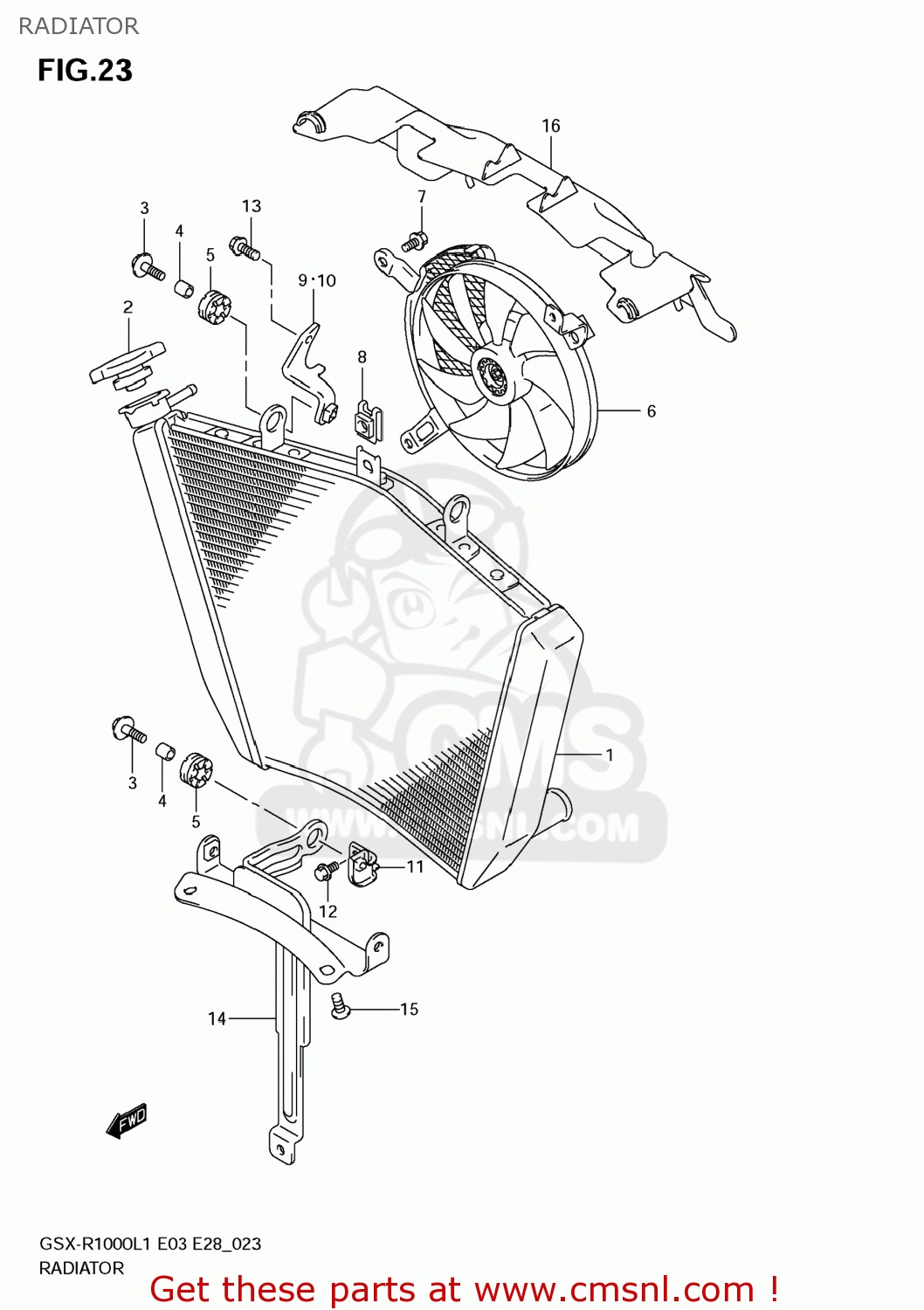

Radiator diagram GSXR1000 2011 (L1) USA (E03)

RADIATOR GSXR1000 2011 (L1) USA (E03)

RADIATOR GSXR1000 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771047H00
ref: 1

RADIATOR ASSY,WATER

€ 1,006.00

2

1773012C20
ref: 2
17730-08J00

CAP COMP,RADIATOR

€ 40.00

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5

0932010051
ref: 5

CUSHION

€ 3.50

6

1780047H00
ref: 6

FAN ASSY,RADIATOR

€ 745.50

7

1771140F00
ref: 7

BOLT,FAN ASSY

€ 3.50

8

1771240F00
ref: 8

NUT,FAN ASSY

€ 3.50

9

1774147H00
ref: 9

BRACKET,RADIATOR,R

€ 14.50

10

1774247H00
ref: 10

BRACKET,RADIATOR,L

€ 14.50

11

1775047H00
ref: 11

BRACKET,RDTR & OIL COOLER

€ 9.50

12

015500612A
ref: 12

BOLT

€ 2.50

13

015500616B
ref: 13

BOLT

€ 2.50

14

1779047H00
ref: 14

BRACKET,RADIATOR SUPPORT

€ 32.00

15

0910306307
ref: 15

BOLT(6X10)

€ 2.50

16

1777147H00
ref: 16

SHIELD,RADIATOR HEAT

€ 35.00
