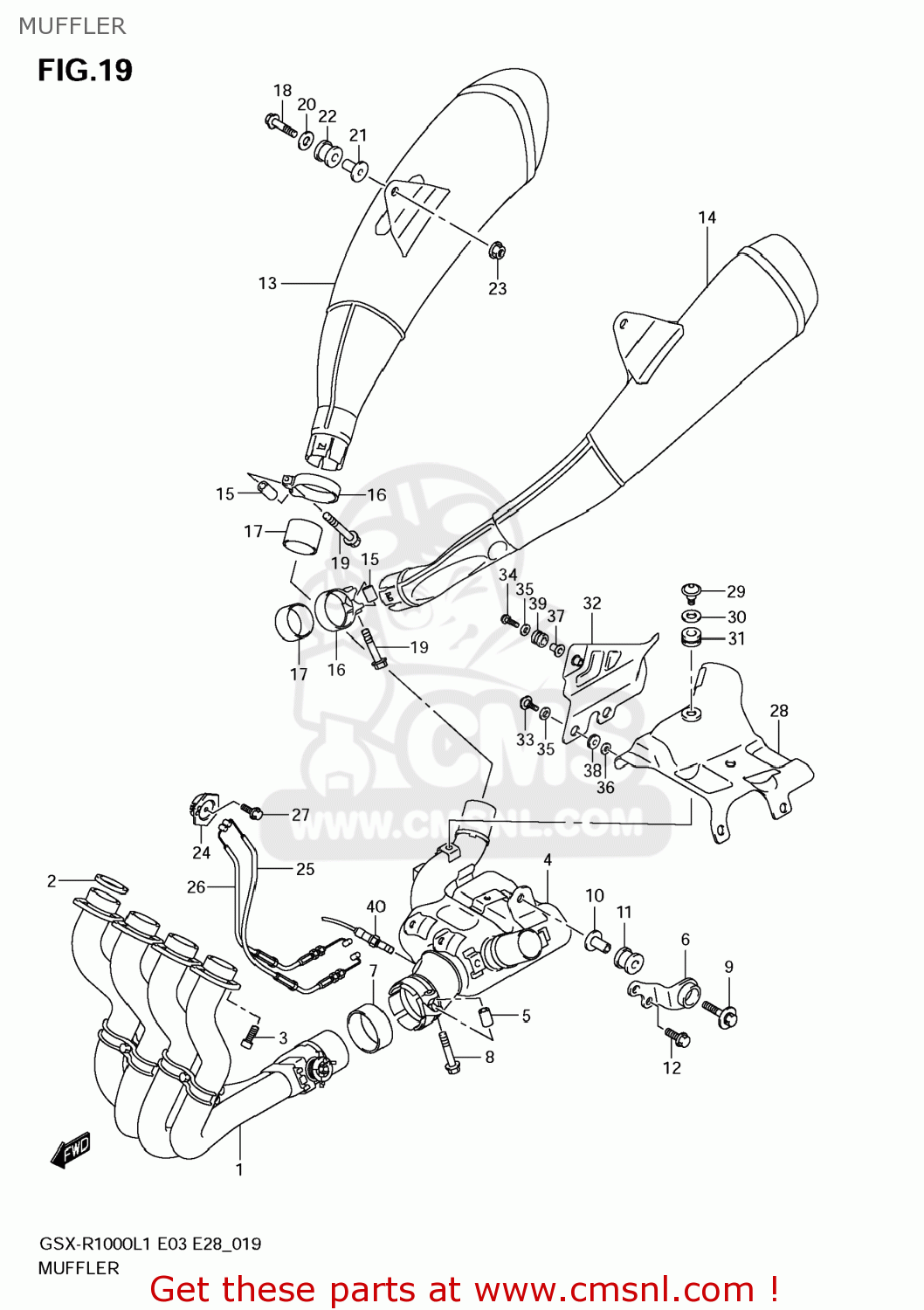

MUFFLER

ref

part #

description

quantity

1

1410047H00
ref: 1

PIPE,EXHAUST

€ 2,018.50

2

1418122D01
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 9.00

3

0910608165
ref: 3

BOLT(8X25)

€ 5.00

4

1420047H00
ref: 4

CHAMBER

€ 1,021.00

5

1445806H00
ref: 5

SPACER,MUFFLER

€ 3.00

6

1477047H00
ref: 6

BRACKET,CHAMBER SPRT

€ 21.50

7

1477121H00
ref: 7

CONNECTOR,CHAMBER

€ 18.50

8

0910308392
ref: 8

BOLT(8X40)

€ 4.00

9

0911808152A05
ref: 9

BOLT(8X45)

€ 5.00

10

0918008152
ref: 10

SPACER(8.6X12X24.2)

€ 6.00

11

0932012077
ref: 11

CUSHION

€ 6.50

12

015500816A
ref: 12

BOLT

€ 2.50

13

1431047H01H01
ref: 13
14310-47H02-H01

BODY,MUFFLER,R

€ 2,298.50

14

1434047H01H01
ref: 14

BODY.MUFFLER.L

€ 2,625.00

15

1445806H00
ref: 15

SPACER,MUFFLER

€ 3.00

16

1445921H30
ref: 16

CLAMP,MUFFLER CONNECTOR

€ 14.00

17

1477142F10
ref: 17

CONNECTOR,MUFFLER

€ 13.00

18

0910308358
ref: 18

BOLT(8X45)

€ 3.50

19

0910308392
ref: 19

BOLT(8X40)

€ 4.00

20

0916008142
ref: 20

WASHER(8.5X28X1.5)

€ 2.50

21

0918008152
ref: 21

SPACER(8.6X12X24.2)

€ 6.00

22

0932012077
ref: 22

CUSHION

€ 6.50

23

083612508A
ref: 23

NUT

€ 2.50

24

1126918G01
ref: 24

PULLEY,CONTROLLER

€ 17.00

25

1127647H00
ref: 25

CABLE,EXHAUST VALVE NO.1

€ 39.00

26

1127747H00
ref: 26

CABLE,EXHAUST VALVE NO.2

€ 39.00

27

015470516A
ref: 27

BOLT

€ 2.00

28

1473147H00
ref: 28

GUARD,CHAMBER HEAT NO.1

€ 98.50

29

0913906124
ref: 29

SCREW(6X12)

€ 3.00

30

0916008043
ref: 30

WASHER(8.5X18X1)

€ 1.50

31

0932008030
ref: 31

CUSHION

€ 3.00

32

1473247H00
ref: 32

GUARD,CHAMBER HEAT NO.2

€ 67.50

33

0913906028
ref: 33

SCREW(6X20)

€ 3.50

34

0913906029
ref: 34

SCREW(6X25)

€ 5.00

35

0916006094
ref: 35

WASHER(6.5X15X1.0)

€ 1.50

36

0916906040
ref: 36

WASHER

€ 2.00

37

0918006331
ref: 37

SPACER(6.2X8.4X10.9)

€ 2.50

38

0932008030
ref: 38

CUSHION

€ 3.00

39

0932009501
ref: 39

CUSHION

€ 2.00

40

1821318H10
ref: 40

SENSOR,OXYGEN

€ 336.00

all assemblies
