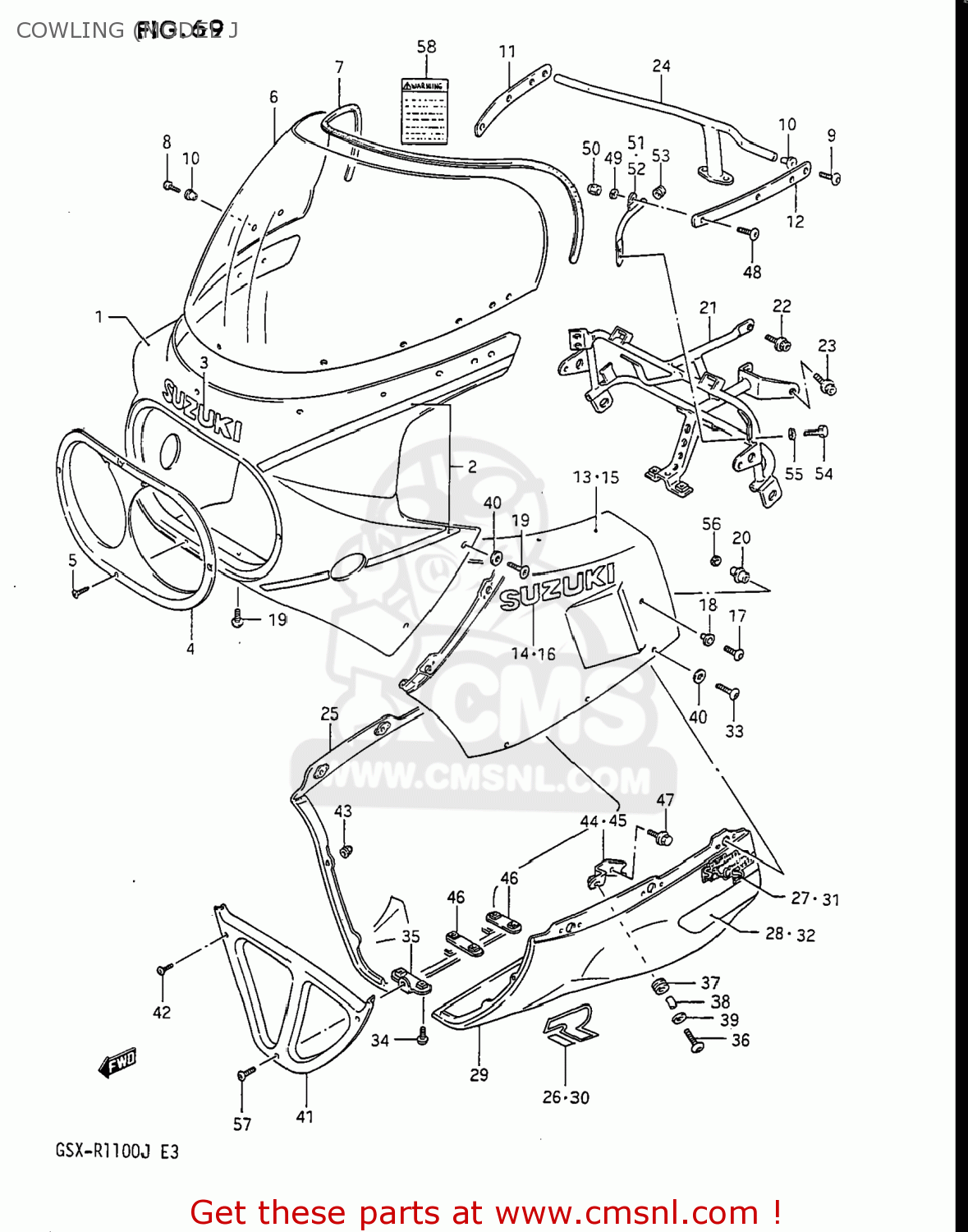

COWLING (MODEL J

ref

part #

description

quantity

1

9440006B409HD
ref: 1
94400-06X01-9HD

BODY ASSEMBLY,COWLING

€ 723.50

1

9440006B409HD
ref: 1
94400-06X01-9HD

BODY ASSEMBLY,COWLING

€ 723.50

2

6818006B009HD
ref: 2

TAPE SET,COWLING,UPPER

€ 0.00

3

6827104A0022R
ref: 3
68271-04A10-22R

EMBLEM,COWLING,UPPER (W)

€ 12.00

4

9443527A0013Z
ref: 4
94435-27A00-291

COVER,COWLING,FRONT

€ 35.00

5

0354104125
ref: 5
03541-0412A

SCREW

€ 1.50

6

9461106B01
ref: 6
94611-27A01

WINDSCREEN

€ 457.50

7

9463127A00
ref: 7
94631-49300

MOLDING,SCREEN

€ 15.00

8

0913905025
ref: 8

SCREW(5X14)

€ 2.00

9

0913905032
ref: 9

SCREW(5X18)

€ 2.50

10

9461927A00
ref: 10
09159-05048

NUT,COWLING SCREEN

€ 6.50

11

9452927A00
ref: 11

PLATE,RR VIEW MIRROR,R

€ 6.00

12

9453927A00
ref: 12

PLATE,RR VIEW MIRROR,L

€ 4.50

13

9443006B509HD
ref: 13

COVER COMP,COWLING SIDE,RIGHT

€ 0.00

14

681124340022R
ref: 14

EMBLEM

€ 9.50

15

9444006B509HD
ref: 15

COVER COMP,COWLING SIDE,LEFT

€ 0.00

16

681124340022R
ref: 16

EMBLEM

€ 9.50

17

0913906027
ref: 17

SCREW(6X12)

€ 3.00

18

0916906033
ref: 18

WASHER

€ 1.50

19

0913906030
ref: 19

SCREW(6X16)

€ 3.50

20

9457004A00
ref: 20

CUSHION,COWLING

€ 12.50

21

9451006B00
ref: 21

BRACE,COWLING FR

€ 116.50

22

0712008205
ref: 22
07120-0820A

BOLT

€ 3.00

23

0712008165
ref: 23
07120-0816A

BOLT

€ 3.00

24

9453006B00
ref: 24

BRACE,COWLING BODY RR

€ 38.50

25

9447006B409HD
ref: 25

COVER COMP,COWLING,LOWER

€ 555.00

26

6819106B007JJ
ref: 26

EMBLEM,COWLING,UNDER

€ 15.50

27

6819206B002HD
ref: 27

EMBLEM,COWLING,UNDER

€ 9.50

28

6819506B002HD
ref: 28

TAPE,COWLING

€ 15.50

29

9448006B409HD
ref: 29

COVER COMP,COWLING,LOWER

€ 555.00

30

6819106B007JJ
ref: 30

EMBLEM,COWLING,UNDER

€ 15.50

31

6819206B002HD
ref: 31

EMBLEM,COWLING,UNDER

€ 9.50

32

6827506B002HD
ref: 32

TAPE

€ 18.50

33

0913906030
ref: 33

SCREW(6X16)

€ 3.50

34

0913906039
ref: 34

SCREW(6X16)

€ 2.50

35

9449006B00
ref: 35

BRACE,COWLING LWR COVER

€ 4.50

36

0913906028
ref: 36

SCREW(6X20)

€ 3.50

37

0932009016
ref: 37

CUSHION

€ 2.50

38

0918006152
ref: 38
09180-06262

SPACER

€ 3.00

39

0916006056
ref: 39

WASHER(6.5X18X1)

€ 2.00

40

0916107005
ref: 40
09161-07006

WASHER

€ 3.00

41

9447506B0113Z
ref: 41
94475-06B01-13L

COVER,COWLING,LOWER,FRONT

€ 121.50

42

0913905025
ref: 42

SCREW(5X14)

€ 2.00

43

0831626055
ref: 43
08316-2005A

NUT

€ 2.00

44

9458006B00
ref: 44

BRACE,COWLING LWR,R

€ 5.00

45

9459006B00
ref: 45

BRACE,COWLING LWR,L

€ 5.50

46

9449306B00
ref: 46

BRACE,COWLING LWR COVER RR

€ 4.00

47

0151706128
ref: 47
01550-06127

BOLT

€ 2.50

48

0913906030
ref: 48

SCREW(6X16)

€ 3.50

49

0832121064
ref: 49
08321-0106A

WASHER,LOCK

€ 2.00

50

0831311065
ref: 50
08313-1006A

NUT 6MM

€ 2.00

51

9455006B00
ref: 51

BRACE,MIRROR,R

€ 19.00

52

9456006B00
ref: 52

BRACE,MIRROR,L

€ 17.00

53

0925008008
ref: 53

PLUG(OD:12)

€ 3.50

54

0110706165
ref: 54
01500-0616A

BOLT 6X16

€ 2.00

55

0832121064
ref: 55
08321-0106A

WASHER,LOCK

€ 2.00

56

0832131064
ref: 56
08321-0106A

WASHER

€ 2.00

57

0913906030
ref: 57

SCREW(6X16)

€ 3.50

58

6861248B00
ref: 58
68922-14F00

LABEL (WARNING SCREEN)

€ 6.50

58

6861248B00
ref: 58
68922-14F00

LABEL (WARNING SCREEN)

€ 6.50
