CYLINDER HEAD COVER

GSXR1100 1986 (G) USA (E03)

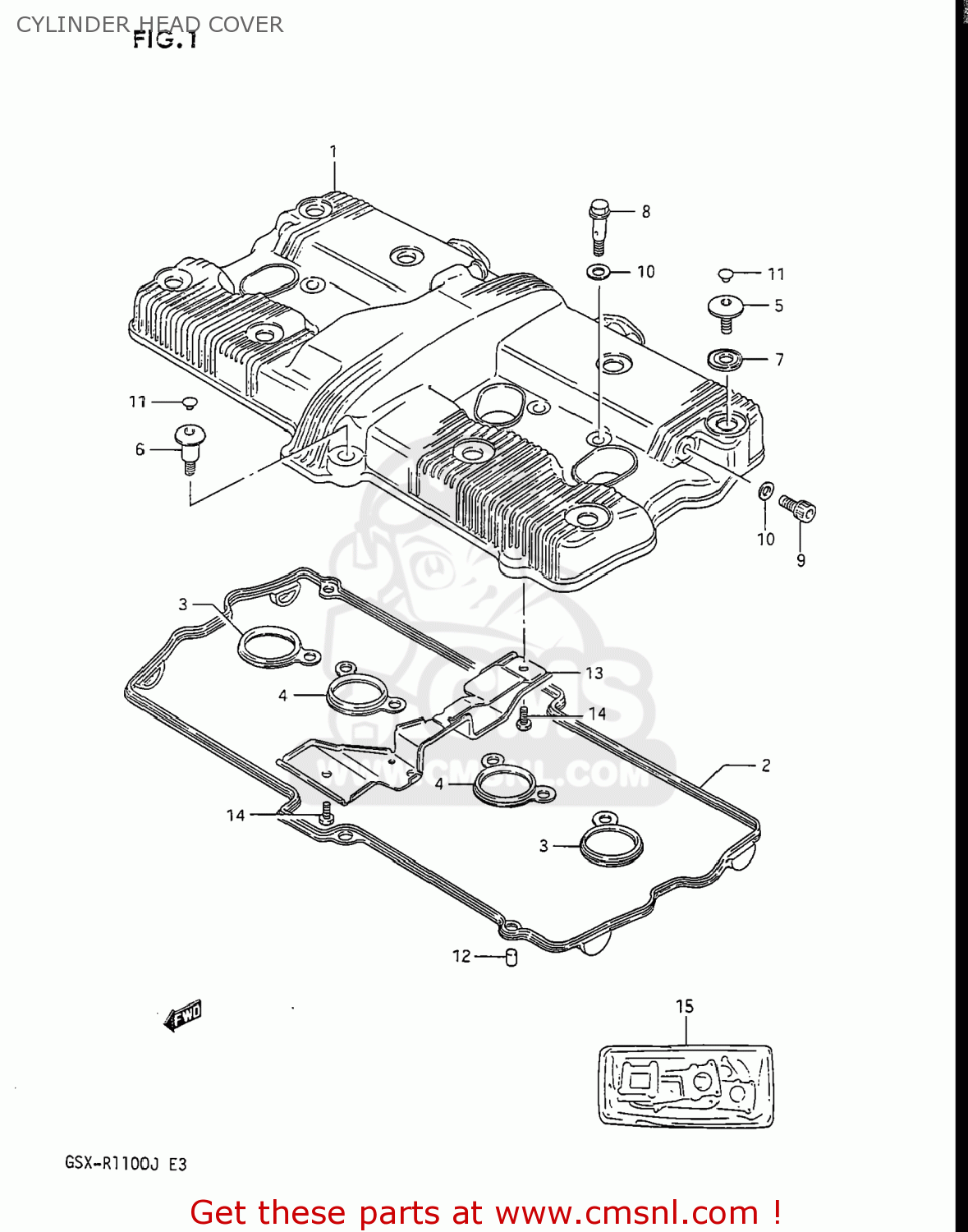

Cylinder head cover diagram GSXR1100 1986 (G) USA (E03)

CYLINDER HEAD COVER GSXR1100 1986 (G) USA (E03)

CYLINDER HEAD COVER GSXR1100 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117006B05
ref: 1

COVER,CYLINDER HEAD

€ 367.50

2

1117306B01
ref: 2
11173-06B03

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.50

3

1117827A00
ref: 3
11178-27A02

GASKET (NAS)

€ 5.50

4

1117927A01
ref: 4
11179-27A03

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

5

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

6

0910607010
ref: 6

BOLT(7X31)

€ 4.50

7

0916111006
ref: 7
09161-11008

WASHER

€ 4.50

8

0936008009
ref: 8
11180-27820

BOLT,UNION 8X35

€ 26.50

9

0711008125
ref: 9
07130-0812A

PLUG, HEAD COVER

€ 2.50

10

0916808008
ref: 10
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

11

0925006008
ref: 11

CAP(OD:10)

€ 3.00

12

0422108129
ref: 12

PIN

€ 2.00

13

1118006B00
ref: 13

COVER,BREATHER

€ 8.50

14

0110705127
ref: 14
01500-05127

BOLT 5X12

€ 2.00

15-1

1140006850
ref: 15-1
11400-06877

GASKET SET (MCA)

€ 292.50

15-2

1140006855
ref: 15-2
11400-06877

GASKET SET

€ 292.50
