FOOTREST
GSXR1100 1986 (G) USA (E03)

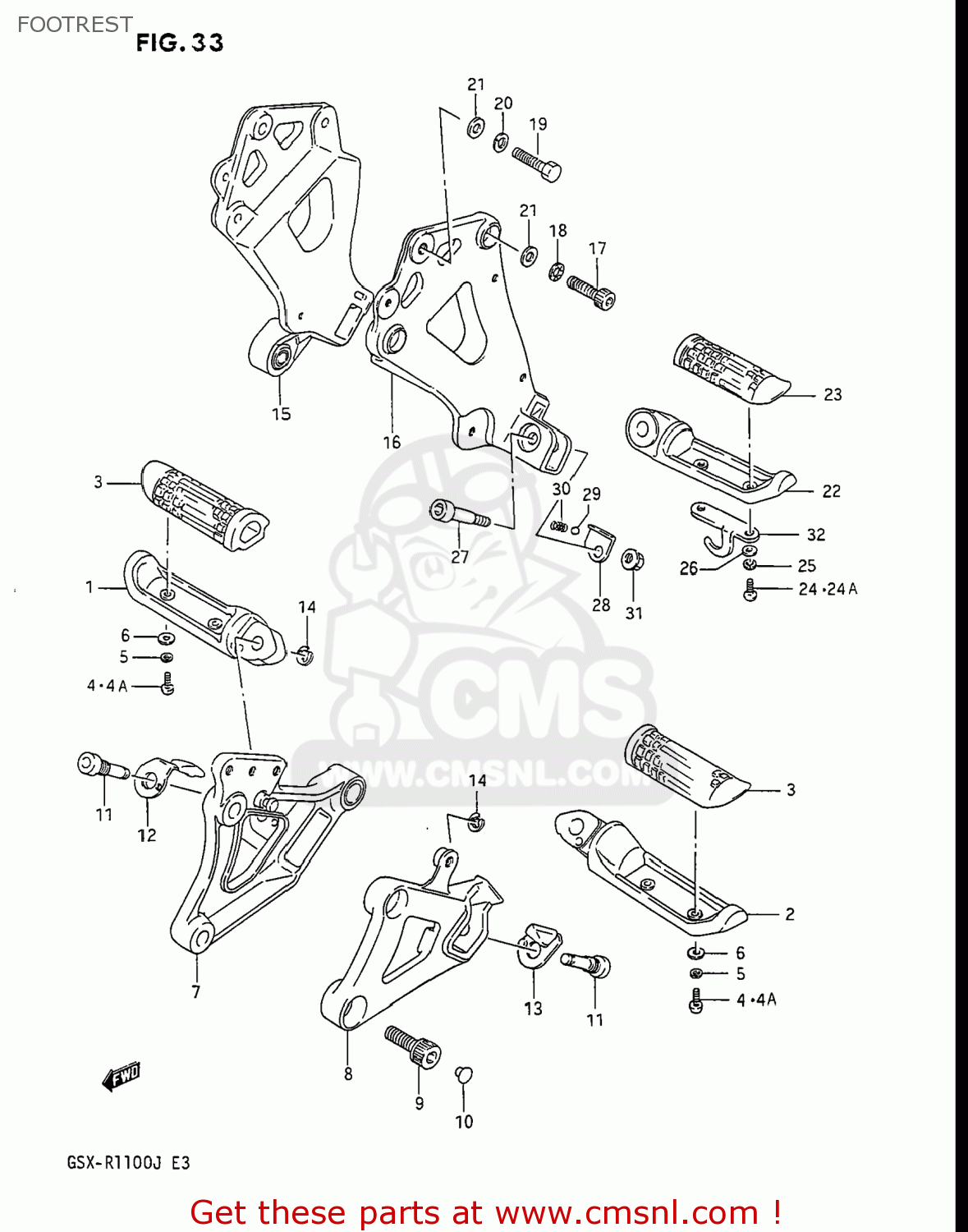

Footrest diagram GSXR1100 1986 (G) USA (E03)
FOOTREST GSXR1100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4350106B00
ref: 1
FOOTREST ASSY,FR,R
€ 86.00
2
4350206B00
ref: 2
FOOTREST ASSY,FR,L
€ 46.50
3
4355006B00
ref: 3
RUBBER ASSY,FR FOOTREST
€ 15.50
4
0211205208
ref: 4
02112-05207
SCREW 5X20
€ 3.00
4A
0211205168
ref: 4A
02112-05167
SCREW
€ 2.50
5
0832121057
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
0832221057
ref: 6
08322-01057
WASHER
€ 2.50
7
4351027A00
ref: 7
BRACKET,FOOTREST,R
€ 115.50
8
4352227A00
ref: 8
BRACKET,FOOTREST,L
€ 85.00
9
0711010258
ref: 9
07130-10257
BOLT
€ 3.00
10
4357534500
ref: 10
CAP
€ 1.50
11
4352927A00
ref: 11
BOLT,FR FOOTREST
€ 6.50
12
4358006B00
ref: 12
CUSHION,FR FOOTREST,R
€ 10.50
13
4359006B00
ref: 13
CUSHION,FR FOOTREST,L
€ 10.50
14
0833211068
ref: 14
08332-1106A
E RING 6MM
€ 2.00
15-1
4381027A00
ref: 15-1
43810-27A01
BRACKET
€ 100.50
15-2
4381027A01
ref: 15-2
BRACKET,PILLION FOOTREST
€ 100.50
16-1
4382127A00
ref: 16-1
43821-27A01
BRACKET
€ 71.50
16-2
4382127A01
ref: 16-2
BRACKET,PILLION FOOTREST
€ 71.50
17
0711006257
ref: 17
07130-06257
BOLT
€ 2.50
18
0916406009
ref: 18
09164-06013
WASHER
€ 2.50
19
0110706307
ref: 19
01500-06307
BOLT 6X30
€ 2.50
20
0832121067
ref: 20
08321-01067
WASHER,LOCK
€ 2.50
21
0832221067
ref: 21
08322-01067
WASHER
€ 2.00
22-1
4360106B00
ref: 22-1
FOOTREST ASSEMBLY,PILLION
€ 57.00
22-2
4360206B00
ref: 22-2
FOOTREST ASSY,PILLION,L
€ 52.00
23
4361006B00
ref: 23
RUBBER,PILLION FOOTREST
€ 16.00
24
0912505066
ref: 24
SCREW(5X25)
€ 2.00
24A
0211205205
ref: 24A
02112-0520B
SCREW 5X20
€ 2.50
25
0832121055
ref: 25
08321-0105A
WASHER,LOCK
€ 3.00
26
0832221055
ref: 26
08322-0105A
WASHER,5MM
€ 2.50
27
4364204A00
ref: 27
BOLT,PILLION FOOTREST
€ 4.50
28-1
4363504A00
ref: 28-1
43635-04A0V
PLATE,SPRING STOP,RIGHT
€ 9.50
28-2
4373504A00
ref: 28-2
PLATE,SPRING STOP LH
€ 4.00
29
0611207004
ref: 29
06111-07004
BALL
€ 1.50
30
0944005003
ref: 30
SPRING
€ 1.50
31
0831931065
ref: 31
08319-3106A
NUT
€ 2.50
32-1
4361906B00
ref: 32-1
43619-27A00
HOOK RH
€ 6.00
32-2
4362906B00
ref: 32-2
43619-27A00
HOOK,LH
€ 6.00
