FRONT MASTER CYLINDER

GSXR1100 1986 (G) USA (E03)

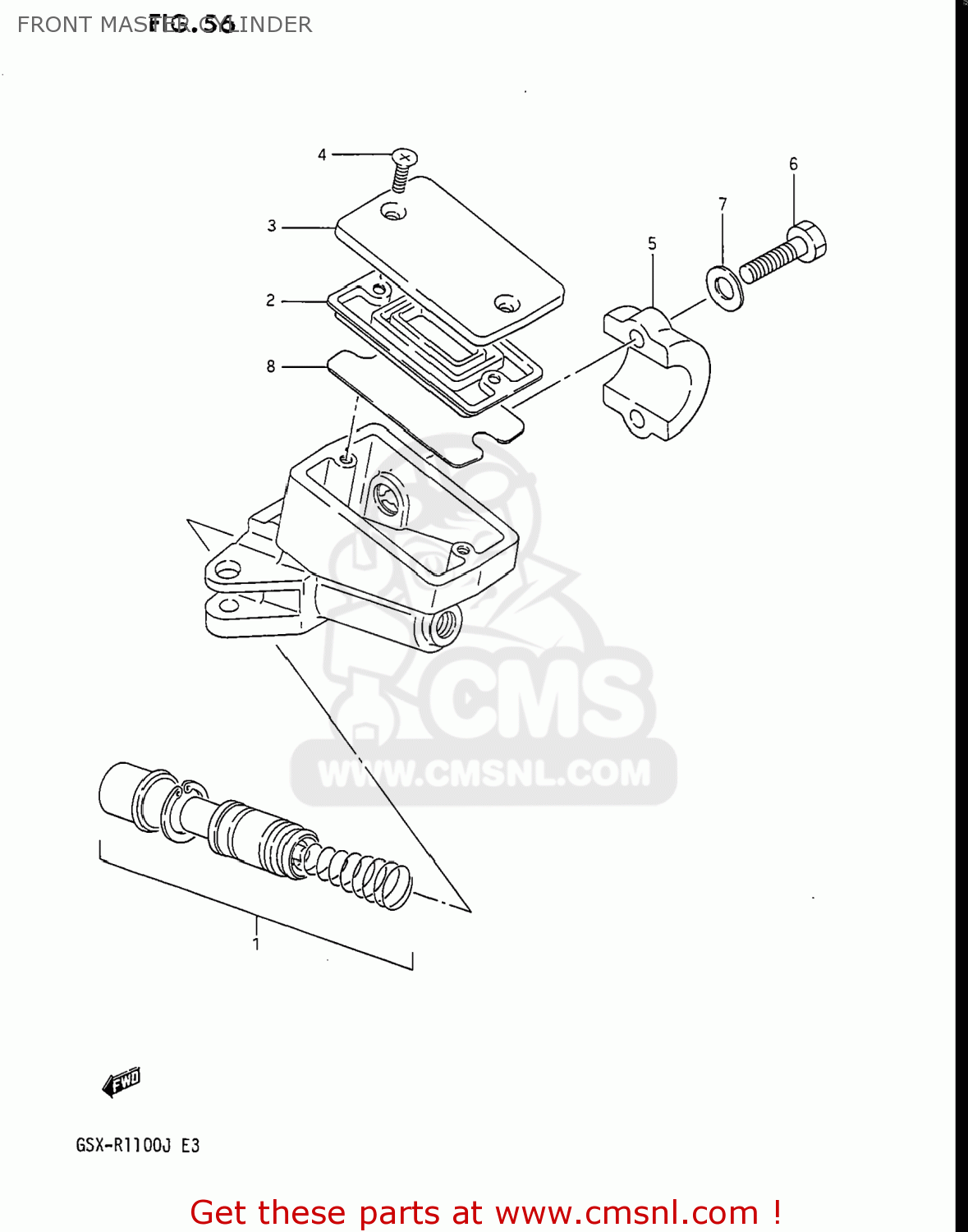

Front master cylinder diagram GSXR1100 1986 (G) USA (E03)

FRONT MASTER CYLINDER GSXR1100 1986 (G) USA (E03)

FRONT MASTER CYLINDER GSXR1100 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity



5960008A30
ref:
59600-08X50

CYLINDER ASSEMBLY,FRONT MASTER

€ 304.50

1

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

2

5966749460
ref: 2

5966749460

3

5966904A10
ref: 3
59669-41C00

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967116700
ref: 5
59671-19B00

HOLDER,MASTER CYLINDER

€ 18.50

6

0110706255
ref: 6
01500-0625A

BOLT

€ 2.50

7

0832221064
ref: 7
08322-0106B

WASHER

€ 2.00

8

5966405C00
ref: 8

FLOAT

€ 6.50
