STARTING MOTOR
GSXR1100 1986 (G) USA (E03)

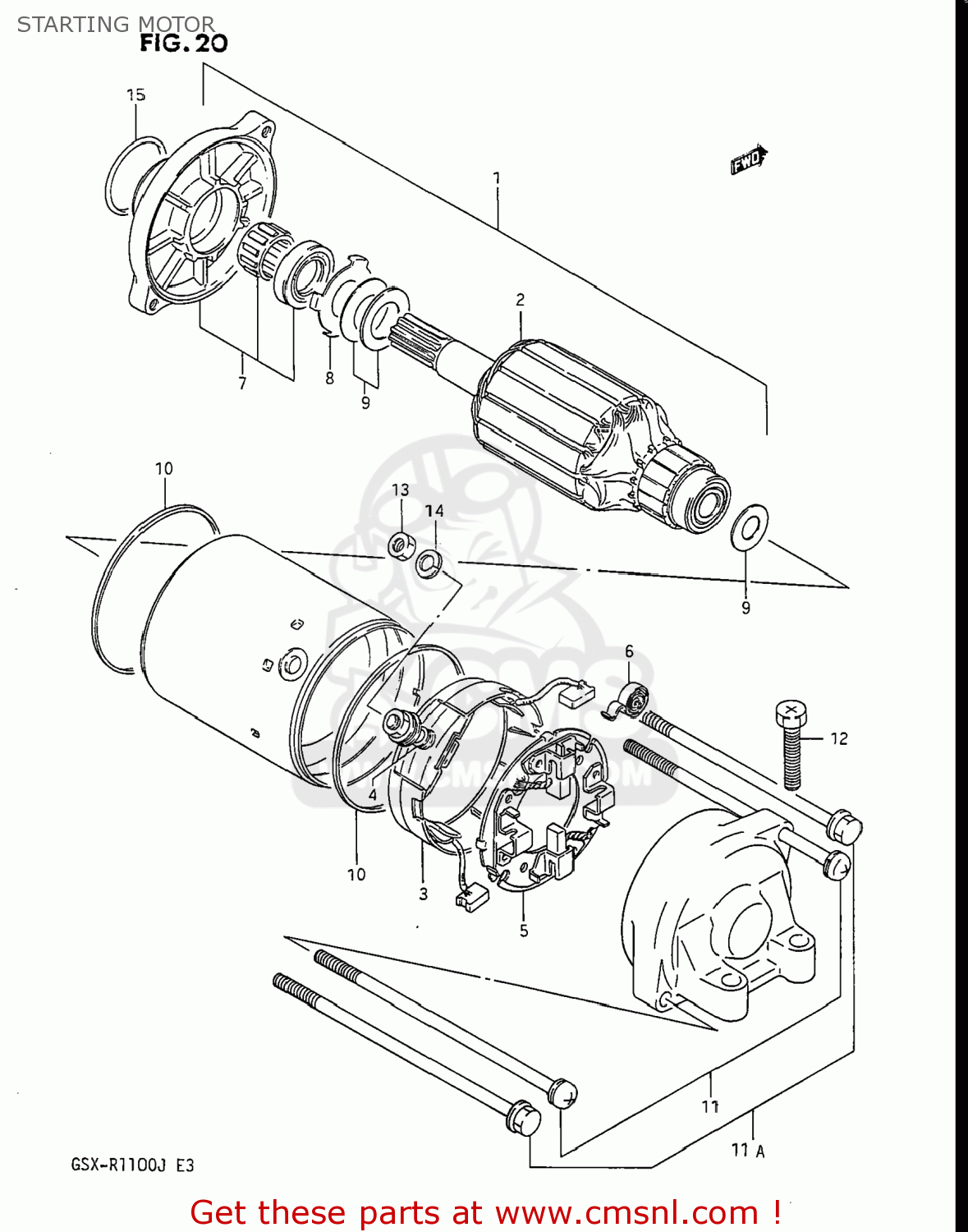

Starting motor diagram GSXR1100 1986 (G) USA (E03)
STARTING MOTOR GSXR1100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110006B00
ref: 1-1
31100-19C03
MOTOR ASSY,STARTING
€ 700.00
1-2
3110006B01
ref: 1-2
31100-19C03
MOTOR ASSEMBLY,STARTING
€ 700.00
1-3
3110006B02
ref: 1-3
31100-19C03
MOTOR ASSEMBLY,STARTING
€ 700.00
2
3131106B00
ref: 2
ARMATURE
€ 163.50
3
3113006B00
ref: 3
TERMINAL SET,BRUSH,PLUS
€ 54.00
4
3114349040
ref: 4
O RING
€ 3.00
5
3113206B00
ref: 5
HOLDER SET,BRUSH(-)
€ 35.50
6
3113549040
ref: 6
SPRING,BRUSH
€ 5.00
7
3115005A00
ref: 7
BRACKET SET,STARTING MOTOR
€ 70.00
8
3136019B00
ref: 8
31170-19B00
SHIM SET
€ 2.50
9
3136006B00
ref: 9
SHIM SET
€ 6.00
10
3126449040
ref: 10
SEAL,RING
€ 7.50
11
3128005A00
ref: 11
31280-06B00
BOLT
€ 10.50
11A
3128006B00
ref: 11A
BOLT SET
€ 10.50
12
0912806024
ref: 12
09103-06212
SCREW (6X25)
€ 2.50
13
0831011066
ref: 13
08310-0006A
NUT
€ 2.00
14
0832121066
ref: 14
08321-0106A
WASHER,LOCK
€ 2.00
15
0928024003
ref: 15
O RING(D:3,ID:24.5)
€ 2.00
