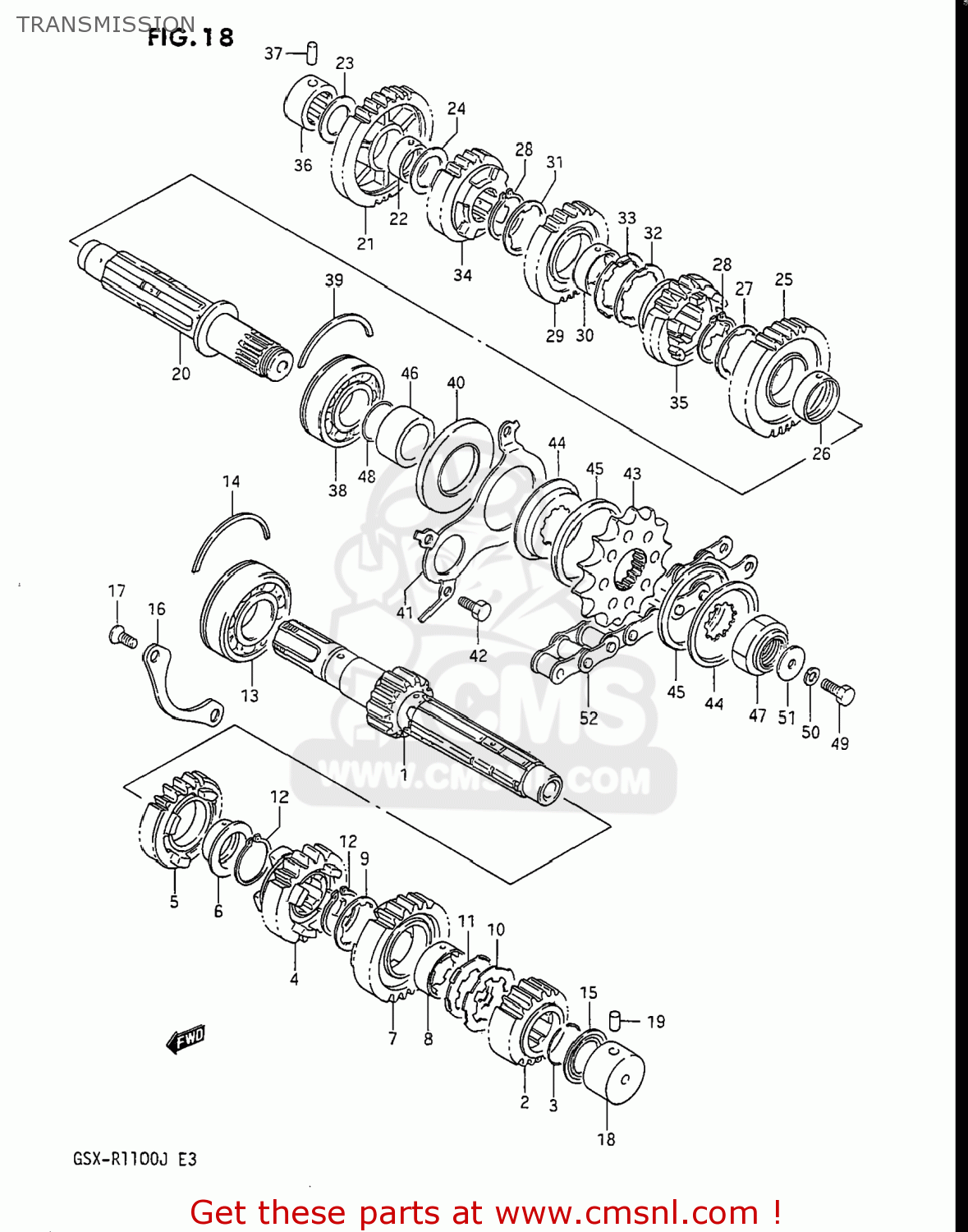

TRANSMISSION

ref

part #

description

quantity

1-1

2412106B01
ref: 1-1
24121-06B02

SHAFT,COUNTER

€ 180.50

1-2

2412106B02
ref: 1-2

SHAFT,COUNTER

€ 180.50

2

2422106B01
ref: 2

GEAR,SECOND DRIVE

€ 90.00

3

0938025006
ref: 3

RING,SNAP

€ 2.00

4-1

2423106B00
ref: 4-1
24231-48B10

GEAR,THIRD DRIVE

€ 174.50

4-2

2423106B01
ref: 4-2
24231-48B10

GEAR,THIRD DRIVE

€ 174.50

4-3

2423106B02
ref: 4-3
24231-48B10

GEAR,THIRD DRIVE

€ 174.50

5

2424106B00
ref: 5
24241-48B50

GEAR,FOURTH DRIVE

€ 162.00

6

0930125001
ref: 6
24322-19F00

BUSHING

€ 12.50

7

2425106B01
ref: 7

GEAR,FIFTH DRIVE

€ 115.50

8

2425238A00
ref: 8
24252-38A10

BUSHING

€ 10.50

9

0916725021
ref: 9

WASHER,LOCK

€ 3.00

10

0916725013
ref: 10

WASHER,LOCK

€ 2.50

11

0916925001
ref: 11

WASHER

€ 2.00

12

0938025003
ref: 12

RING,SNAP

€ 3.00

13

0926225051
ref: 13
09262-25105

BEARING(25X62X17)

€ 59.50

14

0939062006
ref: 14
09390-62012

C-RING

€ 5.00

15

0928520006
ref: 15

SEAL,OIL(20X31.2X2.7)

€ 7.00

16

2474127A00
ref: 16

RETAINER,CNTR SHAFT BEARING

€ 7.00

17

0212206167
ref: 17

SCREW

€ 2.00

18

0926320049
ref: 18

BEARING(20X34X17.5)

€ 58.00

19

0422107129
ref: 19

PIN

€ 1.50

20-1

2413106B03
ref: 20-1
24131-06B05

SHAFT,DRIVE

€ 226.00

20-2

2413106B05
ref: 20-2

SHAFT,DRIVE

€ 226.00

21

2431106B00
ref: 21
24311-48B20

GEAR,FIRST DRIVEN

€ 109.00

22

0930022005
ref: 22
24312-02F00

BUSHING

€ 19.50

23

0821120341
ref: 23

WASHER

€ 2.00

24

0821122341
ref: 24

WASHER

€ 3.00

25

2432106B01
ref: 25

GEAR,2ND DRIVEN

€ 131.50

26

0930028002
ref: 26

BUSH(28X32X11)

€ 15.50

27

0821128361
ref: 27

WASHER

€ 3.50

28

0833111289
ref: 28
08331-3128A

CIRCLIP

€ 2.50

29-1

2433106B01
ref: 29-1
24331-06B03

GEAR,THIRD DRIVEN

€ 113.00

29-2

2433106B02
ref: 29-2
24331-06B03

GEAR,THIRD DRIVEN

€ 113.00

29-3

2433106B03
ref: 29-3

GEAR,THIRD DRIVEN

€ 113.00

30

2433207A00
ref: 30

BUSH

€ 9.50

31

0916728001
ref: 31

WASHER,LOCK

€ 3.00

32

0916728002
ref: 32

WASHER,LOCK

€ 3.00

33

0916928001
ref: 33

WASHER

€ 3.00

34

2434106B01
ref: 34
24341-06B30

GEAR,FOURTH DRIVEN (NT:23)

€ 136.00

35

2435106B01
ref: 35

GEAR,5TH DRIVEN

€ 90.00

36

0926320040
ref: 36

BEARING(20X34X20)

€ 42.50

37

0422107209
ref: 37

PIN

€ 1.50

38

0926225095
ref: 38
09262-25103

BEARING

€ 76.50

39

0939062006
ref: 39
09390-62012

C-RING

€ 5.00

40

0928334005
ref: 40

SEAL,OIL(34X62X6)

€ 14.50

41

2475127A00
ref: 41
24751-27A01

RETAINER,DRIVESHAFT O

€ 8.00

42

0110706108
ref: 42
01500-06107

BOLT

€ 2.00

43-1

2751106B10
ref: 43-1
27511-06B12

SPROCKET,ENGINE

€ 25.00

43-2

2751106B12
ref: 43-2

SPROCKET,ENGINE(NT:14)

€ 25.00

44

2751631301
ref: 44
27516-19C00

HOLDER,SPROCKET DAMPER

€ 3.50

45

2751706B00
ref: 45

DAMPER,ENGINE SPROCKET

€ 14.50

46

0918025081
ref: 46
09180-25100

SPACER (25X34X18.1)

€ 23.50

47

0915920004
ref: 47

NUT

€ 12.00

48

0928025001
ref: 48

O RING(D:1,ID:24.5)

€ 2.50

49

0110706167
ref: 49
01500-06167

BOLT

€ 3.00

50

0832131067
ref: 50
08321-01067

WASHER,LOCK

€ 2.50

51

0821206222
ref: 51

WASHER

€ 1.50

52

2760006B11114
ref: 52
27600-46E20-116

CHAIN ASSEMBLY,DRIVE

€ 307.50
