CLUTCH (MODEL S/T/V/W)
GSXR1100W 1993 (P) USA (E03)

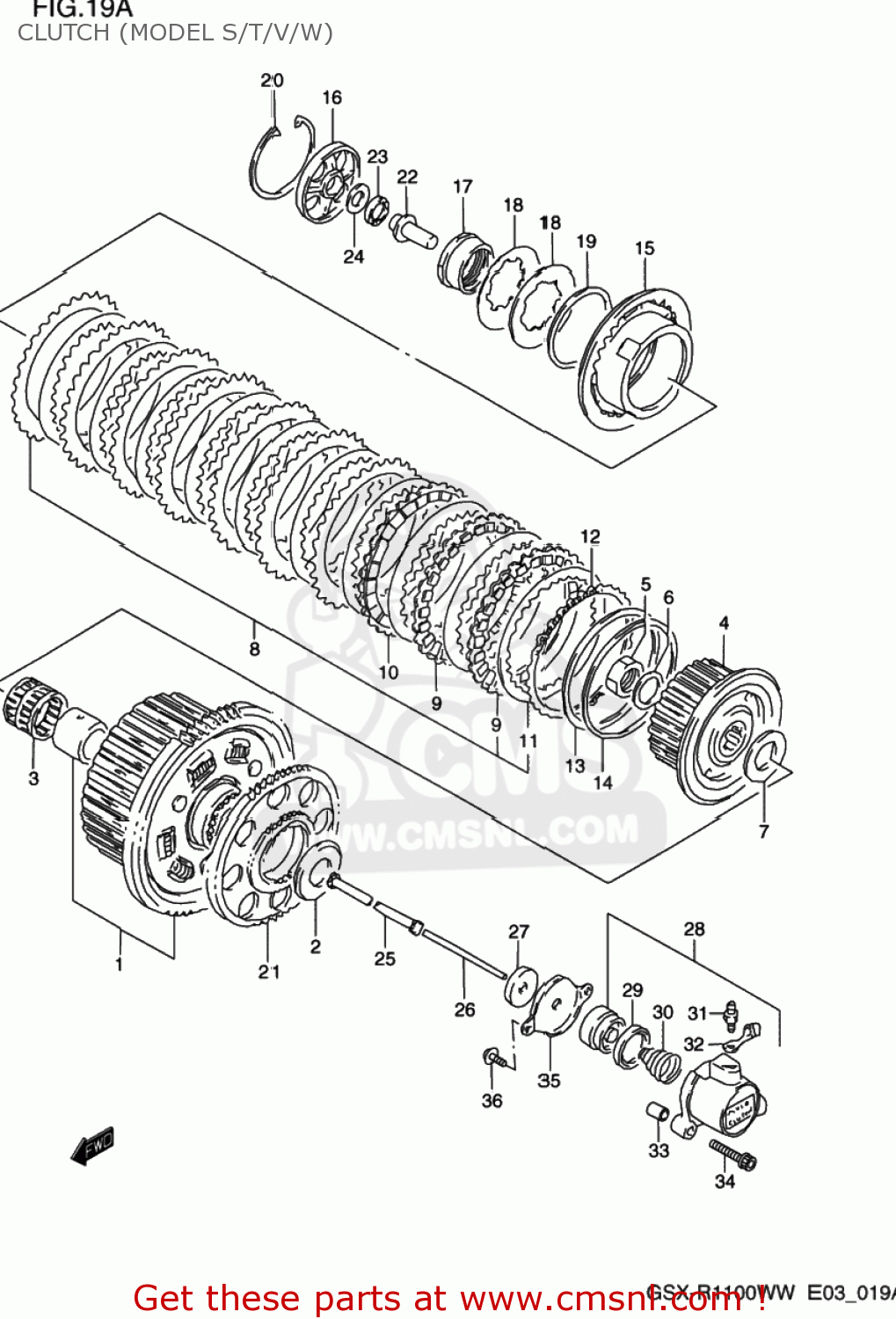

Clutch (model s/t/v/w) diagram GSXR1100W 1993 (P) USA (E03)
CLUTCH (MODEL S/T/V/W) GSXR1100W 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120040840
ref: 1-1
21200-40841
GEAR SET,PRIMARY DRIVE
€ 317.50
1-2
2120040841
ref: 1-2
GEAR ASSEMBLY,PRIMARY DRIVE
€ 317.50
2-1
0916025067
ref: 2-1
WASHER(25X54X2.5)
€ 9.00
2-2
0916025037
ref: 2-2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141046E00
ref: 4
HUB,CLUTCH SLEEVE
€ 173.00
5
0915924008
ref: 5
NUT
€ 10.50
6
0916424006
ref: 6
WASHER
€ 4.00
7
0916025056
ref: 7
WASHER(25X50X2.5)
€ 9.50
8
2140040C01
ref: 8
PLATE ASSY,CLUTCH
€ 222.50
9
2144148B10
ref: 9
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 15.50
10
2144148B00
ref: 10
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 18.00
11
2145148B00
ref: 11
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
12
2144246E00
ref: 12
PLATE,CLUTCH DRIVE NO.2
€ 17.50
13
0916400007
ref: 13
WASHER
€ 13.00
14
2147140C01
ref: 14
SEAT,CL SLEEVE HUB WAVE WASHER
€ 15.00
15
2146240C02
ref: 15
DISC,CLUTCH PRESSURE
€ 134.50
16
2146340C01
ref: 16
LIFTER,CLUTCH PRESSURE DISC
€ 33.00
17
2161140C01
ref: 17
HOLDER,CLUTCH SPRING
€ 162.00
18
0916447001
ref: 18
WASHER
€ 9.00
19
2162340C00
ref: 19
SEAT,CLUTCH SPRING
€ 9.00
20
0938184002
ref: 20
09381-84003
CIRCLIP
€ 10.50
21-1
2272121E01
ref: 21-1
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
21-2
2272121E02
ref: 21-2
GEAR,GENERATOR DRIVE
€ 192.50
22
2312107A00
ref: 22
23121-31E00
PIECE,CLUTCH PUSH
€ 18.50
23
0926315003
ref: 23
BEARING(15X28X2)
€ 7.00
24
0916015045
ref: 24
WASHER(15.5X28X1)
€ 4.00
25
2311027A00
ref: 25
ROD,CLUTCH
€ 17.00
26
2311124A01
ref: 26
ROD,CLUTCH PUSH,L
€ 15.00
27
0928506015
ref: 27
SEAL,OIL(6X34X5.5)
€ 8.50
28
2316006B02
ref: 28
CYLINDER,CLUTCH RELEASE
€ 122.50
29
2316306B00
ref: 29
CUP
€ 5.50
30
2316405A00
ref: 30
SPRING,CLUTCH CYLINDER
€ 3.50
31
5912101A00
ref: 31
BLEEDER
€ 8.50
32
5912201A00
ref: 32
CAP,BLEEDER
€ 4.50
33
0421109129
ref: 33
PIN
€ 2.00
34
0713006253
ref: 34
07130-0625B
BOLT,CL.COVER
€ 3.00
35
2311746E00
ref: 35
COVER,CLUTCH RELEASE CYLINDER
€ 6.50
36
0211206103
ref: 36
02112-0610B
SCREW
€ 1.50
