CYLINDER HEAD
GSXR1100W 1993 (P) USA (E03)

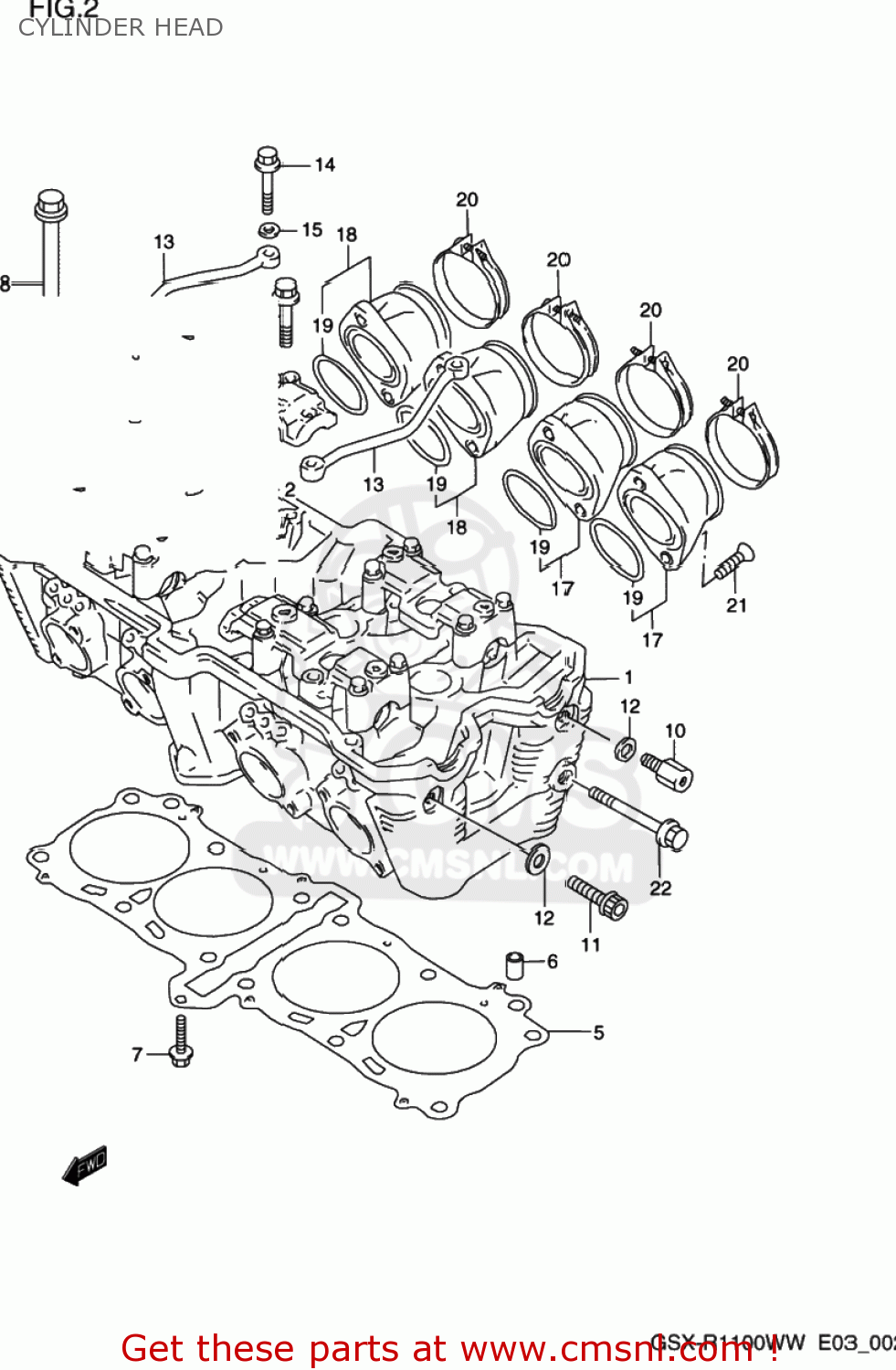

Cylinder head diagram GSXR1100W 1993 (P) USA (E03)
CYLINDER HEAD GSXR1100W 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110046E00
ref: 1-1
11100-46E20
HEAD ASSEMBLY,CYLINDER
€ 2,068.50
1-2
1110046E10
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,899.50
1-3
1110046E20
ref: 1-3
HEAD ASSEMBLY,CYLINDER
€ 2,068.50
1-4
1110046E30
ref: 1-4
HEAD ASSEMBLY,CYLINDER
€ 1,734.50
1-4
1110046E30
ref: 1-4
HEAD ASSEMBLY,CYLINDER
€ 1,734.50
2
1111517E70
ref: 2
GUIDE,VALVE
€ 23.00
3-1
0910306013
ref: 3-1
09103-06165
BOLT
€ 2.50
3-2
0910306165
ref: 3-2
BOLT(6X45)
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
1114146E01
ref: 5
GASKET,CYLINDER HEAD
€ 87.50
6
0421111189
ref: 6
PIN
€ 2.00
7-1
0151706305
ref: 7-1
01550-0630A
BOLT 6X30
€ 2.50
7-2
0155006303
ref: 7-2
01550-0630A
BOLT
€ 2.50
8-1
0910310270
ref: 8-1
09103-10276
BOLT 10X175
€ 13.50
8-2
0910310276
ref: 8-2
BOLT(10X175)
€ 13.50
9
0916010082
ref: 9
WASHER(10.5X19X2)
€ 2.00
10-1
0911908079
ref: 10-1
BOLT 8X16
€ 10.50
10-2
0712008163
ref: 10-2
07120-0816A
BOLT
€ 3.00
11-1
0712008165
ref: 11-1
07120-0816A
BOLT
€ 3.00
11-2
0712008163
ref: 11-2
07120-0816A
BOLT
€ 3.00
12
0916808015
ref: 12
GASKET(8.2X14X1).6 (NAS)
€ 2.50
13
1113117E00
ref: 13
PIPE,CYLINDER HEAD OIL
€ 41.00
14
0910306026
ref: 14
BOLT(6X39)
€ 2.00
15-1
0832221064
ref: 15-1
08322-0106B
WASHER
€ 2.00
15-2
0832201063
ref: 15-2
08322-0106B
WASHER
€ 2.00
16-1
0948200458
ref: 16-1
PLUG,SPARK(NGK CR9E)
€ 8.50
16-2
0948200459
ref: 16-2
PLUG,SPARK(U27ESR-N)
€ 8.50
16-3
0948200456
ref: 16-3
PLUG,SPARK(CR8E)
€ 7.00
16-4
0948200460
ref: 16-4
PLUG,SPARK(CR10E)
€ 8.50
16-5
0948200457
ref: 16-5
PLUG,SPARK(U24ESR-N)
€ 7.00
16-6
0948200461
ref: 16-6
PLUG,SPARK(U31ESR-N)
€ 8.50
17-1
1310146E10
ref: 17-1
13101-46E11
PIPE ASSEMBLY,INTAKE
€ 40.50
17-2
1310146E11
ref: 17-2
PIPE ASSY,INTAKE NO.1
€ 40.50
18-1
1310246E10
ref: 18-1
13102-46E11
PIPE ASSEMBLY,INTAKE
€ 40.50
18-2
1310246E11
ref: 18-2
PIPE ASSY,INTAKE NO.2
€ 40.50
19
0928046006
ref: 19
O RING(D:2.4,ID:47X42)
€ 8.00
20
0940252208
ref: 20
CLAMP
€ 5.50
21-1
0912606014
ref: 21-1
SCREW(6X16)
€ 2.00
21-2
0912006010
ref: 21-2
09120-06010-XC0
SCREW
€ 3.00
22
0155010403
ref: 22
01550-1040A
BOLT
€ 4.00
