RADIATOR HOSE (MODEL S/T/V/W)

GSXR1100W 1993 (P) USA (E03)

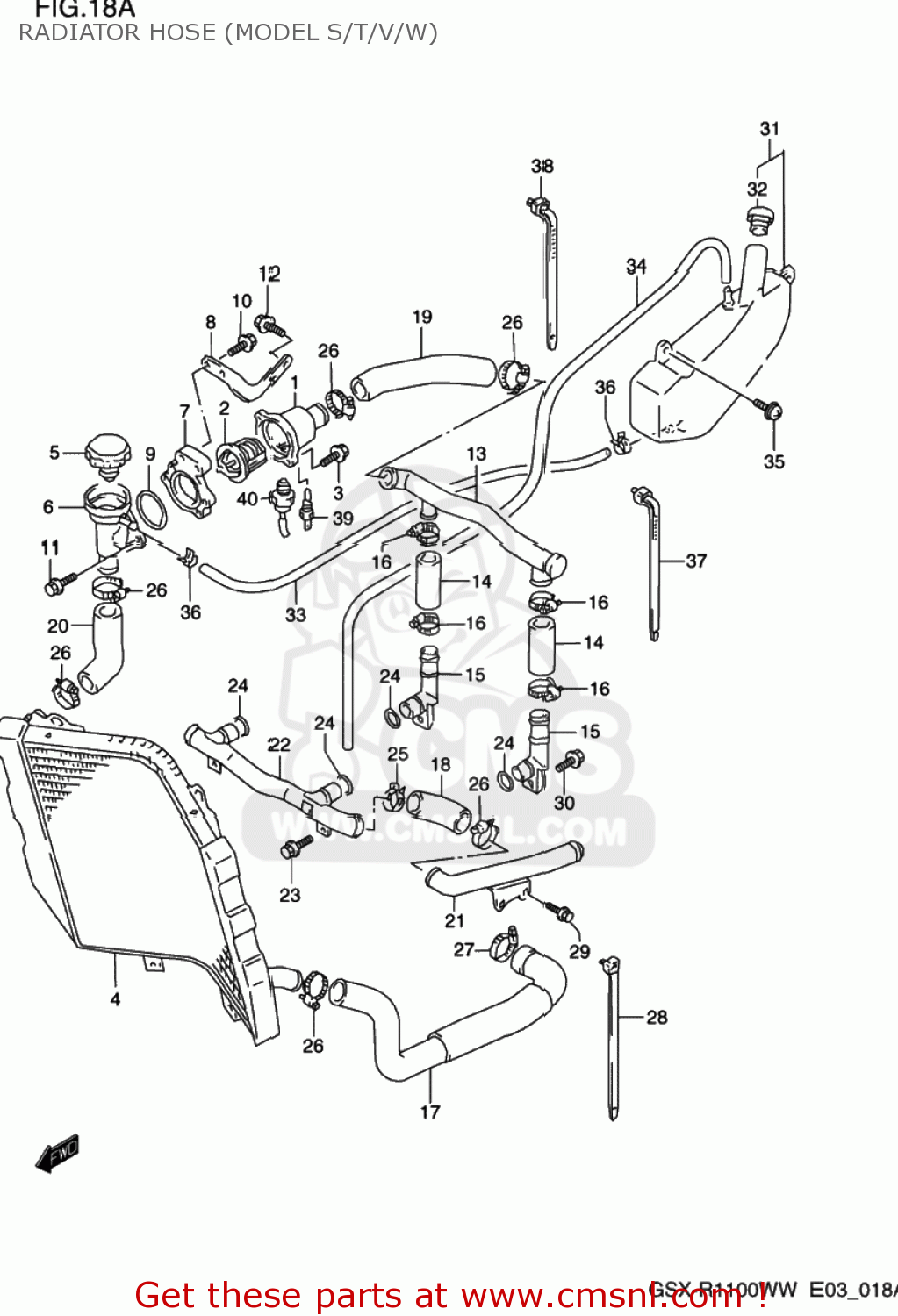

Radiator hose (model s/t/v/w) diagram GSXR1100W 1993 (P) USA (E03)

RADIATOR HOSE (MODEL S/T/V/W) GSXR1100W 1993 (P) USA (E03)
RADIATOR HOSE (MODEL S/T/V/W) GSXR1100W 1993 (P) USA (E03)
RADIATOR HOSE (MODEL S/T/V/W) GSXR1100W 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1766246E10
ref: 1
CONNECTOR,THERMOSTAT INLET
€ 33.50
2
1767032C01
ref: 2
THERMOSTAT,WATER
1767032C01
€ 41.00
3
0155006163
ref: 3
01550-0616A
BOLT
0155006163
€ 2.50
4
1771046E00
ref: 4
RADIATOR ASSY,WATER
€ 838.50
5
1773019D00
ref: 5
17730-19D11
CAP COMP,RADIATOR 1.1
1773019D00
€ 33.50
6
1779146E10
ref: 6
CONDUCTION,RADIATOR
€ 89.50
7
1779246E10
ref: 7
BRACKET,CONDUCTION
€ 26.00
8
1779346E10
ref: 8
BRACKET,CONDUCTION BRACKET
€ 10.00
9
0928044005
ref: 9
O RING(D:2.4,ID:43.2)
0928044005
€ 4.00
9
0928044005
ref: 9
O RING(D:2.4,ID:43.2)
0928044005
€ 4.00
10
0155006103
ref: 10
01550-0610A
BOLT
0155006103
€ 2.50
11
0155006163
ref: 11
01550-0616A
BOLT
0155006163
€ 2.50
12
0155006123
ref: 12
01550-0612A
BOLT
0155006123
€ 2.50
13
1784046E10
ref: 13
PIPE,HEAD OUTLET NO.2
€ 89.50
14-1
1785917E00
ref: 14-1
17851-01A00
HOSE,WATER
€ 17.50
14-2
1785328C20
ref: 14-2
17851-01A00
HOSE,RADIATOR JOINT NO.1
1785328C20
€ 17.50
14-3
1785101A00
ref: 14-3
HOSE,RADIATOR INLET
1785101A00
€ 17.50
15
1788017E00
ref: 15
PIPE,HEAD OUTLET
1788017E00
€ 39.00
16
0940228511
ref: 16
CLAMP
0940228511
€ 8.50
17
1785346E10
ref: 17
HOSE,WATER PUMP INLET
1785346E10
€ 47.50
18-1
1785617E50
ref: 18-1
17858-17E50
HOSE,WATER
1785617E50
€ 11.00
18-2
1785817E50
ref: 18-2
HOSE,RADIATOR JOINT
1785817E50
€ 11.00
19
1785646E10
ref: 19
HOSE,HEAD OUTLET
€ 18.00
20
1785746E10
ref: 20
HOSE,RADIATOR INLET
1785746E10
€ 13.00
21
1786017E00
ref: 21
PIPE,CYLINDER SIDE
1786017E00
€ 69.50
22
1787046E00
ref: 22
PIPE,CYLINDER INLET
€ 86.50
23-1
0910306184
ref: 23-1
09103-06285
BOLT
€ 2.50
23-2
0910306083
ref: 23-2
09103-06285
BOLT 6X12
0910306083
€ 2.50
24
0928018009
ref: 24
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
25
0940126404
ref: 25
09401-26407
CLAMP
€ 3.00
26
0940232511
ref: 26
CLAMP
0940232511
€ 11.50
27
0940238511
ref: 27
CLAMP
0940238511
€ 10.50
28-1
0940722404
ref: 28-1
CLAMP
0940722404
€ 2.50
28-2
0940725401
ref: 28-2
CLAMP(L:235)
0940725401
€ 4.00
29
0155006123
ref: 29
01550-0612A
BOLT
0155006123
€ 2.50
30
0155006123
ref: 30
01550-0612A
BOLT
0155006123
€ 2.50
31-1
1791017E10
ref: 31-1
TANK ASSY,RESERVOIR
1791017E10
€ 55.50
31-2
1791017E01
ref: 31-2
TANK ASSY,RESERVOIR
€ 0.00
32
1793212C00
ref: 32
CAP,RESERVOIR TANK
1793212C00
€ 3.50
33
1798146E00
ref: 33
HOSE,RESERVOIR TANK INLET
€ 15.00
34-1
1798121E00
ref: 34-1
17981-21810
HOSE,RESERVOIR TANK INLET
€ 19.50
34-2
1798121810
ref: 34-2
HOSE,RESERVOIR TANK
1798121810
€ 19.50
35
0913606022
ref: 35
SCREW(6X20)
0913606022
€ 2.50
36
0940108411
ref: 36
CLIP
0940108411
€ 3.00
37
0940718403
ref: 37
09407-18402
CLAMP L:165
€ 2.50
38
0940718403
ref: 38
09407-18402
CLAMP L:165
€ 2.50
39
3485050A00
ref: 39
GAUGE ASSY,WATER TEMP
3485050A00
€ 25.00
40-1
1768045D00
ref: 40-1
17680-48E00
SWITCH COMP,RADIATOR FAN
1768045D00
€ 95.00
40-2
1768048E00
ref: 40-2
SWITCH,RADIATOR FAN
1768048E00
€ 95.00
