STAND

GSXR1100W 1993 (P) USA (E03)

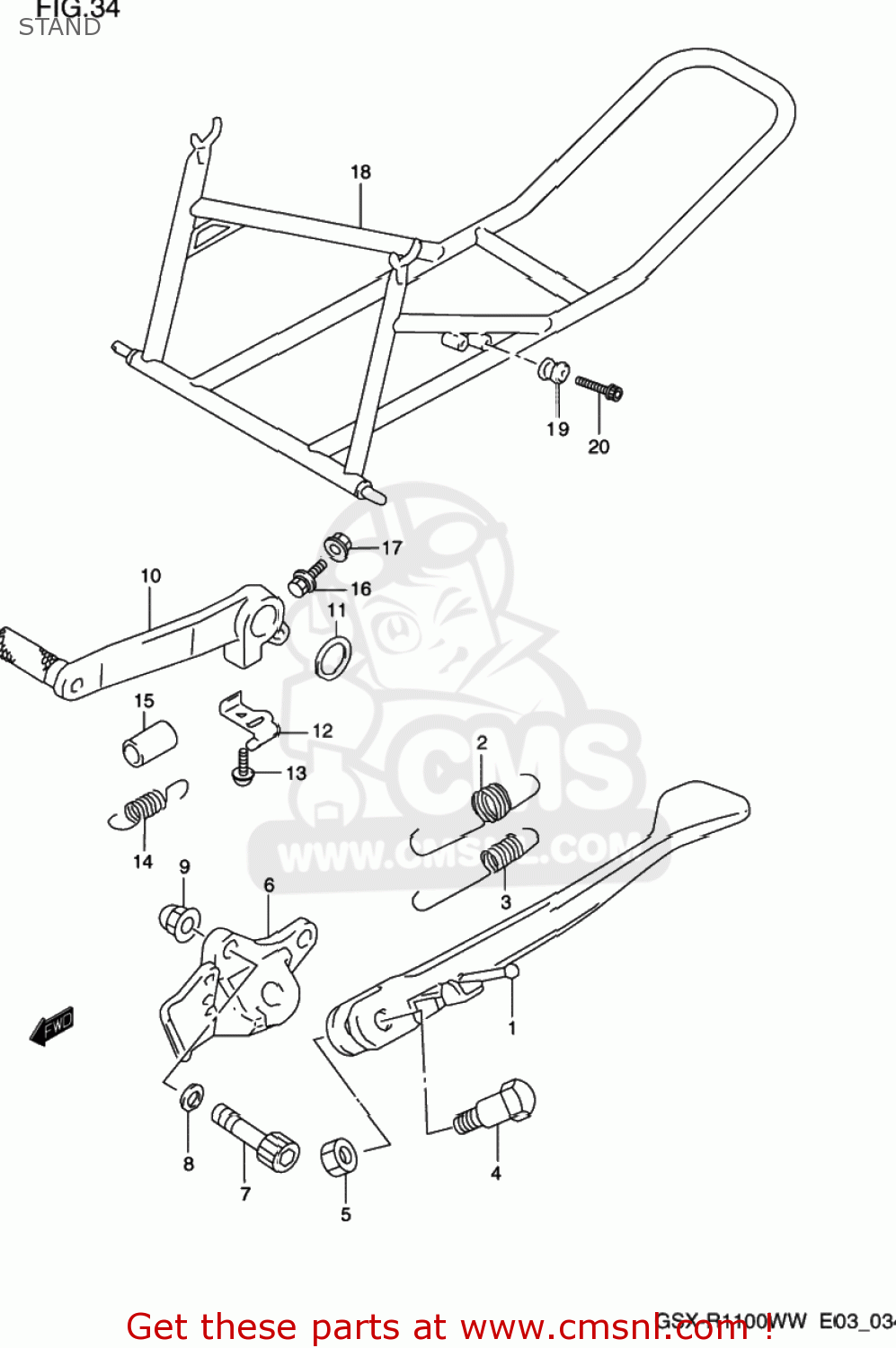

Stand diagram GSXR1100W 1993 (P) USA (E03)

STAND GSXR1100W 1993 (P) USA (E03)

STAND GSXR1100W 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231046E00
ref: 1-1
42310-46E01

STAND COMP,PROP

€ 127.50

1-2

4231046E01
ref: 1-2

STAND,PROP

€ 127.50

1-3

4231046E10
ref: 1-3

STAND,PROP

€ 0.00

2

0944314058
ref: 2

SPRING

€ 5.50

3

0944319011
ref: 3

SPRING

€ 5.50

4

0911110036
ref: 4

BOLT(10X38)

€ 5.50

5-1

0831000107
ref: 5-1

NUT

€ 2.50

5-2

0914010043
ref: 5-2

NUT

€ 2.00

5-3

0915910097
ref: 5-3

NUT

€ 5.00

6

4233046E00
ref: 6

BRACKET COMP,PROP STAND

€ 90.50

7

0910610033
ref: 7
09106-10033-XC0

BOLT 10X38

€ 2.50

8-1

0916410010
ref: 8-1

WASHER

€ 6.50

8-2

0916410005
ref: 8-2
09164-10010

WASHER

€ 6.50

8-3

0916410010
ref: 8-3

WASHER

€ 6.50

9

0831931107
ref: 9

NUT

€ 3.00

10-1

4311046E01
ref: 10-1
43111-46E10

PEDAL,BRAKE

€ 107.50

10-2

4311146E10
ref: 10-2

PEDAL,BRAKE

€ 107.50

11

0916018022
ref: 11

WASHER(18X24X1)

€ 3.00

12

4356346E10
ref: 12

HOOK,RETURN SPRING

€ 10.50

13

0913906027
ref: 13

SCREW(6X12)

€ 3.00

14

0944313018
ref: 14

SPRING

€ 4.00

15

4326117C00
ref: 15

TUBE,BRAKE SPRING GUIDE

€ 5.50

16

0150005203
ref: 16
01500-0520B

BOLT 5X20

€ 2.50

17

0831000057
ref: 17

NUT

€ 2.50

18

4210017C00
ref: 18
99950-70043-RAC

STAND ASSEMBLY,REAR

€ 471.00

19

6116527A30
ref: 19

HOLDER,STAND

€ 26.50

20-1

0711008305
ref: 20-1
07130-0830A

BOLT, REAR (8X30)

€ 3.00

20-2

0713008303
ref: 20-2
07130-0830A

BOLT

€ 3.00
