STARTER CLUTCH

GSXR1100W 1993 (P) USA (E03)

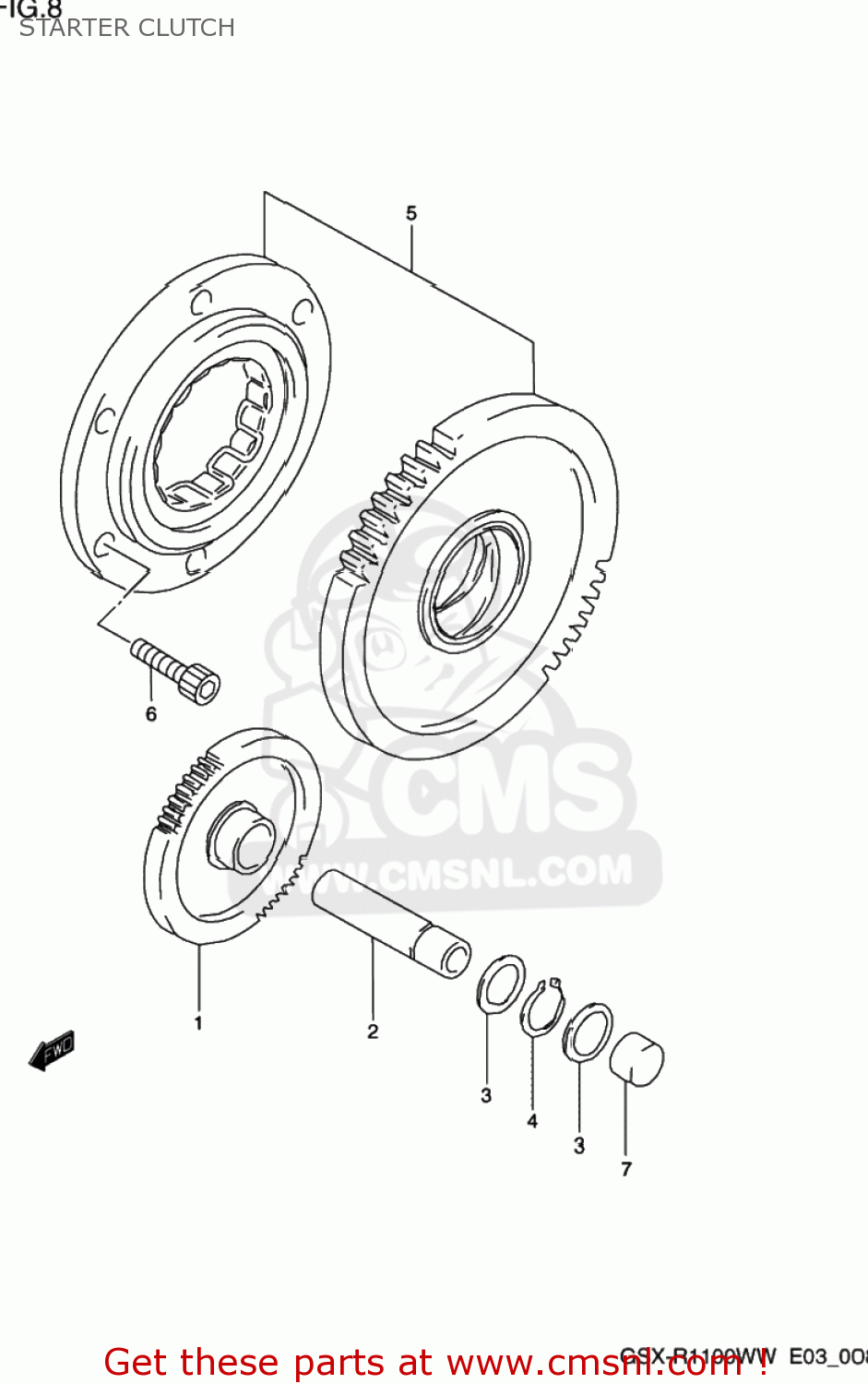

Starter clutch diagram GSXR1100W 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1261117E01
ref: 1-1
12611-21E00

GEAR,STARTER IDLE

€ 73.50

1-2

1261121E00
ref: 1-2

GEAR,STARTER IDLE (NT:1

€ 73.50

1261617E00
ref: 2

SHAFT,STARTER IDLE GEAR

€ 10.50

3-1

0822112185
ref: 3-1
09181-12130

WASHER

€ 2.50

3-2

0918112130
ref: 3-2

SHIM(12X18X0.5)

€ 2.50

0833131126
ref: 4
08331-3112A

CIRCLIP,12 MM

€ 2.00

5-1

1260017820
ref: 5-1
12600-21811

CLUTCH SET,STARTER

€ 251.00

5-2

1260021810
ref: 5-2
12600-21811

CLUTCH SET,STARTER

€ 251.00

5-3

1260021811
ref: 5-3

CLUTCH SET,STARTER

€ 251.00

6-1

0711006166
ref: 6-1
07130-0616B

BOLT

€ 2.50

6-2

0713006163
ref: 6-2
07130-0616B

BOLT,OIL FILLE

€ 3.00

6-3

0713006123
ref: 6-3
07130-0612A

BOLT,STRANGER

€ 2.50

0924112006
ref: 7

PLUG

€ 5.50
