REAR SWINGING ARM (MODEL S/T/V/W)
GSXR1100W 1993 (P) USA (E03)

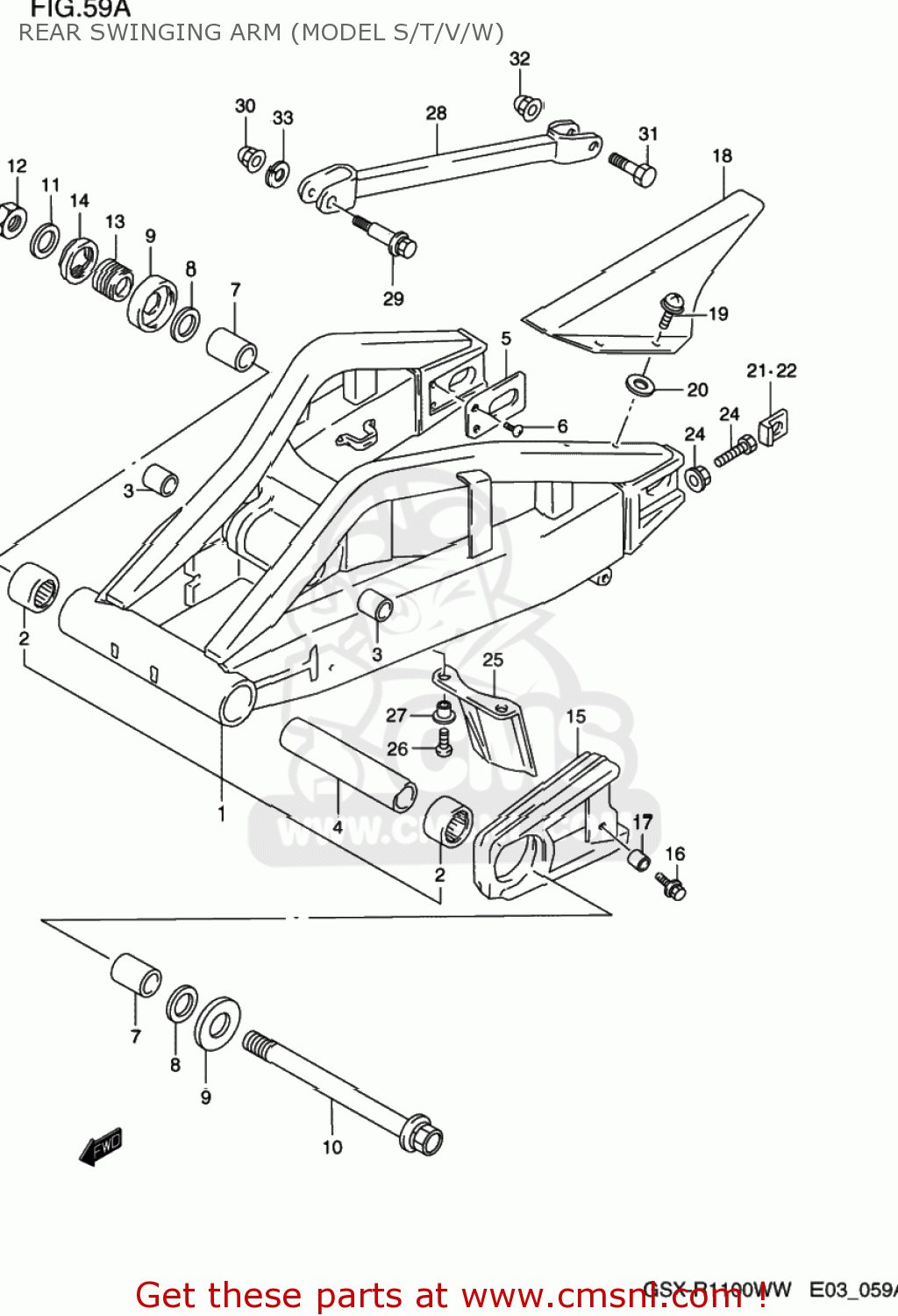

Rear swinging arm (model s/t/v/w) diagram GSXR1100W 1993 (P) USA (E03)
REAR SWINGING ARM (MODEL S/T/V/W) GSXR1100W 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100046E10
ref: 1
SWING ARM ASSEMBLY,REAR
€ 1,608.50
2
0926330040
ref: 2
BEARING(30X40X25)
€ 31.50
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
0918025099
ref: 4
09180-25099-XC0
SPACER (25.4X31.8X157.9)
€ 17.50
5
6112417E10
ref: 5
PLATE,RR SWING ARM BRKT
€ 4.50
6
0214206103
ref: 6
02142-0610A
SCREW 6X10
€ 2.00
7
6125117E10
ref: 7
SPACER,REAR SWING ARM PIVOT
€ 7.00
8
0821125481
ref: 8
WASHER
€ 5.50
9
6126217E10
ref: 9
DUST SEAL,RR SWGARM PIVOT
€ 6.50
10
6121117E10
ref: 10
SHAFT,REAR SWING ARM PIVOT
€ 77.50
11
0916025070
ref: 11
WASHER(25.2X42X3.2)
€ 4.50
12
0915925001
ref: 12
09159-25003
NUT
€ 29.00
13
6121317E10
ref: 13
61213-17E1V
BOLT,REAR SWING ARM PIVOT
€ 45.50
14
6121417E10
ref: 14
NUT,REAR SWING ARM PIVOT BOLT
€ 25.50
15
6127317E11
ref: 15
BUFFER,CHAIN TOUCH DEFENSE
€ 38.50
16
0911606111
ref: 16
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
17
0918006283
ref: 17
SPACER(6.5X10X7)
€ 2.00
18
6131117E10
ref: 18
CASE,CHAIN
€ 119.00
19
0913606022
ref: 19
SCREW(6X20)
€ 2.50
20-1
0916006084
ref: 20-1
WASHER(6.5X18X1.6)
€ 2.00
20-2
0916006132
ref: 20-2
09160-06084
WASHER(6.5X18X1.6)
€ 2.00
21
6144617E10
ref: 21
WASHER,CHAIN ADJUSTER
€ 28.50
22
6144627C20
ref: 22
WASHER,CHAIN ADJUSTER
€ 23.50
23
0910008287
ref: 23
BOLT(8X50)
€ 3.00
24
0831610083
ref: 24
08316-1008B
NUT
€ 3.00
25
6341142A00
ref: 25
63411C42A00J000
GUARD,RR UNIT MUD
€ 3.50
26
0214206163
ref: 26
02142-0616A
SCREW
€ 2.50
27
0916906010
ref: 27
WASHER
€ 3.00
28
6431046E00
ref: 28
TORQUELINK,RR
€ 87.50
29-1
0911108058
ref: 29-1
BOLT
€ 4.00
29-2
0911108083
ref: 29-2
BOLT(8X44)
€ 6.00
30
0831931087
ref: 30
NUT
€ 2.50
31
0910310019
ref: 31
BOLT(10X37)
€ 2.50
32
0831931107
ref: 32
NUT
€ 3.00
33
0832101123
ref: 33
08321-0112A
LOCK WASHER
€ 2.50
