AIR CLEANER
GSXR1100W 1997 (V) USA (E03)

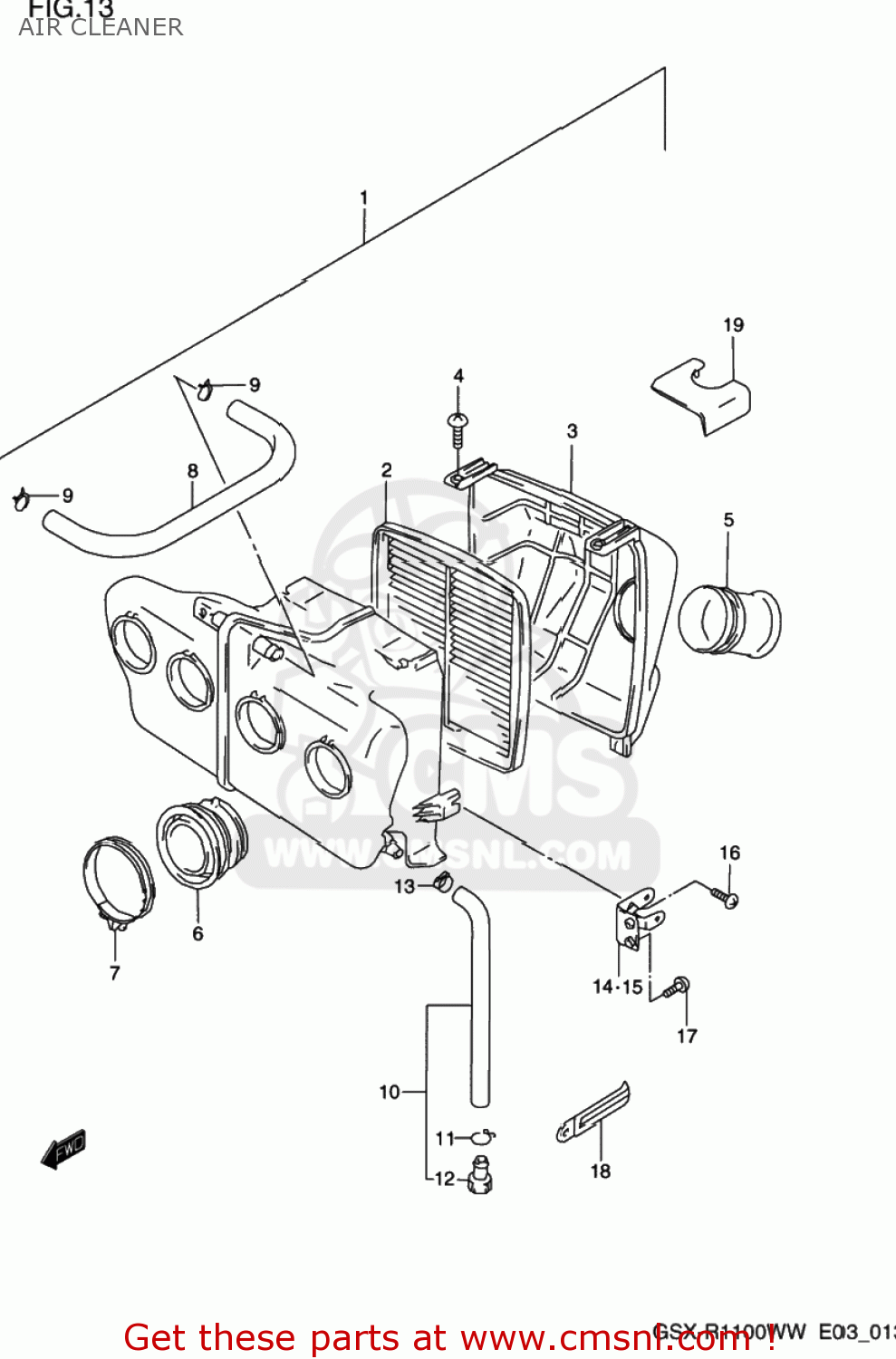

Air cleaner diagram GSXR1100W 1997 (V) USA (E03)
AIR CLEANER GSXR1100W 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370046E10
ref: 1-1
13700-46E11
CLEANER ASSEMBLY,AIR
€ 140.50
1-2
1370046E11
ref: 1-2
CLEANER ASSY,AIR
€ 140.50
2
1378017E00
ref: 2
FILTER,AIR
€ 34.50
3-1
1374017E01
ref: 3-1
13740-17E02
CAP,AIR CLEANER
€ 38.50
3-2
1374017E02
ref: 3-2
CAP,AIR CLEANER
€ 38.50
4-1
0214205124
ref: 4-1
02142-0512A
SCREW, FRONT & REAR
€ 1.50
4-2
0214205123
ref: 4-2
02142-0512A
SCREW 5X12
€ 1.50
5
1389117E00
ref: 5
TUBE,INLET
€ 22.50
6
1388146E10
ref: 6
TUBE,OUTLET
€ 20.00
7
0940268208
ref: 7
CLAMP
€ 6.00
8-1
1385317E00
ref: 8-1
13853-46E00
TUBE,BREATHER
€ 20.00
8-2
1385346E00
ref: 8-2
TUBE,BREATHER
€ 20.00
9-1
1382448B10
ref: 9-1
09401-16401
CLIP
€ 3.00
9-2
0940116401
ref: 9-2
CLIP
€ 3.00
10
1387021458
ref: 10
TUBE,DRAIN
€ 23.50
11-1
1382418910
ref: 11-1
09401-11101
CLIP
€ 2.00
11-2
0940111101
ref: 11-2
CLIP
€ 2.50
12
1387738A00
ref: 12
STOPPER,DRAIN
€ 3.50
13-1
1382543400
ref: 13-1
09401-13417
CLIP
€ 2.50
13-2
0940113413
ref: 13-2
09401-13417
CLIP
€ 2.50
13-3
0940113417
ref: 13-3
CLIP
€ 2.50
14
1376017E00
ref: 14
BRACKET COMP,AIR CLEANER
€ 9.00
15
1377017E00
ref: 15
BRACKET COMP,AIR CLEANER
€ 14.00
16-1
0214206126
ref: 16-1
02142-0612A
SCREW
€ 2.00
16-2
0214206123
ref: 16-2
02142-0612A
SCREW 6X12
€ 2.00
17-1
0214206167
ref: 17-1
SCREW
€ 2.00
17-2
0214206163
ref: 17-2
02142-0616A
SCREW
€ 2.50
18-1
0940406426
ref: 18-1
09404-06433
CLAMP
€ 3.00
18-2
0940406433
ref: 18-2
CLAMP(L:80)
€ 3.00
19
1373546E00
ref: 19
COVER,AIR CLEANER
€ 7.50
