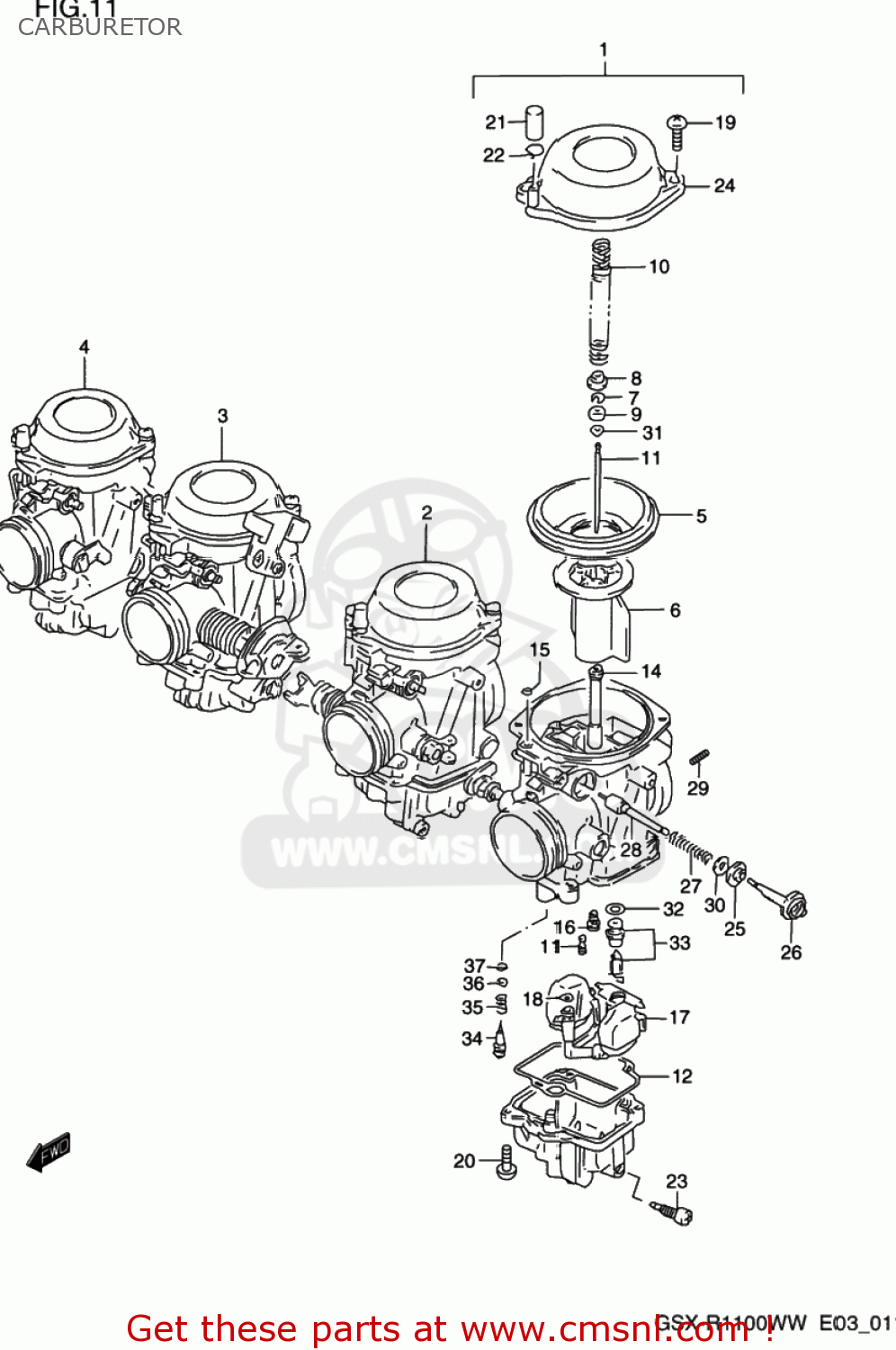

prices are in EUR
ref
part #
description
quantity
1-2
CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT
1-4
CARBURETOR ASSEMBLY,LEFT
1-4
CARBURETOR ASSEMBLY,LEFT
2-1
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-3
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-3
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-4
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-4
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-1
CARBURETOR ASSEMBLY,MIDDLE
3-3
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-3
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-4
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-4
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-1
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
4-3
CARBURETOR ASSEMBLY,RIGHT
4-3
CARBURETOR ASSEMBLY,RIGHT
4-4
CARBURETOR ASSEMBLY,RIGHT
4-4
CARBURETOR ASSEMBLY,RIGHT
5
DIAPHRAGM
6-1
VALVE,PISTON
6-2
VALVE,PISTON
7
CLIP
8
RING
9
RING
10-2
SPRING
10-3
SPRING
10-4
SPRING
11-1
NEEDLE,JET(62D13-2)
12
GASKET,FLOAT CHAMBER (NAS)
13
JET,PILOT(30)
15
O RING
16-1
JET,MAIN(127.5)
16-2
JET,MAIN(117.5)
16-3
JET,MAIN(125)
16-4
JET,MAIN(120)
16-5
JET,MAIN(122.5)
16-5
JET,MAIN(122.5)
16-6
JET,MAIN(117.5)
16-6
JET,MAIN(117.5)
17-1
FLOAT/NEEDLE VALVE ASSY
17-2
FLOAT/NEEDLE VALVE ASSEMBLY
18
O RING
19-1
SCREW
19-2
SCREW
20-2
SCREW
21
CAP
22-1
CLIP
22-2
CLIP
23
SCREW,DRAIN
24-1
COVER,DIAPHRAGM
24-2
COVER,DIAPHRAGM
24-3
COVER,DIAPHRAGM
25
CAP,STARTER
26
HOLDER,GUIDE
27
SPRING
28
PLUNGER ASSY
29-1
JET,AIR(1.3)
29-2
JET,AIR(1.2)
29-3
JET,AIR(1.15)
29-3
JET,AIR(1.15)
29-4
JET,AIR(1.2)
29-4
JET,AIR(1.2)
30
WASHER
31
WASHER
32
O-RING,NEEDLE VALVE
33-1
VALVE ASSEMBLY,NEEDLE
33-2
VALVE ASSEMBLY,NEEDLE
33-3
VALVE ASSY,NEEDLE(NI)
34-1
SCREW,PILOT
34-2
SCREW,PILOT
35
SPRING
36
WASHER
37
O RING,PILOT AIR SCREW
