RADIATOR HOSE (MODEL P/R)

GSXR1100W 1997 (V) USA (E03)

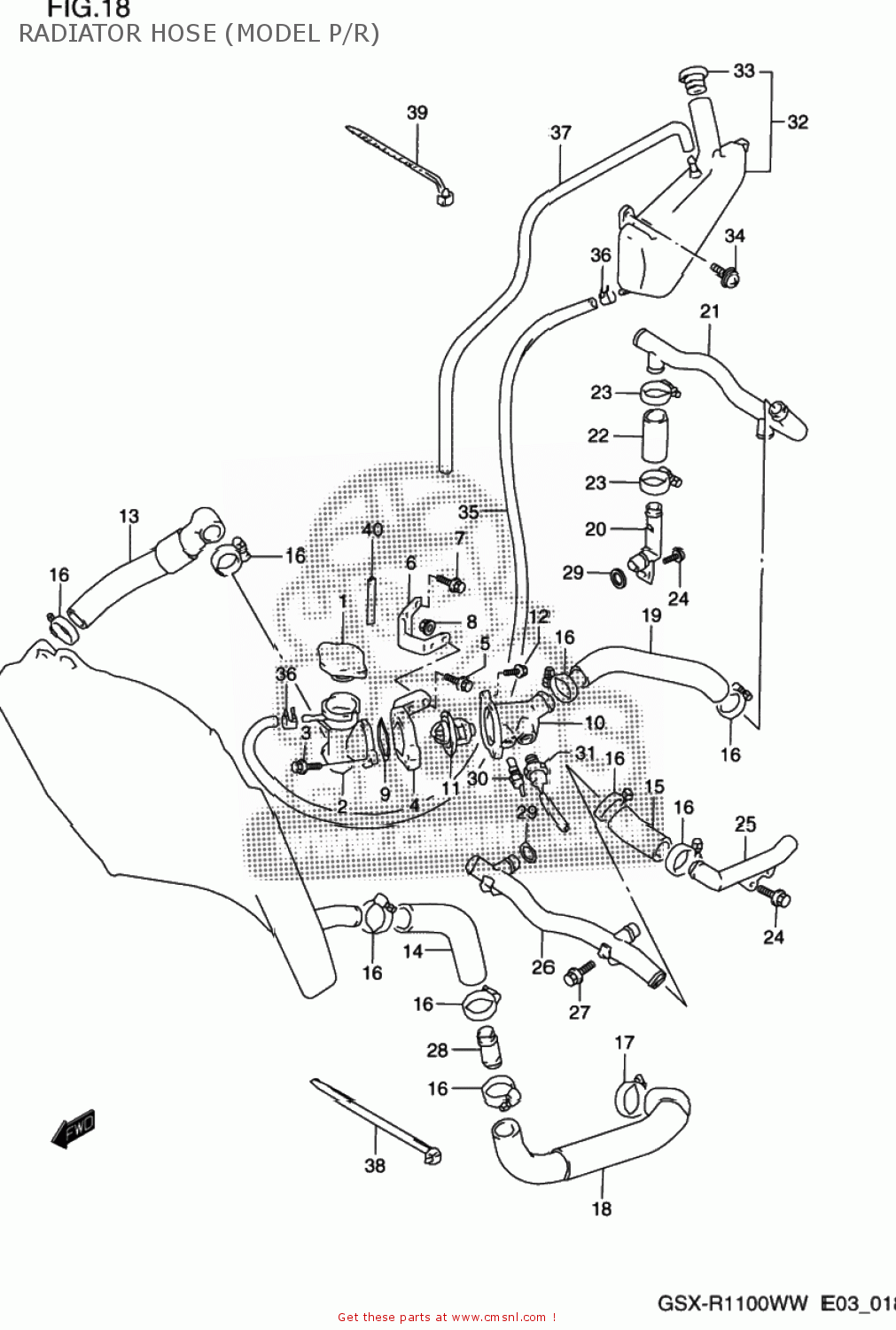

Radiator hose (model p/r) diagram GSXR1100W 1997 (V) USA (E03)

RADIATOR HOSE (MODEL P/R) GSXR1100W 1997 (V) USA (E03)
RADIATOR HOSE (MODEL P/R) GSXR1100W 1997 (V) USA (E03)
RADIATOR HOSE (MODEL P/R) GSXR1100W 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1773020930
ref: 1
17730-08J00
CAP,RADIATOR 1.1
1773020930
€ 40.00
2
1779132C00
ref: 2
CONDUCTION,RADIATOR
1779132C00
€ 133.50
3
0151706167
ref: 3
01550-06167
BOLT 6X16
0151706167
€ 1.50
4
1779232C01
ref: 4
BRACKET,CONDUCTION
1779232C01
€ 29.00
5
0151706207
ref: 5
01550-06207
BOLT 6X20
€ 2.50
6
1779317E00
ref: 6
BRACKET,CONDUCTION BRAKE
€ 11.50
7
0151706167
ref: 7
01550-06167
BOLT 6X16
0151706167
€ 1.50
8-1
0915906017
ref: 8-1
08319-31067
NUT
0915906017
€ 2.50
8-2
0831610063
ref: 8-2
08316-1006B
NUT
0831610063
€ 2.50
9
0928044005
ref: 9
O RING(D:2.4,ID:43.2)
0928044005
€ 4.00
10
1766246E00
ref: 10
CONNECTOR,THERMOSTAT,INLET
€ 32.50
11
1767032C01
ref: 11
THERMOSTAT,WATER
1767032C01
€ 41.00
12-1
0151706207
ref: 12-1
01550-06207
BOLT 6X20
€ 2.50
12-2
0155006203
ref: 12-2
01550-0620A
BOLT
0155006203
€ 2.50
13
1785717E00
ref: 13
17857-17E01
HOSE,WATER
€ 23.50
14
1785217E00
ref: 14
HOSE,RADIATOR OUTLET
1785217E00
€ 18.00
15-1
1785517E01
ref: 15-1
17858-17E50
HOSE,WATER
€ 11.00
15-2
1785517E02
ref: 15-2
17858-17E50
HOSE,WATER
1785517E02
€ 11.00
16
0940230502
ref: 16
09402-32511
CLAMP
€ 11.50
17
0940233502
ref: 17
09402-38511
CLAMP
0940233502
€ 10.50
18
1785317E00
ref: 18
HOSE,WATER PUMP INLET
1785317E00
€ 40.00
19
1785646E00
ref: 19
HOSE,HEAD OUTLET
€ 16.00
20
1788017E00
ref: 20
PIPE,HEAD OUTLET
1788017E00
€ 39.00
21
1784017E00
ref: 21
17840-17E10
PIPE COMP,HEAD OUTLET
€ 105.00
22
1785917E00
ref: 22
17851-01A00
HOSE,WATER
€ 17.50
23
0940225502
ref: 23
09402-28511
CLAMP
0940225502
€ 8.50
24-1
0151706125
ref: 24-1
01550-0612A
BOLT 6X12
0151706125
€ 2.50
24-2
0155006123
ref: 24-2
01550-0612A
BOLT
0155006123
€ 2.50
25
1786017E00
ref: 25
PIPE,CYLINDER SIDE
1786017E00
€ 69.50
26
1787046E00
ref: 26
PIPE,CYLINDER INLET
€ 86.50
27
0910306184
ref: 27
09103-06285
BOLT
€ 2.50
28
1789146E00
ref: 28
UNION,HOSE JOINT
€ 13.00
29
0928018009
ref: 29
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
30
3485005A10
ref: 30
GAUGE ASSY,WATER TEMP
3485005A10
€ 104.00
31
1768045D00
ref: 31
17680-48E00
SWITCH COMP,RADIATOR FAN
1768045D00
€ 95.00
32-1
1791017E10
ref: 32-1
TANK ASSY,RESERVOIR
1791017E10
€ 55.50
32-2
1791017E01
ref: 32-2
TANK ASSY,RESERVOIR
€ 0.00
33
1793212C00
ref: 33
CAP,RESERVOIR TANK
1793212C00
€ 3.50
34
0913606022
ref: 34
SCREW(6X20)
0913606022
€ 2.50
35
1798117E00
ref: 35
17981-21810
HOSE,RESERVOIR TANK INLET
€ 19.50
36
0940108407
ref: 36
09401-08411
CLIP
€ 3.00
37
1798217E00
ref: 37
17981-21810
HOSE,RESERVOIR TANK OVERFLOW
€ 19.50
38
0940722404
ref: 38
CLAMP
0940722404
€ 2.50
39
0940718402
ref: 39
CLAMP(L:165)
0940718402
€ 2.50
40
4455224B00
ref: 40
MOLDING,FUEL TANK RR
4455224B00
€ 3.50
