WIRING HARNESS (MODEL S/T/V/W)
GSXR1100W 1997 (V) USA (E03)

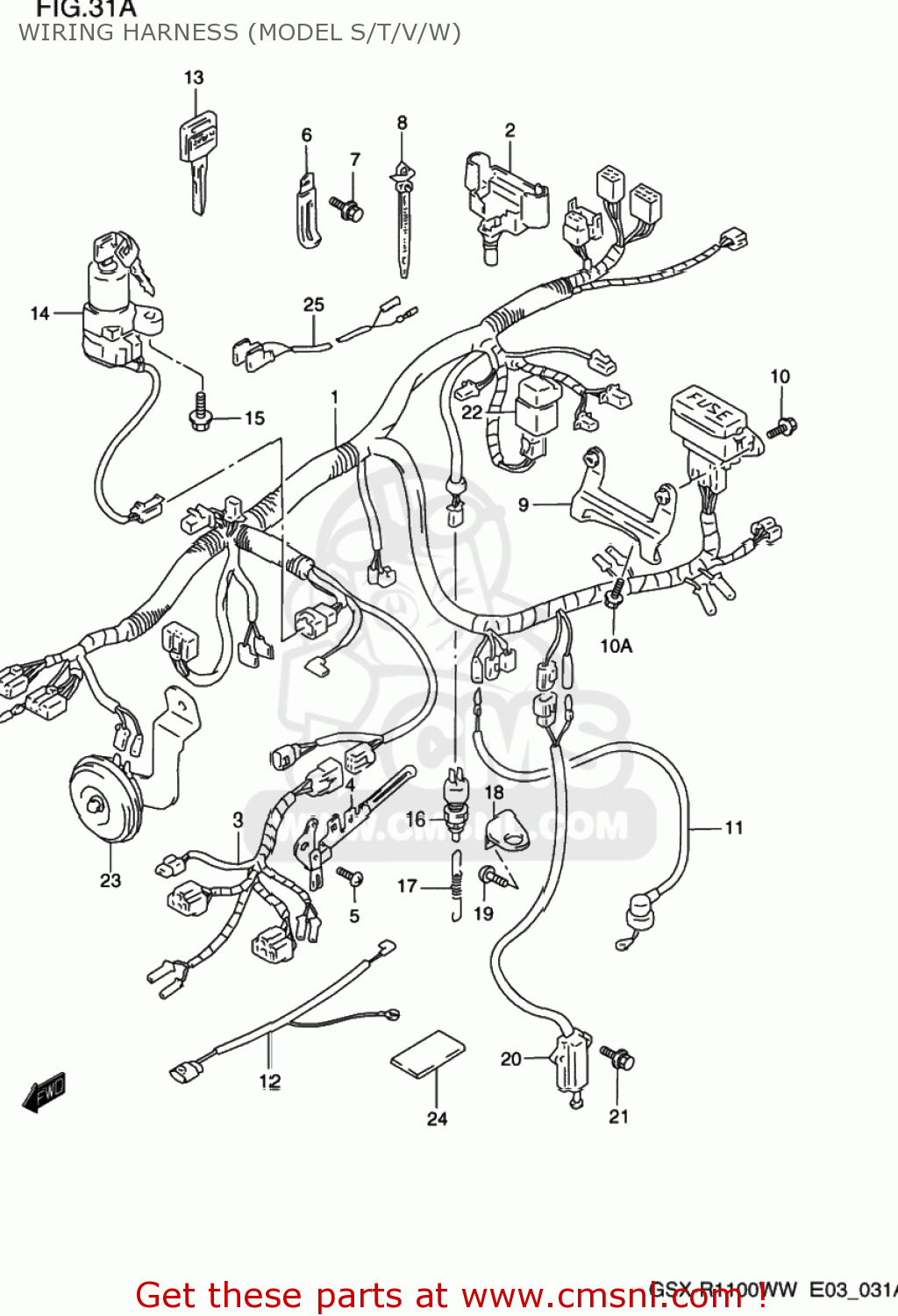

Wiring harness (model s/t/v/w) diagram GSXR1100W 1997 (V) USA (E03)
WIRING HARNESS (MODEL S/T/V/W) GSXR1100W 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661046E20
ref: 1
HARNESS,WIRING
€ 451.50
2
3186117E20
ref: 2
CAP,STARTER RELAY
€ 13.00
3
3662017E00
ref: 3
HARNESS,WIRING NO.2
€ 74.50
4-1
3668046E10
ref: 4-1
HOLDER COMP,COUPLER,RIGHT
€ 6.00
4-2
3668046E00
ref: 4-2
HOLDER COMP,COUPLER,LEFT
€ 6.00
5
0354105083
ref: 5
03541-0508A
SCREW 5X8
€ 2.00
6-1
0940406431
ref: 6-1
09404-06432
CLAMP(L:65)
€ 2.50
6-2
0940406433
ref: 6-2
CLAMP(L:80)
€ 3.00
6-3
0940406435
ref: 6-3
CLAMP(L:135)
€ 2.50
7
0155006103
ref: 7
01550-0610A
BOLT
€ 2.50
8-1
0940711401
ref: 8-1
CLAMP(L:95)
€ 2.50
8-2
0940711402
ref: 8-2
CLAMP(L:90)
€ 2.50
8-3
0940714403
ref: 8-3
CLAMP(L:125)
€ 2.50
8-4
0940718403
ref: 8-4
09407-18402
CLAMP L:165
€ 2.50
8-5
0940725401
ref: 8-5
CLAMP(L:235)
€ 4.00
9
4741017E00
ref: 9
BRACKET,FUSE BOX
€ 13.50
10
0214206123
ref: 10
02142-0612A
SCREW 6X12
€ 2.00
10A
0155006123
ref: 10A
01550-0612A
BOLT
€ 2.50
11
3685117E10
ref: 11
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
12
3685246E10
ref: 12
WIRE,WATER TEMPERATURE GAUGE
€ 9.50
13
3714646E00
ref: 13
37146-33E00
KEY,BLANK
€ 13.00
14-1
3710046E20
ref: 14-1
37100-46E21
LOCK ASSEMBLY,STEERING
€ 110.00
14-2
3710046E21
ref: 14-2
LOCK ASSY,STEERING
€ 110.00
15
0911908082
ref: 15
09119-08100
BOLT M8X20
€ 3.00
16
3774024A00
ref: 16
SWITCH ASSY,STOP LAMP
€ 20.50
17
0944306012
ref: 17
SPRING
€ 3.00
18
4325033C00
ref: 18
BRACKET,STOP LAMP SWITCH
€ 5.00
19
0913906027
ref: 19
SCREW(6X12)
€ 3.00
20
3784026X50
ref: 20
SWITCH ASSY,SIDE STAND WARNING
€ 100.50
21
0155006163
ref: 21
01550-0616A
BOLT
€ 2.50
22
3874024X50
ref: 22
RELAY ASSY
€ 37.50
23
3850217E12
ref: 23
HORN ASSY
€ 78.00
24-1
3692002200
ref: 24-1
COVER,HARNESS
€ 3.00
24-2
3692010B00
ref: 24-2
TAPE
€ 3.00
25
3685219D00
ref: 25
WIRE,CLUTCH LEAD
€ 12.00
