FRAME COVER (MODEL V/W)

GSXR1100W 1997 (V) USA (E03)

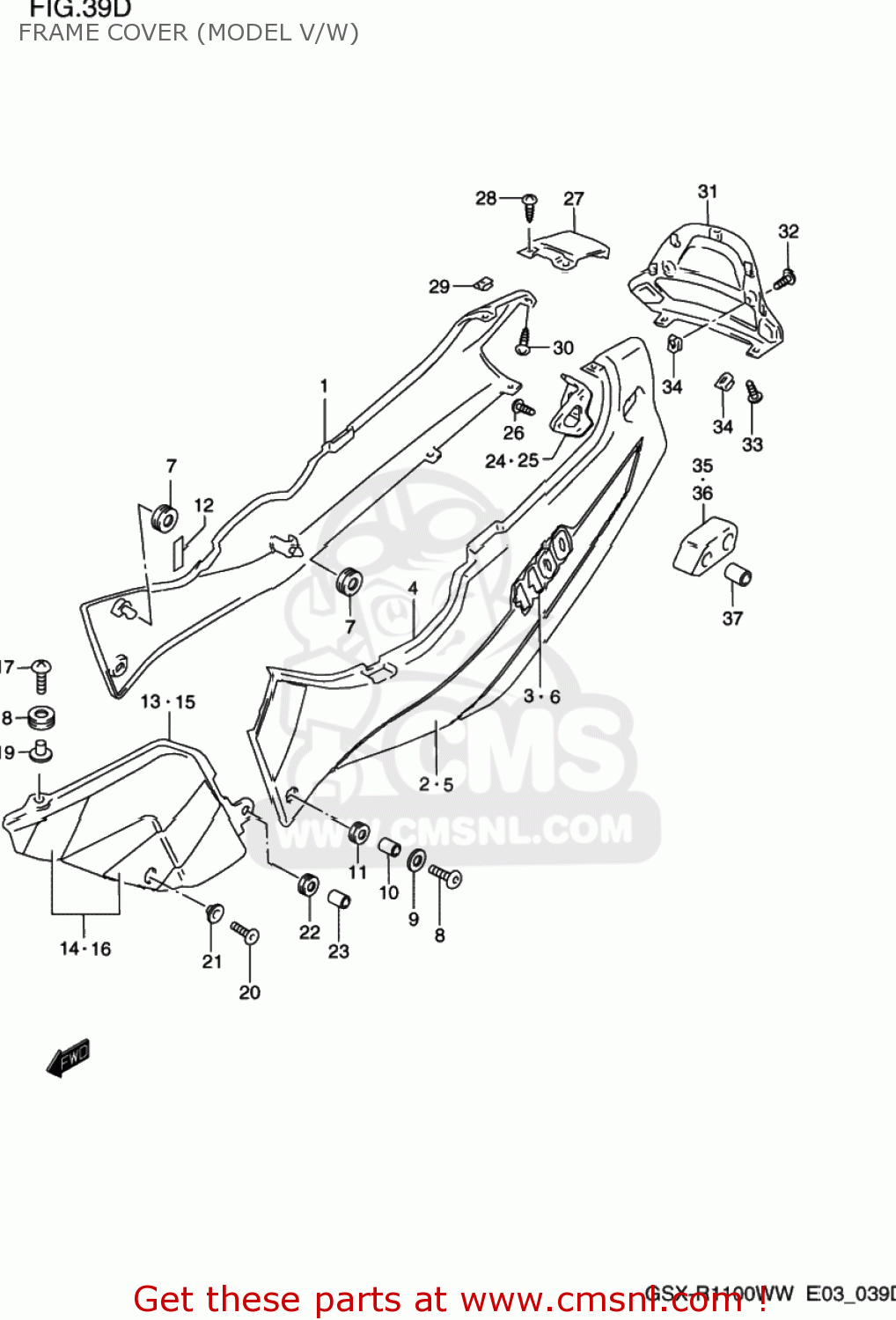

Frame cover (model v/w) diagram GSXR1100W 1997 (V) USA (E03)

FRAME COVER (MODEL V/W) GSXR1100W 1997 (V) USA (E03)
FRAME COVER (MODEL V/W) GSXR1100W 1997 (V) USA (E03)
FRAME COVER (MODEL V/W) GSXR1100W 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4710046E700JW
ref: 1-1
COVER ASSEMBLY,FRAME,RIGHT
€ 0.00
1-2
4710046E7033J
ref: 1-2
COVER ASSEMBLY,FRAME,RIGHT
€ 0.00
1-3
4710046E701LX
ref: 1-3
COVER ASSY,FRAME,R(WHITE)
€ 0.00
1-4
4710046E7035W
ref: 1-4
COVER ASSEMBLY,FRAME,RIGHT
€ 0.00
2-1
6813046E10G6N
ref: 2-1
TAPE SET,FRAME COVER,RIGHT
€ 0.00
2-2
6813046E10G6P
ref: 2-2
TAPE SET,FRAME COVER,RIGHT
€ 0.00
2-3
6813046E10K2M
ref: 2-3
TAPE SET,FRAME COVER,RIGHT
€ 0.00
2-4
6813046E10K2N
ref: 2-4
TAPE SET,FRAME COVER,R
€ 0.00
3-1
6813146E41G6R
ref: 3-1
EMBLEM,FRAME COVER,R
6813146E41G6R
€ 25.50
3-2
6813146E41G6S
ref: 3-2
EMBLEM,FRAME COVER,R
€ 0.00
3-3
6813146E41K2H
ref: 3-3
EMBLEM,FRAME COVER,R
€ 0.00
3-4
6813146E41K2J
ref: 3-4
EMBLEM,FRAME COVER,R
€ 0.00
4-1
4720046E700JW
ref: 4-1
COVER ASSY,FRAME,L(WHITE)
€ 0.00
4-2
4720046E7033J
ref: 4-2
COVER ASSEMBLY,FRAME,LEFT
€ 0.00
4-3
4720046E701LX
ref: 4-3
COVER ASSEMBLY,FRAME,LEFT
€ 0.00
4-4
4720046E7035W
ref: 4-4
COVER ASSY,FRAME,L(GRAY)
€ 0.00
5-1
6814046E10G6N
ref: 5-1
TAPE SET,FRAME COVER,LEFT
€ 0.00
5-2
6814046E10G6P
ref: 5-2
TAPE, FRONT LH
€ 0.00
5-3
6814046E10K2M
ref: 5-3
TAPE SET,FRAME COVER,LEFT
€ 0.00
5-4
6814046E10K2N
ref: 5-4
TAPE SET,FRAME COVER,LEFT
€ 0.00
6-1
6814146E41G6R
ref: 6-1
EMBLEM,FRAME COVER,L
6814146E41G6R
€ 25.50
6-2
6814146E41G6S
ref: 6-2
EMBLEM,FRAME COVER,L
€ 0.00
6-3
6814146E41K2H
ref: 6-3
EMBLEM,FRAME COVER,L
€ 0.00
6-4
6814146E41K2J
ref: 6-4
EMBLEM,FRAME COVER,L
€ 0.00
7
0932008018
ref: 7
CUSHION
0932008018
€ 4.00
8
0913906042
ref: 8
SCREW(6X30)
0913906042
€ 7.50
9-1
0916006006
ref: 9-1
09160-06084
WASHER
0916006006
€ 2.00
9-2
0916006132
ref: 9-2
09160-06084
WASHER(6.5X18X1.6)
0916006132
€ 2.00
10
0918006263
ref: 10
SPACER(6.5X9X9)
0918006263
€ 2.00
11
0932009016
ref: 11
CUSHION
0932009016
€ 2.50
12
4488538A00
ref: 12
CUSHION
4488538A00
€ 3.00
13-1
4750046E700JW
ref: 13-1
COVER ASSY,FRAME BODY,R
€ 0.00
13-2
4750046E7033J
ref: 13-2
COVER ASSY,FRAME BODY,R
€ 0.00
13-3
4750046E701LX
ref: 13-3
COVER ASSEMBLY,FRAME BODY
€ 0.00
13-4
4750046E7035W
ref: 13-4
COVER ASSEMBLY,FRAME BODY
€ 0.00
14-1
6866046E30G6L
ref: 14-1
TAPE SET,FRAME COVER BODY,R
€ 0.00
14-2
6866046E30G6M
ref: 14-2
TAPE SET,FRAME COVER B
€ 0.00
14-3
6866046E30K2G
ref: 14-3
TAPE SET,FRAME COVER B
€ 0.00
14-4
6866046E30E88
ref: 14-4
TAPE SET,FRAME COVER B
€ 0.00
15-1
4760046E700JW
ref: 15-1
COVER ASSY,FRAME BODY,L
€ 0.00
15-2
4760046E7033J
ref: 15-2
COVER ASSEMBLY,FRAME BODY
€ 0.00
15-3
4760046E701LX
ref: 15-3
COVER ASSEMBLY,FRAME BODY
€ 0.00
15-4
4760046E7035W
ref: 15-4
COVER ASSEMBLY,FRAME BODY
€ 0.00
16-1
6867046E30G6L
ref: 16-1
TAPE SET,FRAME COVER B
€ 0.00
16-2
6867046E30G6M
ref: 16-2
TAPE SET,FRAME COVER B
€ 0.00
16-3
6867046E30K2G
ref: 16-3
TAPE SET,FRAME COVER B
€ 0.00
16-4
6867046E30E88
ref: 16-4
TAPE SET,FRAME COVER B
€ 0.00
17
0913606126
ref: 17
SCREW(6X25)
0913606126
€ 2.50
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19
0916906062
ref: 19
WASHER
0916906062
€ 3.00
20
0913905025
ref: 20
SCREW(5X14)
0913905025
€ 2.00
21
0916906040
ref: 21
WASHER
0916906040
€ 2.00
22
0932009016
ref: 22
CUSHION
0932009016
€ 2.50
23
0918006263
ref: 23
SPACER(6.5X9X9)
0918006263
€ 2.00
24
4553146E00
ref: 24
BRACKET,RR COMBINATION LAMP,L
€ 13.50
25
4553246E00
ref: 25
BRACKET,RR COMBINATION LAMP,L
€ 13.50
26
0354104103
ref: 26
03541-0410A
SCREW
0354104103
€ 1.50
27-1
4730046E000JW
ref: 27-1
COVER ASSY,FRAME CTR
€ 40.00
27-2
4730046E0033J
ref: 27-2
COVER ASSY,FRAME CTR
4730046E0033J
€ 32.00
27-3
4730046E0035W
ref: 27-3
COVER ASSEMBLY,FRAME,CENTER
€ 0.00
28
0214205123
ref: 28
02142-0512A
SCREW 5X12
0214205123
€ 1.50
29
0914805021
ref: 29
NUT
0914805021
€ 1.50
30
0354104103
ref: 30
03541-0410A
SCREW
0354104103
€ 1.50
31
4741146E00
ref: 31
COVER,FRAME RR
4741146E00
€ 24.50
32
0913905021
ref: 32
SCREW(5X12)
0913905021
€ 2.00
33
0214205123
ref: 33
02142-0512A
SCREW 5X12
0214205123
€ 1.50
34
0914805021
ref: 34
NUT
0914805021
€ 1.50
35
4623846E00
ref: 35
CUSHION,PILLION RIDER HANDLE,R
4623846E00
€ 12.50
36
4623946E00
ref: 36
CUSHION,PILLION RIDER HANDLE,L
4623946E00
€ 9.50
37
0918008180
ref: 37
09180-08180-XC0
SPACER (8.5X16X37)
0918008180
€ 5.50
