FRAME
GSXR1100W 1997 (V) USA (E03)

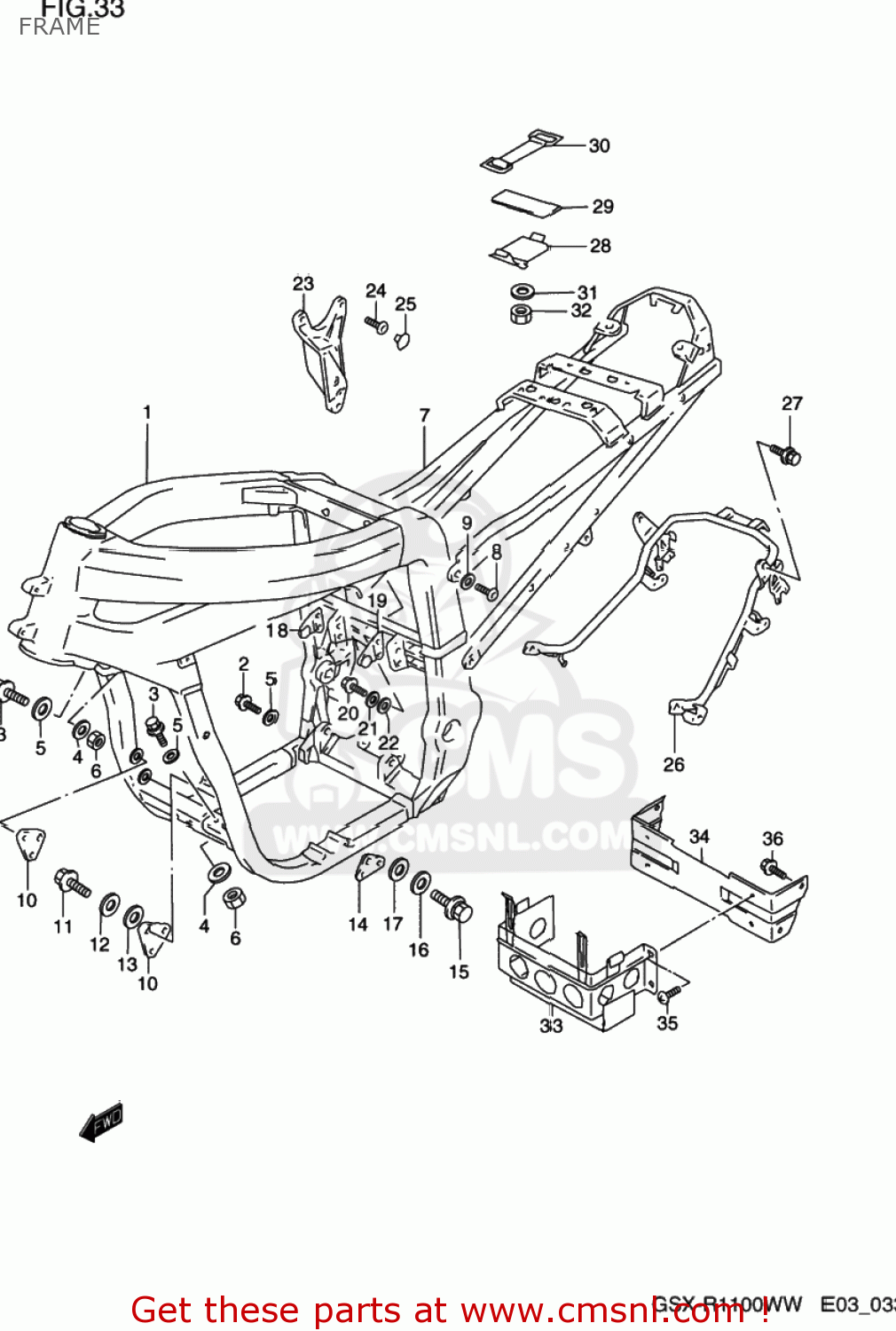

Frame diagram GSXR1100W 1997 (V) USA (E03)
FRAME GSXR1100W 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110046820
ref: 1-1
41100-46830
FRAME SET
€ 5,551.00
1-2
4110046830
ref: 1-2
FRAME SET
€ 5,551.00
1-3
4110046830
ref: 1-3
FRAME SET
€ 5,551.00
1-4
4110046840
ref: 1-4
FRAME SET
€ 3,499.50
2
0155010307
ref: 2
BOLT
€ 3.50
3-1
0910310284
ref: 3-1
BOLT(10X45)
€ 5.00
3-2
0155010453
ref: 3-2
01550-1045B
BOLT
€ 3.00
4-1
0916010013
ref: 4-1
09160-10123
WASHER (10.1X21X2.3)
€ 2.00
4-2
0916010123
ref: 4-2
WASHER(10.5X20X2.3)
€ 2.00
5
0916410010
ref: 5
WASHER
€ 6.50
6
0915910027
ref: 6
NUT
€ 3.00
7-1
4120046E00
ref: 7-1
RAIL,SEAT
€ 1,346.50
7-2
4120046E20
ref: 7-2
RAIL,SEAT
€ 1,065.50
8
4352917D00
ref: 8
09139-10004
BOLT,FOOTREST BRACKET
€ 5.50
9
0916410010
ref: 9
WASHER
€ 6.50
10
4191117E00
ref: 10
PLATE,ENG MTG NO.1
€ 27.00
11
0910308255
ref: 11
09103-08288
BOLT
€ 2.50
12-1
0832101087
ref: 12-1
WASHER,LOCK
€ 2.00
12-2
0832101083
ref: 12-2
08321-0108A
LOCK WASHER
€ 2.50
13-1
0916008010
ref: 13-1
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
13-2
0916008125
ref: 13-2
09160-08054
WASHER (8.5X20X1.6)
€ 1.50
14-1
4192117E00
ref: 14-1
PLATE,ENGINE MOUNTING
€ 8.50
14-2
4193117E00
ref: 14-2
PLATE,ENG MTG NO.2,R
€ 8.00
15
0910308255
ref: 15
09103-08288
BOLT
€ 2.50
16-1
0832101087
ref: 16-1
WASHER,LOCK
€ 2.00
16-2
0832101083
ref: 16-2
08321-0108A
LOCK WASHER
€ 2.50
17-1
0916008010
ref: 17-1
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
17-2
0916008125
ref: 17-2
09160-08054
WASHER (8.5X20X1.6)
€ 1.50
18
4194017E00
ref: 18
PLATE,ENGINE MOUNTING NO.3
€ 14.50
19
4195017E00
ref: 19
PLATE,ENG MTG NO.3,L
€ 16.00
20
0910608005
ref: 20
BOLT(8X22)
€ 2.00
21-1
0832101087
ref: 21-1
WASHER,LOCK
€ 2.00
21-2
0832101083
ref: 21-2
08321-0108A
LOCK WASHER
€ 2.50
22-1
0916008010
ref: 22-1
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
22-2
0916008125
ref: 22-2
09160-08054
WASHER (8.5X20X1.6)
€ 1.50
23-1
4196146E20
ref: 23-1
PLATE,ENGINE MOUNTING,UPPER,RIGHT
€ 104.00
23-2
4197146E20
ref: 23-2
PLATE,ENG MTG UPR,L
€ 520.00
24
0910608129
ref: 24
BOLT(8X25)
€ 5.00
25
0925005009
ref: 25
CAP(OD:10)
€ 2.50
26-1
4398046E10
ref: 26-1
43980-46E11
GRIP,REAR
€ 0.00
26-2
4398046E11
ref: 26-2
GRIP,RR
€ 0.00
27-1
0155008207
ref: 27-1
BOLT
€ 3.00
27-2
0155008203
ref: 27-2
01550-0820A
BOLT
€ 3.00
28-1
4155049200
ref: 28-1
41550-49201
HOLDER,TOOL
€ 10.00
28-2
4155049201
ref: 28-2
HOLDER,TOOL
€ 10.00
29
3692002200
ref: 29
COVER,HARNESS
€ 3.00
30
0946200034
ref: 30
BAND
€ 4.50
31-1
0916006006
ref: 31-1
09160-06084
WASHER
€ 2.00
31-2
0916006084
ref: 31-2
WASHER(6.5X18X1.6)
€ 2.00
32-1
0831921066
ref: 32-1
08319-2106A
NUT
€ 2.00
32-2
0831931063
ref: 32-2
08319-3106A
NUT
€ 2.50
32-3
0915906058
ref: 32-3
09159-06078
NUT
€ 2.50
32-4
0915906078
ref: 32-4
NUT
€ 2.50
33-1
4154017E00
ref: 33-1
41540-17E10
HOLDER,BATTERY
€ 69.50
33-2
4154017E50
ref: 33-2
41540-17E61
HOLDER,BATTERY
€ 65.00
33-3
4154017E10
ref: 33-3
HOLDER COMP,BATTERY
€ 69.50
33-4
4154017E60
ref: 33-4
41540-17E61
HOLDER,BATTERY
€ 65.00
33-5
4154017E61
ref: 33-5
HOLDER,BATTERY
€ 65.00
34-1
4156017E00
ref: 34-1
BRACKET,BATTERY HOLDER
€ 39.00
34-2
4156017E50
ref: 34-2
BRACKET COMP,BATTERY HOLDER
€ 32.50
35-1
0214206127
ref: 35-1
SCREW 6X12
€ 1.50
35-2
0214206123
ref: 35-2
02142-0612A
SCREW 6X12
€ 2.00
36
0155006163
ref: 36
01550-0616A
BOLT
€ 2.50
