FUEL COCK (MODEL T/V)
GSXR1100WSK 1995 (S) BRAZIL (E37)

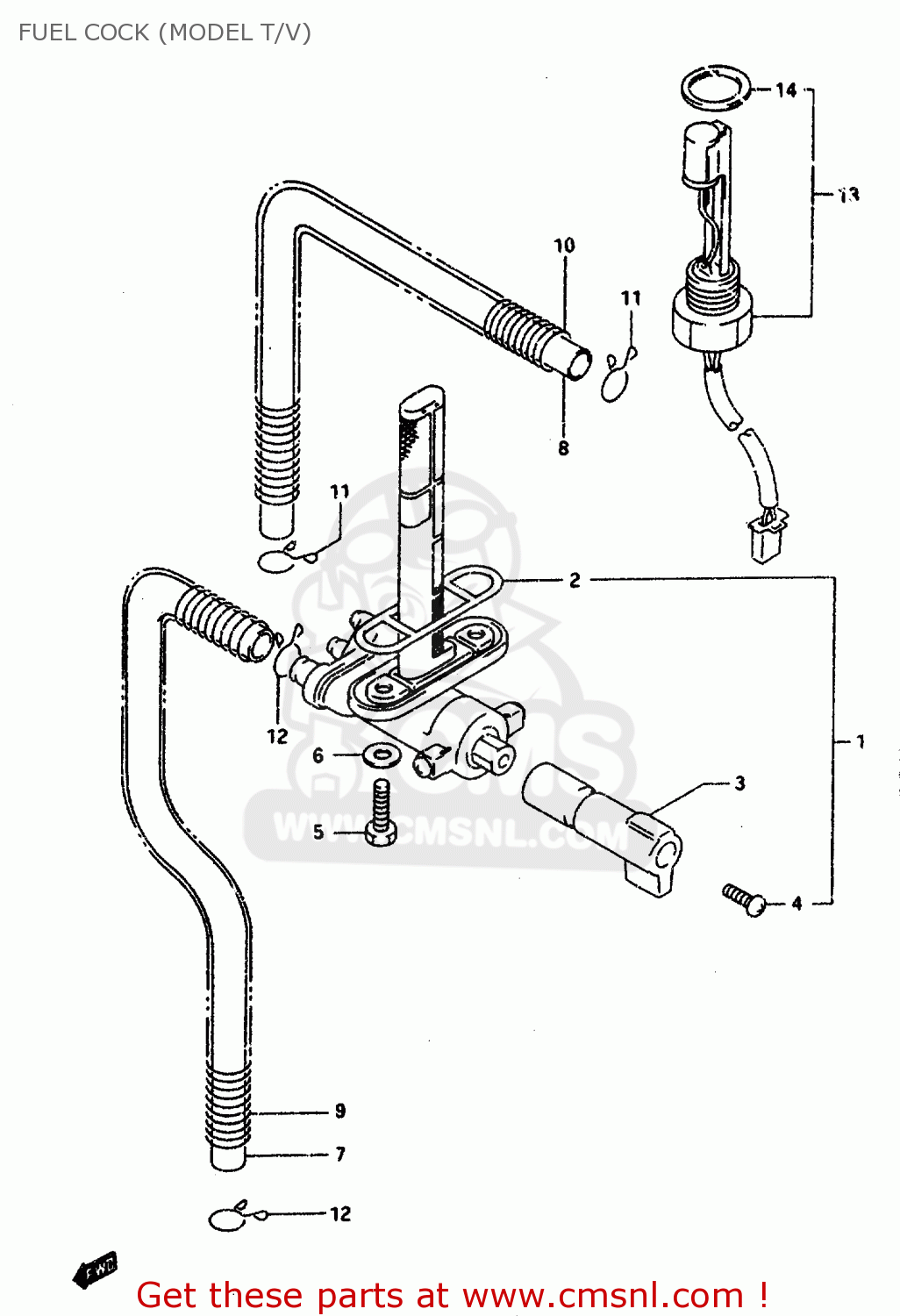

Fuel cock (model t/v) diagram GSXR1100WSK 1995 (S) BRAZIL (E37)
FUEL COCK (MODEL T/V) GSXR1100WSK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
4430046E11
ref: 1
COCK ASSEMBLY,FUEL
€ 227.50
2
4430517C00
ref: 2
O RING,FUEL TANK JOINT
€ 9.00
3
4430617E20
ref: 3
LEVER COCK FUEL
€ 16.00
4
0211234123
ref: 4
SCREW
€ 2.00
5
0912806057
ref: 5
BOLT(6X20)
€ 2.00
6
0916806026
ref: 6
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
7
0935270103600
ref: 7
HOSE(7X10.2X600)
€ 8.00
8
0935270103600
ref: 8
HOSE(7X10.2X600)
€ 8.00
9
0944013038
ref: 9
SPRING
€ 6.50
10
0944013047
ref: 10
SPRING
€ 6.00
11-1
0940110403
ref: 11-1
CLIP
€ 7.00
11-2
0940110409
ref: 11-2
E22
CLIP
€ 2.50
12
0940110201
ref: 12
CLIP
€ 2.00
13
3481040C01
ref: 13
GAUGE ASSY,FUEL LEVEL
€ 120.50
14
3482540C00
ref: 14
GASKET,FUEL LEVEL GAUGE (NAS)
€ 6.50
13
3482540C00
ref: 13
GASKET,FUEL LEVEL GAUGE (NAS)
€ 6.50
