Buy Suzuki GSXR Parts Online


REAR CUSHION LEVER (MODEL S/T/V)

GSXR1100WSK 1995 (S) BRAZIL (E37)

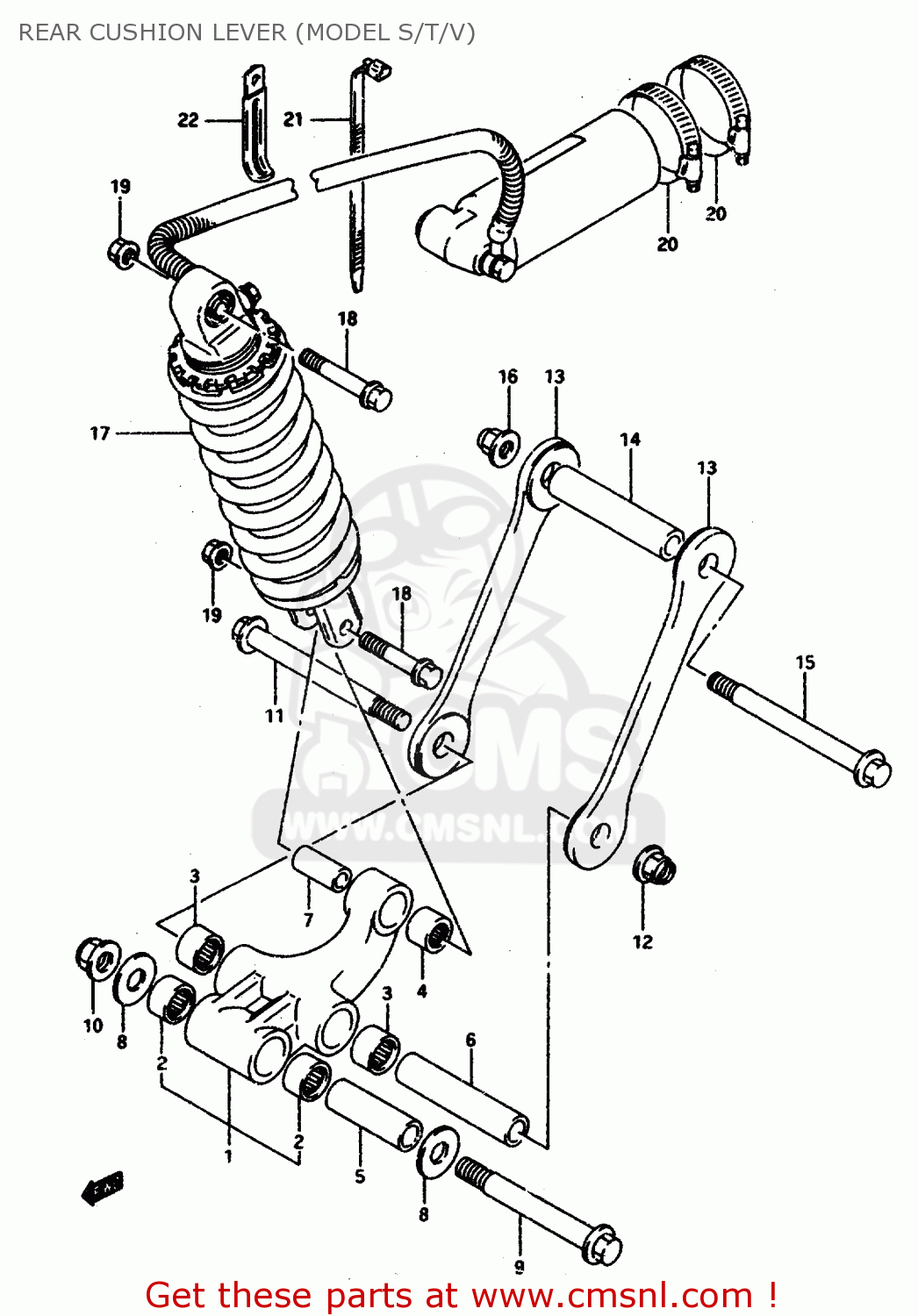

Rear cushion lever (model s/t/v) diagram GSXR1100WSK 1995 (S) BRAZIL (E37)

REAR CUSHION LEVER (MODEL S/T/V) GSXR1100WSK 1995 (S) BRAZIL (E37)
REAR CUSHION LEVER (MODEL S/T/V) GSXR1100WSK 1995 (S) BRAZIL (E37)
REAR CUSHION LEVER (MODEL S/T/V) GSXR1100WSK 1995 (S) BRAZIL (E37)
prices are in EUR
ref
part #
description
quantity
1
6260017811
ref: 1
LEVER SET,REAR CUSHION
€ 292.00
2
0926320071
ref: 2
BEARING(20X27X23.5)
0926320071
€ 21.50
3
0926317039
ref: 3
BEARING(17X24X20)
0926317039
€ 18.00
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
6231717C00
ref: 5
SPACER,RR CUSHION LEVER
6231717C00
€ 26.00
6
0918012122
ref: 6
SPACER(12X17X85)
0918012122
€ 15.00
7
6268440A10
ref: 7
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
8
0821114323
ref: 8
WASHER
0821114323
€ 3.50
9
6262117C00
ref: 9
SHAFT,RR CUSHION LEVER FR
6262117C00
€ 9.50
10
0831931148
ref: 10
NUT
0831931148
€ 9.00
11
0910312037
ref: 11
BOLT(12X115)
0910312037
€ 11.00
12
0831931128
ref: 12
NUT 12MM
0831931128
€ 4.00
13
6264046E10
ref: 13
ROD COMP,REAR CUSHION
6264046E10
€ 25.50
14
0918012122
ref: 14
SPACER(12X17X85)
0918012122
€ 15.00
15
0910312037
ref: 15
BOLT(12X115)
0910312037
€ 11.00
16
0831931128
ref: 16
NUT 12MM
0831931128
€ 4.00
17
6210046E10
ref: 17
ABSORBER ASSY,RR SHOCK
6210046E10
€ 1,261.50
18
0910310027
ref: 18
BOLT(10X58)
0910310027
€ 3.00
19
0831931107
ref: 19
NUT
0831931107
€ 3.00
20
0940250511
ref: 20
CLAMP
0940250511
€ 8.50
21
0940718403
ref: 21
CLAMP L:165
€ 2.50
22
0940408419
ref: 22
CLAMP(L:80)
€ 2.00
22
0940243501
ref: 22
CLAMP
€ 8.50
23
0940718402
ref: 23
CLAMP(L:165)
0940718402
€ 2.50
24
0940408413
ref: 24
CLAMP
€ 3.50
