Buy Suzuki GSXR Parts Online


INSTALLATION PARTS (MODEL P/R)

GSXR1100WSK 1995 (S) BRAZIL (E37)

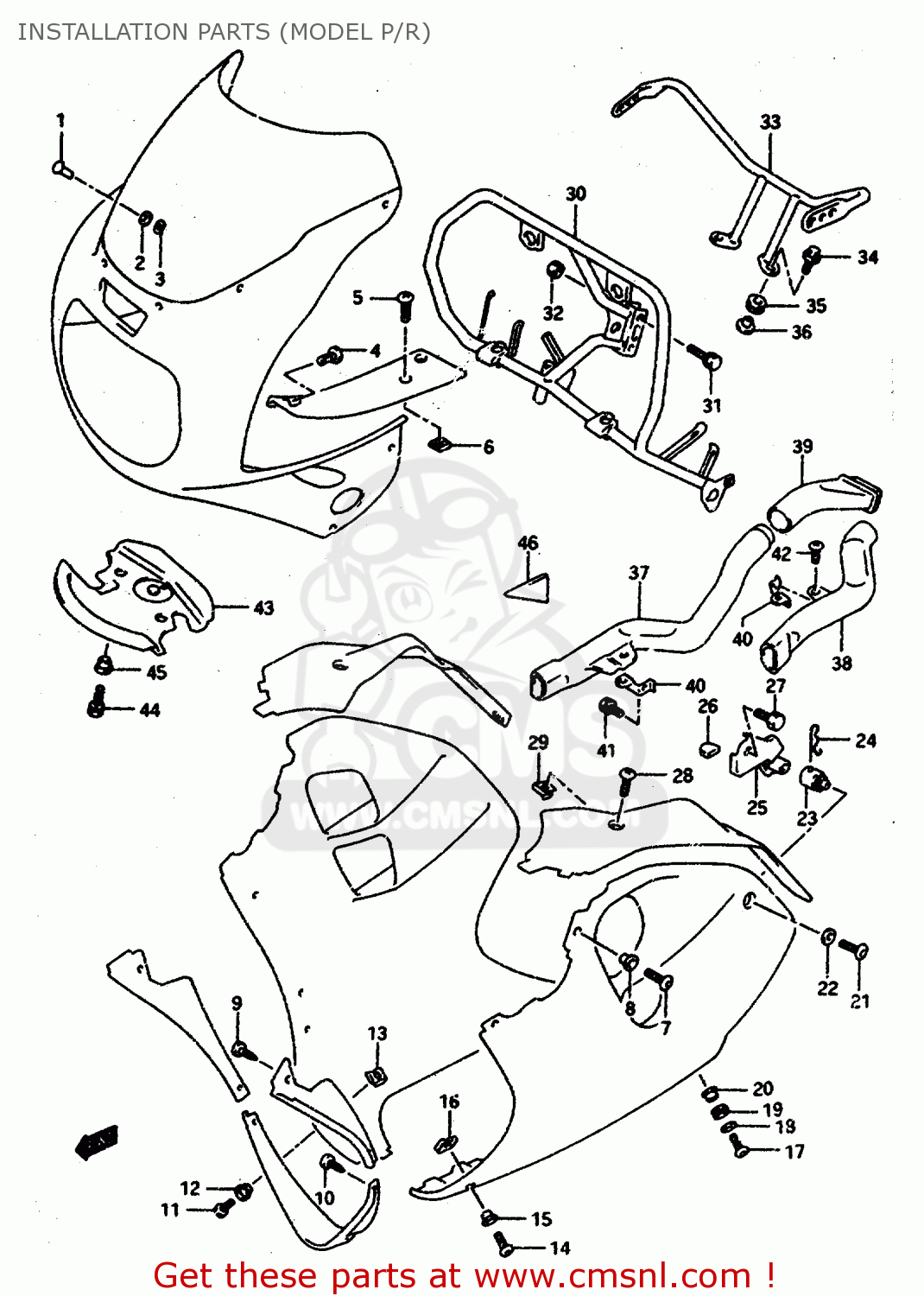

Installation parts (model p/r) diagram GSXR1100WSK 1995 (S) BRAZIL (E37)

INSTALLATION PARTS (MODEL P/R) GSXR1100WSK 1995 (S) BRAZIL (E37)
INSTALLATION PARTS (MODEL P/R) GSXR1100WSK 1995 (S) BRAZIL (E37)
INSTALLATION PARTS (MODEL P/R) GSXR1100WSK 1995 (S) BRAZIL (E37)
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
9461622D00
€ 2.50
2
0932004007
ref: 2
CUSHION
0932004007
€ 3.00
3
0914804032
ref: 3
NUT
0914804032
€ 2.50
4-1
0214205124
ref: 4-1
MODEL P
SCREW, FRONT & REAR
€ 1.50
4-2
0214205123
ref: 4-2
MODEL R
SCREW 5X12
0214205123
€ 1.50
5-1
0324205124
ref: 5-1
MODEL P
SCREW
0324205124
€ 1.50
5-2
0324105123
ref: 5-2
MODEL R
SCREW L:12
0324105123
€ 1.50
6
0914805013
ref: 6
NUT
0914805013
€ 1.50
7
0913905032
ref: 7
SCREW(5X18)
0913905032
€ 2.50
8
0916105018
ref: 8
WASHER(5.2X14X1.5)
0916105018
€ 6.50
9-1
0354105108
ref: 9-1
MODEL P
SCREW, RAIL
€ 1.50
9-2
0354105103
ref: 9-2
MODEL R
SCREW 5X10
0354105103
€ 1.50
10-1
0354105108
ref: 10-1
MODEL P
SCREW, RAIL
€ 1.50
10-2
0354105103
ref: 10-2
MODEL R
SCREW 5X10
0354105103
€ 1.50
11
0913905032
ref: 11
SCREW(5X18)
0913905032
€ 2.50
12
0916105017
ref: 12
WASHER(5.2X14X1.5)
0916105017
€ 3.00
13
9448432B00
ref: 13
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
14
0913905032
ref: 14
SCREW(5X18)
0913905032
€ 2.50
15
0916105017
ref: 15
WASHER(5.2X14X1.5)
0916105017
€ 3.00
16
9448432B00
ref: 16
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
17
0913906029
ref: 17
SCREW(6X25)
0913906029
€ 5.00
18
0916006056
ref: 18
WASHER(6.5X18X1)
0916006056
€ 2.00
19
0932009016
ref: 19
CUSHION
0932009016
€ 2.50
20
0916906062
ref: 20
WASHER
0916906062
€ 3.00
21
0913906028
ref: 21
SCREW(6X20)
0913906028
€ 3.50
22
0916006053
ref: 22
WASHER
0916006053
€ 2.00
23
9452012C00
ref: 23
PLUG,UNDER COWL FTG,CTR
9452012C00
€ 9.00
24
9452312C00
ref: 24
PIN,UNDER COWLING FITTING PIPE
9452312C00
€ 2.50
25-1
9453017E01
ref: 25-1
BRACE,UNDER COWLING UPR,R
9453017E01
€ 13.50
25-2
9454017E01
ref: 25-2
BRACE,UNDER COWLING UPR,L
9454017E01
€ 12.50
26
9455117E00
ref: 26
CUSHION,UPR BRACE
9455117E00
€ 4.50
27-1
0113706125
ref: 27-1
MODEL P
BOLT, BRACKET (6X12)
0113706125
€ 1.50
27-2
0157006123
ref: 27-2
MODEL R
BOLT
0157006123
€ 1.50
28-1
0324205124
ref: 28-1
MODEL P
SCREW
0324205124
€ 1.50
28-2
0324105123
ref: 28-2
MODEL R
SCREW L:12
0324105123
€ 1.50
29
0914805013
ref: 29
NUT
0914805013
€ 1.50
30
9451046E00
ref: 30
BRACE,COWLING
€ 304.50
31-1
0113708358
ref: 31-1
MODEL P
BOLT, BRACE (8X35)
0113708358
€ 2.00
31-2
0157008353
ref: 31-2
MODEL R
BOLT
0157008353
€ 2.00
32-1
0831320087
ref: 32-1
MODEL P
NUT
0831320087
€ 2.50
32-2
0831320083
ref: 32-2
MODEL R
NUT
€ 2.50
33
9452046E00
ref: 33
BRACE,RR VIEW MIRRORR
9452046E00
€ 104.00
34
0911606143
ref: 34
BOLT 6X20
0911606143
€ 2.00
35
0932009009
ref: 35
CUSHION
0932009009
€ 5.00
36
0916906062
ref: 36
WASHER
0916906062
€ 3.00
37
9445146E00
ref: 37
PIPE,AIR INTAKE,FRONT
€ 46.50
38
9445246E00
ref: 38
PIPE,AIR INTAKE,FRONT
€ 51.00
39
46E00
ref: 39
PIPE, AIR INTAKE REAR RH
€ 0.00
40-1
9445417E01
ref: 40-1
BRACKET,AIR INTAKE,RIGHT
9445417E01
€ 11.50
40-2
9445517E01
ref: 40-2
BRACKET,AIR INTAKE,LEFT
9445517E01
€ 10.00
41-1
0113706125
ref: 41-1
MODEL P
BOLT, BRACKET (6X12)
0113706125
€ 1.50
41-2
0155006123
ref: 41-2
MODEL R
BOLT
0155006123
€ 2.50
41-3
0155006123
ref: 41-3
E18
BOLT
0155006123
€ 2.50
42-1
0214206125
ref: 42-1
MODEL P
SCREW 6X12
0214206125
€ 2.00
42-2
0214206123
ref: 42-2
MODEL R
SCREW 6X12
0214206123
€ 2.00
42-3
0214206123
ref: 42-3
E18
SCREW 6X12
0214206123
€ 2.00
43
9445746E00
ref: 43
COVER,COWLING FR LWR
9445746E00
€ 17.00
44-1
0113706165
ref: 44-1
MODEL P
BOLT
€ 2.50
44-2
0157006163
ref: 44-2
MODEL R
BOLT
0157006163
€ 2.50
45
0916906041
ref: 45
WASHER
0916906041
€ 2.00
46
9447646E00
ref: 46
CUSHION,AIR INTAKE PROTECTOR,R
€ 5.00
