SPEEDOMETER (MODEL T/V)
GSXR1100WSK 1995 (S) BRAZIL (E37)

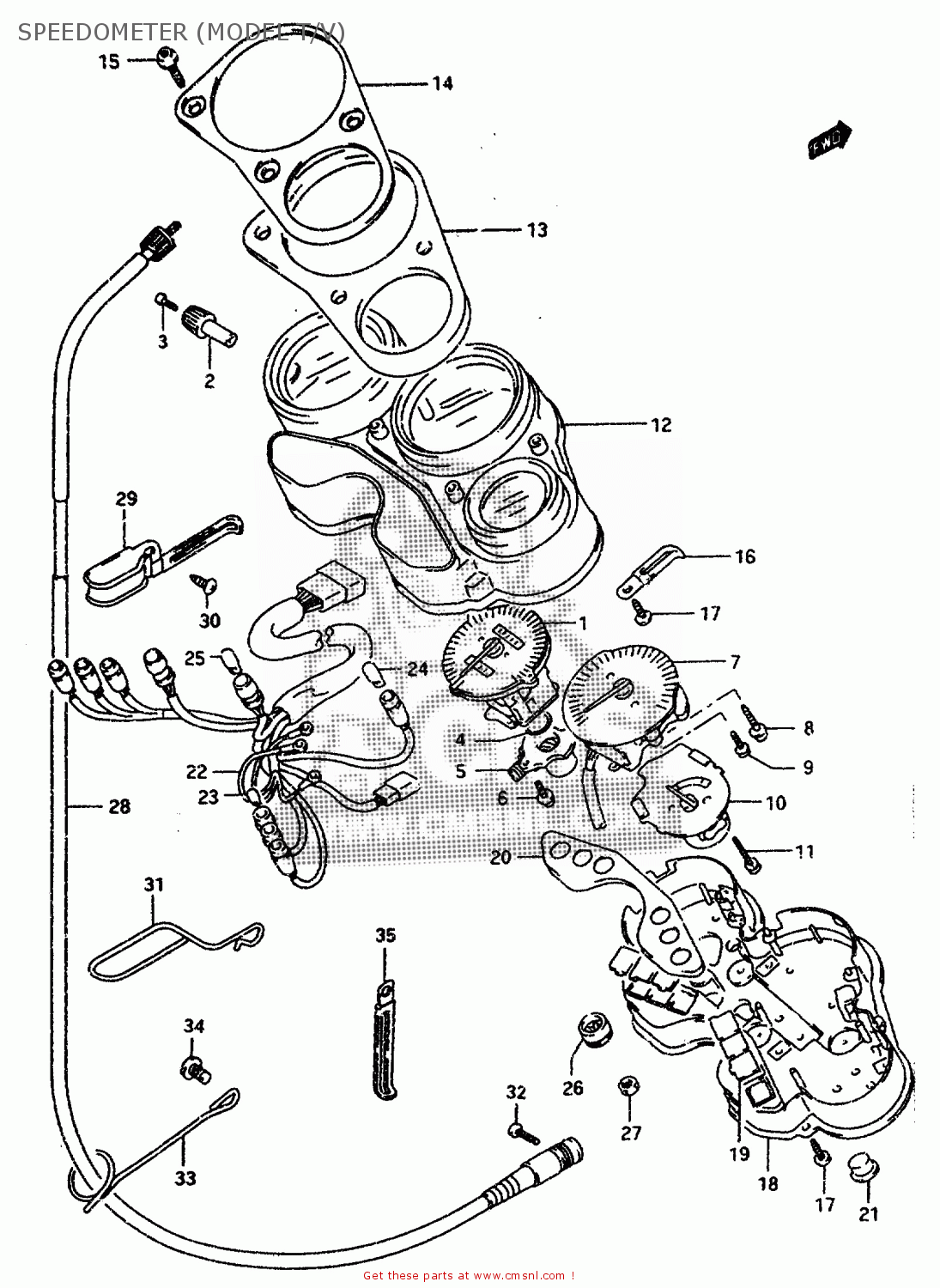

Speedometer (model t/v) diagram GSXR1100WSK 1995 (S) BRAZIL (E37)
SPEEDOMETER (MODEL T/V) GSXR1100WSK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412046E11
ref: 1-1
SPEEDOMETER (KILO)
€ 386.00
1-2
3412046E21
ref: 1-2
SPEEDOMETER(MILE/KILO)
€ 395.50
2
3412417E00
ref: 2
KNOB,TRIP
€ 5.50
3
0913902003
ref: 3
SCREW(2X6)
€ 2.00
4
3413217E00
ref: 4
O RING
€ 3.50
5
3413119B00
ref: 5
-34131-33450
BOX,GEAR
€ 134.00
6
0211274103
ref: 6
SCREW
€ 2.00
7
3422046E11
ref: 7
TACHOMETER
€ 418.00
8
3424917E00
ref: 8
SCREW(4X22)
€ 5.50
9
3414919D00
ref: 9
SCREW
€ 2.50
10
3442017E00
ref: 10
METER,TEMPERATURE
€ 113.00
11
3438309400
ref: 11
SCREW(3X22)
€ 2.50
12
3415017E30
ref: 12
HOOD
€ 75.00
13
3496117E01
ref: 13
CUSHION
€ 30.50
14
3496046E10
ref: 14
PANEL,METER
€ 156.00
15
3418617E00
ref: 15
SCREW
€ 10.00
16
0940406429
ref: 16
CLAMP(L:45)
€ 2.50
17
0354104163
ref: 17
SCREW
€ 1.50
18-1
3411146E20
ref: 18-1
CASE,METER
€ 108.50
18-2
3411146E10
ref: 18-2
E4,E18,E22,E24,E25,E
CASE,METER
€ 130.00
19-1
3630046830
ref: 19-1
LENS SET
€ 0.00
19-2
3630046820
ref: 19-2
E4,E18,E22,E24,E25,E
LENS SET
€ 32.50
20
3638617E00
ref: 20
PANEL
€ 22.00
21
3419817E00
ref: 21
CAP
€ 6.00
22
3417046E30
ref: 22
SOCKET
€ 89.50
23
0947112103
ref: 23
BULB(12V3W,T6.5)
€ 2.50
24
0947112108
ref: 24
BULB(12V1.7W,T6.5)
€ 2.00
25
0947112077
ref: 25
BULB(12V1.7W,T10,WB121)
€ 1.00
26
3495517E00
ref: 26
CUSHION,METER
€ 3.50
27
0915906076
ref: 27
NUT
€ 3.00
28
3491024D10
ref: 28
CABLE ASSY,SPEEDOMETER
€ 77.00
29
3493846E10
ref: 29
GUIDE,METER CABLE NO.1
€ 10.50
30
0354105083
ref: 30
SCREW 5X8
€ 2.00
31
3493617E30
ref: 31
GUIDE, CABLE NO.2
€ 0.00
32
0211205163
ref: 32
SCREW
€ 2.00
33
3493945000
ref: 33
GUIDE,SPEEDOMETER CABLE,R
€ 4.50
34
0214206103
ref: 34
SCREW 6X10
€ 2.00
35
0940406431
ref: 35
CLAMP(L:65)
€ 2.50
33
0916006102
ref: 33
WASHER (6.5X20X1.6)
€ 2.00
34
0918006116
ref: 34
SPACER(6.1X8X14.5)
€ 2.00
35
0831931055
ref: 35
NUT
€ 3.00
36
3491017E01
ref: 36
CABLE ASSY,SPEEDOMETER
€ 75.50
37
3493846E00
ref: 37
GUIDE,SPEEDOMETER CABLE
€ 8.50
38-1
0211205164
ref: 38-1
MODEL P
SCREW
€ 2.00
38-2
0211205163
ref: 38-2
MODEL R
SCREW
€ 2.00
39-1
0831311055
ref: 39-1
MODEL P
NUT
€ 2.00
39-2
0831310053
ref: 39-2
MODEL R
NUT
€ 2.00
40
3493945000
ref: 40
GUIDE,SPEEDOMETER CABLE,R
€ 4.50
41
0214206107
ref: 41
SCREW
€ 2.00
42-1
0211205164
ref: 42-1
MODEL P
SCREW
€ 2.00
42-2
0211205163
ref: 42-2
MODEL R
SCREW
€ 2.00
