OIL COOLER
GSXR1100WSK 1995 (S) BRAZIL (E37)

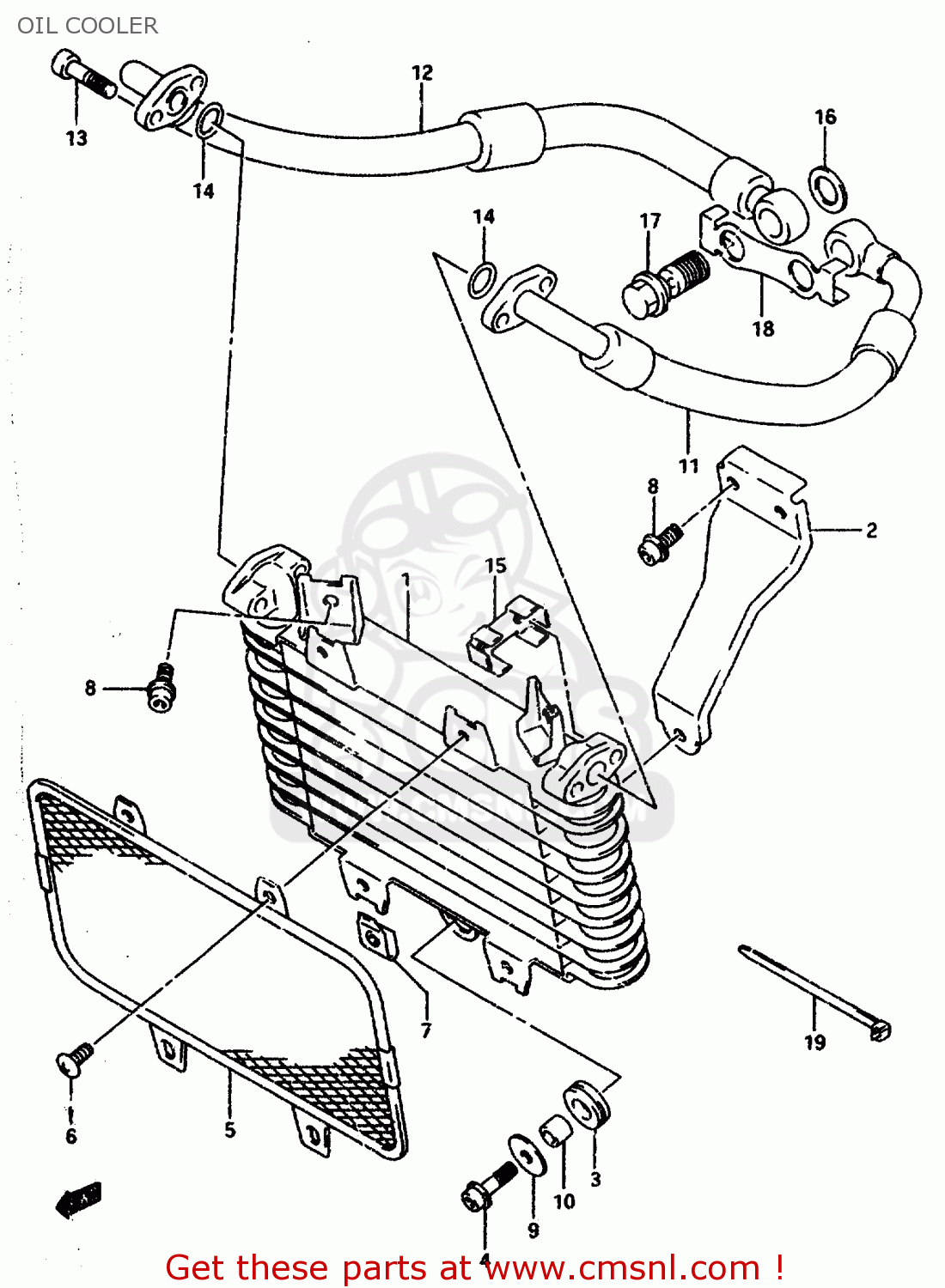

Oil cooler diagram GSXR1100WSK 1995 (S) BRAZIL (E37)
OIL COOLER GSXR1100WSK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1660046E00
ref: 1-1
~F.NO.GU75A-100325;
COOLER ASSEMBLY,OIL
€ 839.00
1-2
1660046E01
ref: 1-2
F.NO.GU75A-100326~;
COOLER ASSY,OIL
€ 839.00
2
1662046E00
ref: 2
BRACKET COMP,OIL COOLER
€ 12.50
3
0932010015
ref: 3
CUSHION
€ 2.50
4-1
0712006255
ref: 4-1
MODEL P
BOLT
€ 2.50
4-2
0713006253
ref: 4-2
MODEL R/S/T/V
BOLT,CL.COVER
€ 3.00
5
1665046E00
ref: 5
GUARD,OIL COOLER
€ 49.50
6-1
0214205084
ref: 6-1
MODEL P
SCREW
€ 2.00
6-2
0214205083
ref: 6-2
MODEL R/S/T/V
SCREW
€ 2.00
7-1
0914805023
ref: 7-1
MODEL P/R
NUT
€ 1.50
7-2
0914805021
ref: 7-2
MODEL S/T/V
NUT
€ 1.50
8-1
0712006125
ref: 8-1
MODEL P
BOLT
€ 3.50
8-2
0712006123
ref: 8-2
MODEL R/S/T/V
BOLT
€ 3.50
9-1
0916006038
ref: 9-1
MODEL P/R
WASHER
€ 2.00
9-2
0916006077
ref: 9-2
MODEL S/T/V
WASHER(6.5X20X1.2)
€ 2.00
10
0918006310
ref: 10
SPACER(6.5X10X10)
€ 2.00
11
1646046E00
ref: 11
HOSE,OIL COOLER INLET
€ 159.50
12
1647046E00
ref: 12
HOSE,OIL COOLER OUTLET
€ 160.50
13-1
0713006355
ref: 13-1
MODEL P; ~F.NO.GU75A
BOLT
€ 3.50
13-2
0713006305
ref: 13-2
MODEL P; F.NO.GU75A-
BOLT
€ 3.00
13-3
0713006253
ref: 13-3
MODEL R/S/T/V
BOLT,CL.COVER
€ 3.00
14
0928012008
ref: 14
O RING(D:2.4,ID:12.3)
€ 3.00
15
1659046E00
ref: 15
~F.NO.GU75A-100325;
NUT,OIL COOLER HOSE
€ 6.50
16
0916816002
ref: 16
GASKET(16X22X2) (NAS)
€ 2.00
17
0936016002
ref: 17
BOLT UNION
€ 12.00
18
1648146E00
ref: 18
GASKET,OIL COOLER HOSE UNION
€ 14.50
19-1
0940722404
ref: 19-1
MODEL P/R/S
CLAMP
€ 2.50
19-2
0940725401
ref: 19-2
MODEL T/V
CLAMP(L:235)
€ 4.00
