INSTALLATION PARTS
GSXR1100WSK 1995 (S) BRAZIL (E37)

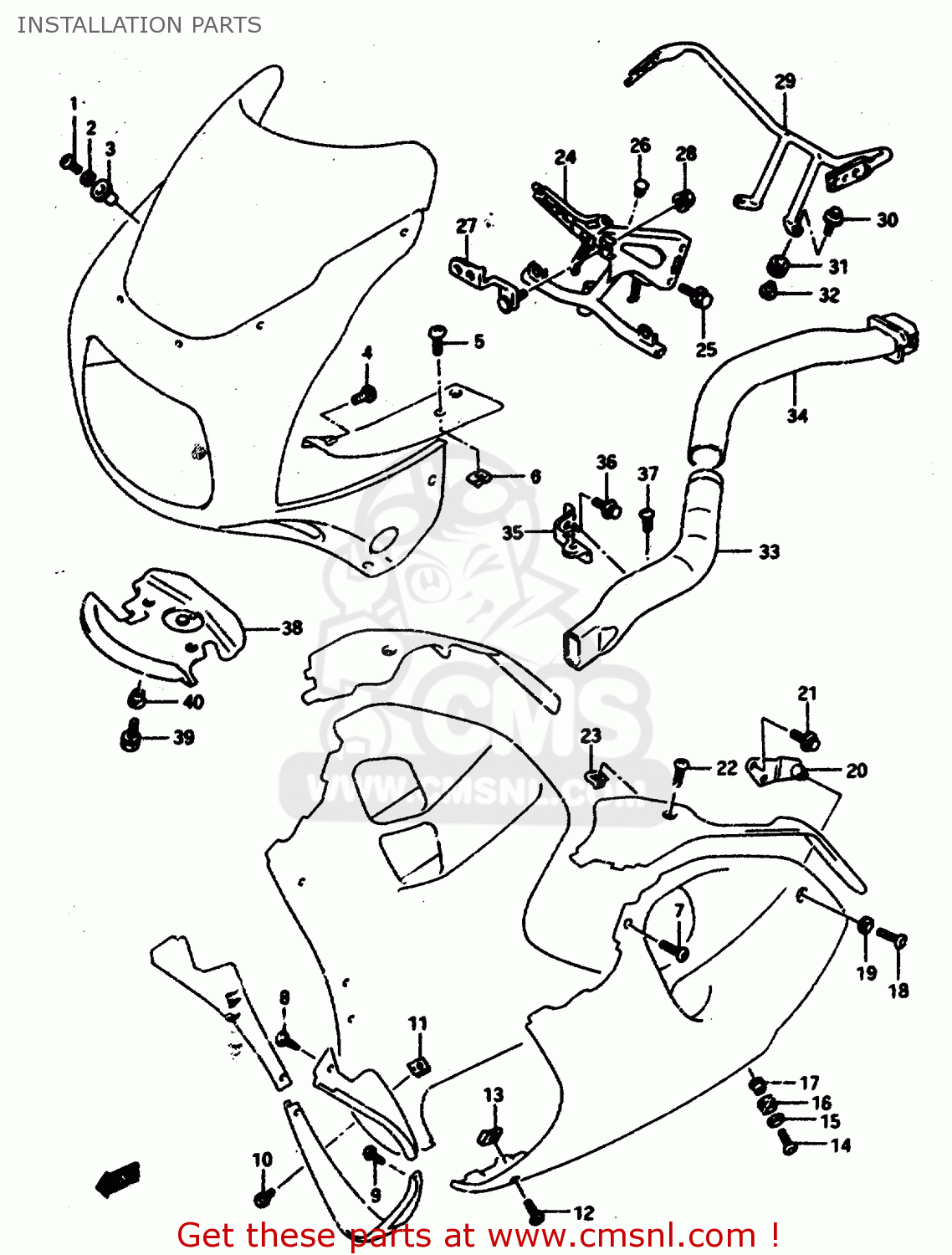

Installation parts diagram GSXR1100WSK 1995 (S) BRAZIL (E37)
INSTALLATION PARTS GSXR1100WSK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
0913905025
ref: 1
SCREW(5X14)
€ 2.00
2
0832201053
ref: 2
WASHER
€ 2.50
3
0915905019
ref: 3
NUT
€ 5.50
4
0354105103
ref: 4
SCREW 5X10
€ 1.50
5
0324105123
ref: 5
SCREW L:12
€ 1.50
6-1
0914805013
ref: 6-1
MODEL S
NUT
€ 1.50
6-2
0914805004
ref: 6-2
MODEL T/V
NUT
€ 1.50
7
0913905055
ref: 7
SCREW(5X16)
€ 6.00
8
0354105103
ref: 8
SCREW 5X10
€ 1.50
9
0354105103
ref: 9
SCREW 5X10
€ 1.50
10
0913905054
ref: 10
SCREW(5X16)
€ 6.00
11
9448432B00
ref: 11
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
12
0913905054
ref: 12
SCREW(5X16)
€ 6.00
13
9448432B00
ref: 13
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
14
0913906029
ref: 14
SCREW(6X25)
€ 5.00
15
0916006056
ref: 15
WASHER(6.5X18X1)
€ 2.00
16
0932009016
ref: 16
CUSHION
€ 2.50
17
0916906062
ref: 17
WASHER
€ 3.00
18
0913906078
ref: 18
SCREW(6X10)
€ 3.00
19
0916006053
ref: 19
WASHER
€ 2.00
20-1
9453046E20
ref: 20-1
BRACKET,UNDER COWLING UPR,R
€ 20.00
20-2
9454046E20
ref: 20-2
BRACKET,UNDER COWLING UPR,L
€ 22.50
21
0155006123
ref: 21
BOLT
€ 2.50
22
0324105123
ref: 22
SCREW L:12
€ 1.50
23-1
0914805013
ref: 23-1
MODEL S
NUT
€ 1.50
23-2
0914805004
ref: 23-2
MODEL T/V
NUT
€ 1.50
24
9451046E20
ref: 24
BRACE,COWLING
€ 147.50
25
0155008303
ref: 25
BOLT
€ 3.00
26
0925009001
ref: 26
CAP(OD:14)
€ 1.00
27
9442817E21
ref: 27
BRACKET,HEADLAMP
€ 22.00
28
0831610063
ref: 28
NUT
€ 2.50
29
9452046E10
ref: 29
BRACE,RR VIEW MIRRORR
€ 160.00
30
0911606146
ref: 30
BOLT(6X25)
€ 2.50
31
0932009009
ref: 31
CUSHION
€ 5.00
32
9452946E00
ref: 32
WASHER,MIRROR BRACE,IN
€ 3.50
33
9445246E20
ref: 33
PIPE,AIR INTAKE FR,L
€ 37.00
34
9445346E20
ref: 34
PIPE,AIR INTAKE RR
€ 27.50
35
9445517E01
ref: 35
BRACKET,AIR INTAKE,LEFT
€ 10.00
36
0155006123
ref: 36
BOLT
€ 2.50
37
0214206123
ref: 37
SCREW 6X12
€ 2.00
38
9445746E00
ref: 38
COVER,COWLING FR LWR
€ 17.00
39
0157006163
ref: 39
BOLT
€ 2.50
40
0916906041
ref: 40
WASHER
€ 2.00
