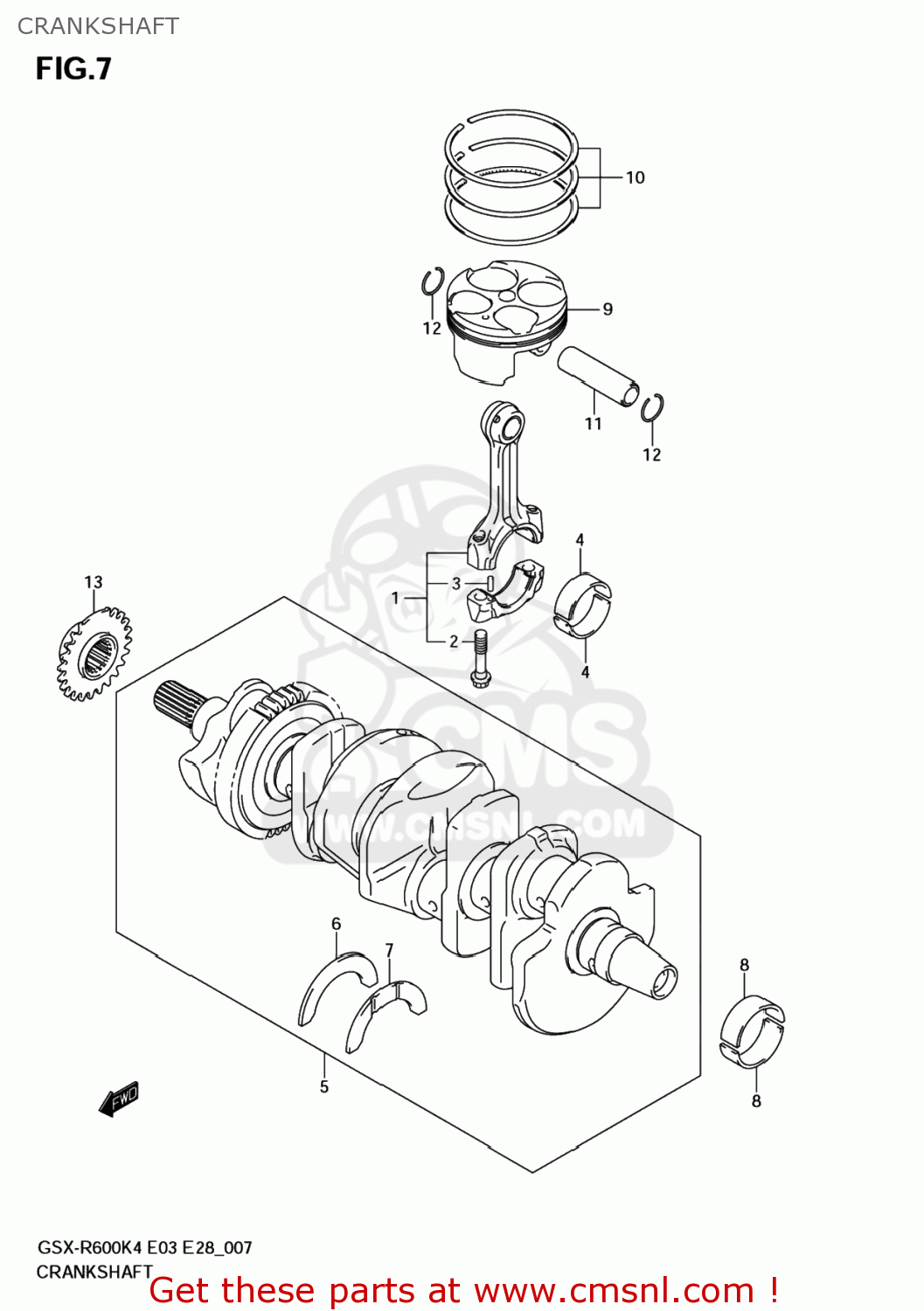

CRANKSHAFT

ref

part #

description

quantity

1

1216029G00
ref: 1

CONNECTING ROD ASSY

€ 154.00

2

1216335F00
ref: 2

BOLT,CONNECTING ROD

€ 9.00

3

1216527A50
ref: 3

PIN,CONNECTING ROD

€ 1.00

4-1

1216429G000A0
ref: 4-1

BEARING,CRANK PIN

€ 11.50

4-2

1216429G000B0
ref: 4-2

BEARING,CRANK PIN

€ 12.00

4-3

1216429G000C0
ref: 4-3

BEARING,CRANK PIN

€ 12.00

4-4

1216429G000D0
ref: 4-4

BEARING,CRANK PIN

€ 11.50

5

1200029810
ref: 5

CRANKSHAFT SET

€ 1,361.00

6

1222817E000D0
ref: 6

BEARING,CRANK THRUST(GREEN)

€ 8.00

7-1

1222817E000A0
ref: 7-1

BEARING,CRANK THRUST(RED)

€ 7.50

7-2

1222817E000B0
ref: 7-2

BEARING,CRANK THRUST(BLACK)

€ 7.50

7-3

1222817E000C0
ref: 7-3

BEARING,CRANK THRUST(BLUE)

€ 7.50

7-4

1222817E000D0
ref: 7-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

7-5

1222817E000E0
ref: 7-5

BEARING,CRANK THRUST(YELLOW)

€ 7.50

7-6

1222817E000F0
ref: 7-6

BEARING,CRANK THRUST(WHITE)

€ 7.50

8-1

1222929G000A0
ref: 8-1

BEARING,CRANKSHAFT

€ 18.50

8-2

1222929G000B0
ref: 8-2

BEARING,CRANKSHAFT

€ 19.50

8-3

1222929G000C0
ref: 8-3

BEARING,CRANKSHAFT

€ 19.00

8-4

1222929G000D0
ref: 8-4

BEARING,CRANKSHAFT

€ 19.00

9

1211129G000F0
ref: 9

PISTON

€ 95.50

10

1214029G00
ref: 10

RING SET,PISTON

€ 85.50

11

1215139F00
ref: 11

PIN,PISTON

€ 15.00

12

0938114001
ref: 12

RING,SNAP 14MM

€ 1.50

13

1273129G00
ref: 13

SPROCKET,CAM CHAIN DRIVE

€ 79.00

all assemblies
