THROTTLE BODY

GSXR600 2004 (K4) USA (E03)

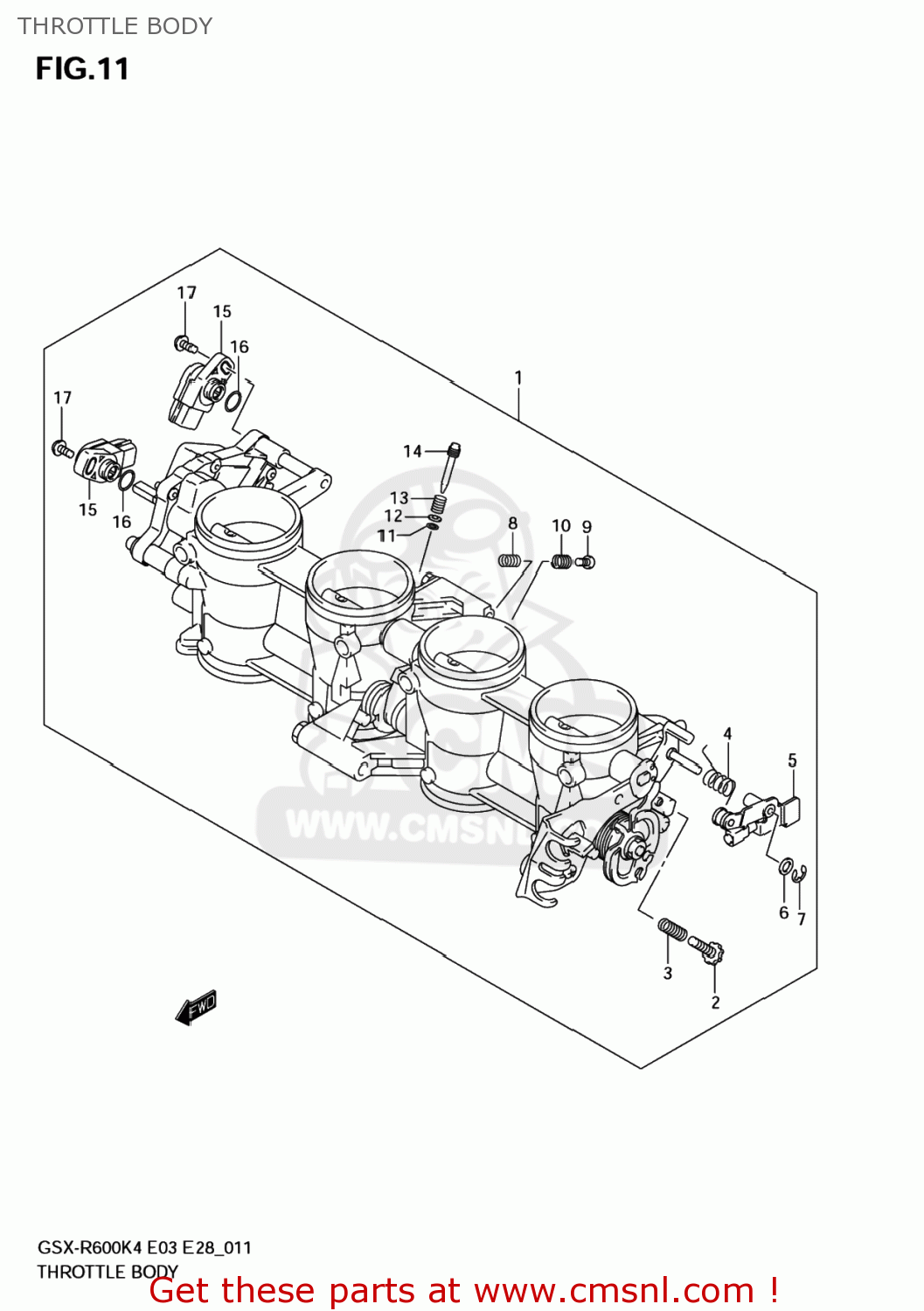

Throttle body diagram GSXR600 2004 (K4) USA (E03)

THROTTLE BODY GSXR600 2004 (K4) USA (E03)

THROTTLE BODY GSXR600 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1340529G00
ref: 1-1

BODY ASSY,THROTTLE

€ 1,349.00

1-2

1340529G10
ref: 1-2

BODY ASSY,THROTTLE

€ 0.00

2

1326729G00
ref: 2

SCREW

€ 11.00

3

1326829G00
ref: 3

SPRING

€ 5.50

4

1342629G00
ref: 4

SPRING,TORSION

€ 3.50

5

1342029G00
ref: 5

LEVER ASSY

€ 48.00

6

1342729G00
ref: 6

PACKING (NAS)

€ 2.50

7

1342429G00
ref: 7

E RING

€ 2.50

8

1326889J00
ref: 8

SPRING

€ 6.00

9

1354842F00
ref: 9

SCREW

€ 3.50

10

1327144B00
ref: 10

SPRING

€ 4.00

11

1329529900
ref: 11

O RING,PILOT AIR SCREW

€ 4.00

12

1360647A00
ref: 12

WASHER

€ 2.00

13

1326848700
ref: 13

SPRING,THROTTLE SCREW

€ 3.50

14

1326933E00
ref: 14

SCREW

€ 8.50

15

1358029G00
ref: 15

SENSOR ASSY

€ 101.50

16

1357529G00
ref: 16

O RING

€ 3.00

17

1360529G00
ref: 17

SCREW

€ 3.00
