OIL COOLER

GSXR600 2004 (K4) USA (E03)

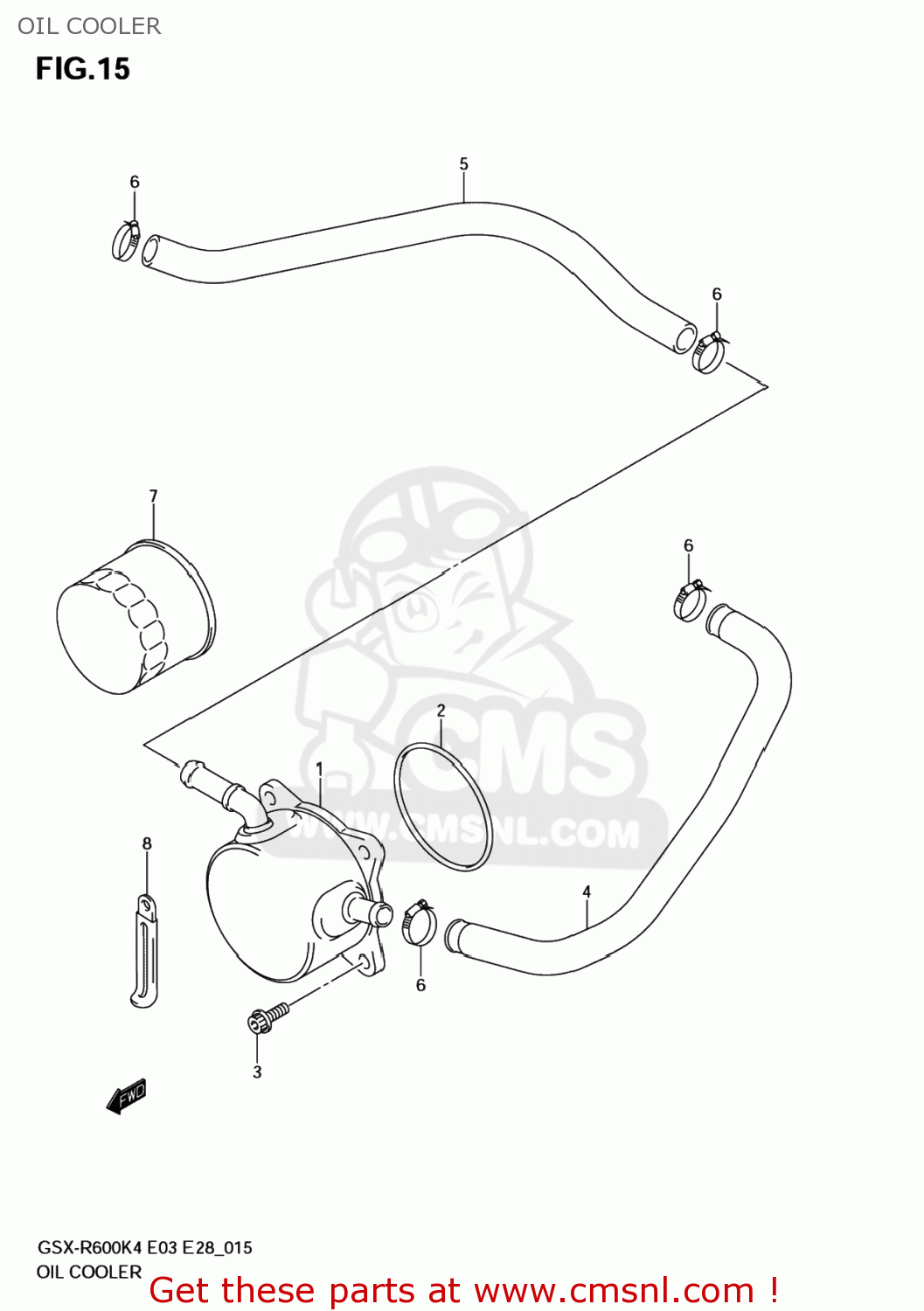

Oil cooler diagram GSXR600 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1660029G00
ref: 1

COOLER ASSY,OIL

€ 529.00

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

0910606099
ref: 3

BOLT(6X16)

€ 2.50

1646135F00
ref: 4

HOSE,OIL COOLER WATER INLET

€ 22.00

5-1

1647129G00
ref: 5-1

HOSE,OIL COOLER WATER OUTLET

€ 19.00

5-1

1647129G00
ref: 5-1

HOSE,OIL COOLER WATER OUTLET

€ 19.00

5-2

1647130G00
ref: 5-2

HOSE,OIL COOLER WATER OUTLET

€ 18.50

0940222511
ref: 6

CLAMP

€ 6.00

1651003G00X07
ref: 7
16510-07J00

FILTER ASSY,EN

€ 12.50

0940406433
ref: 8

CLAMP(L:80)

€ 3.00
