HANDLE SWITCH

GSXR600 2004 (K4) USA (E03)

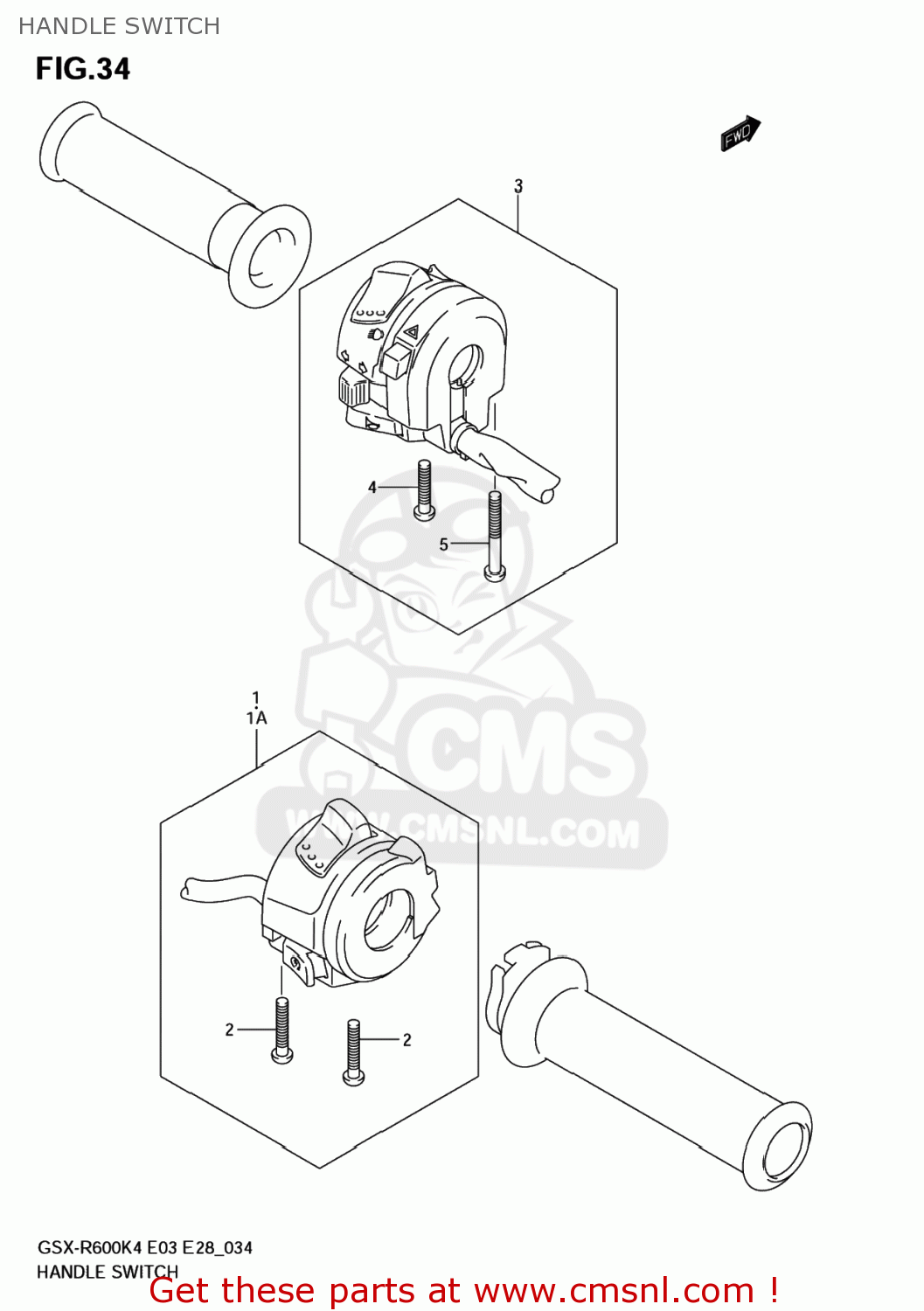

Handle switch diagram GSXR600 2004 (K4) USA (E03)

HANDLE SWITCH GSXR600 2004 (K4) USA (E03)

HANDLE SWITCH GSXR600 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720029G30
ref: 1

SWITCH ASSY,HANDLE,R

€ 137.50

1A

3720029G80
ref: 1A

SWITCH ASSY,HANDLE,R

€ 158.00

2

0211205303
ref: 2
02112-0530A

SCREW

€ 1.50

3

3740029G10
ref: 3
37400-29G11

SWITCH ASSY,HA

€ 211.00

4

0211205253
ref: 4
02112-0525A

SCREW

€ 1.50

5

0211205403
ref: 5
02112-0540B

SCREW

€ 2.00
