STARTER CLUTCH

GSXR600 2004 (K4) USA (E03)

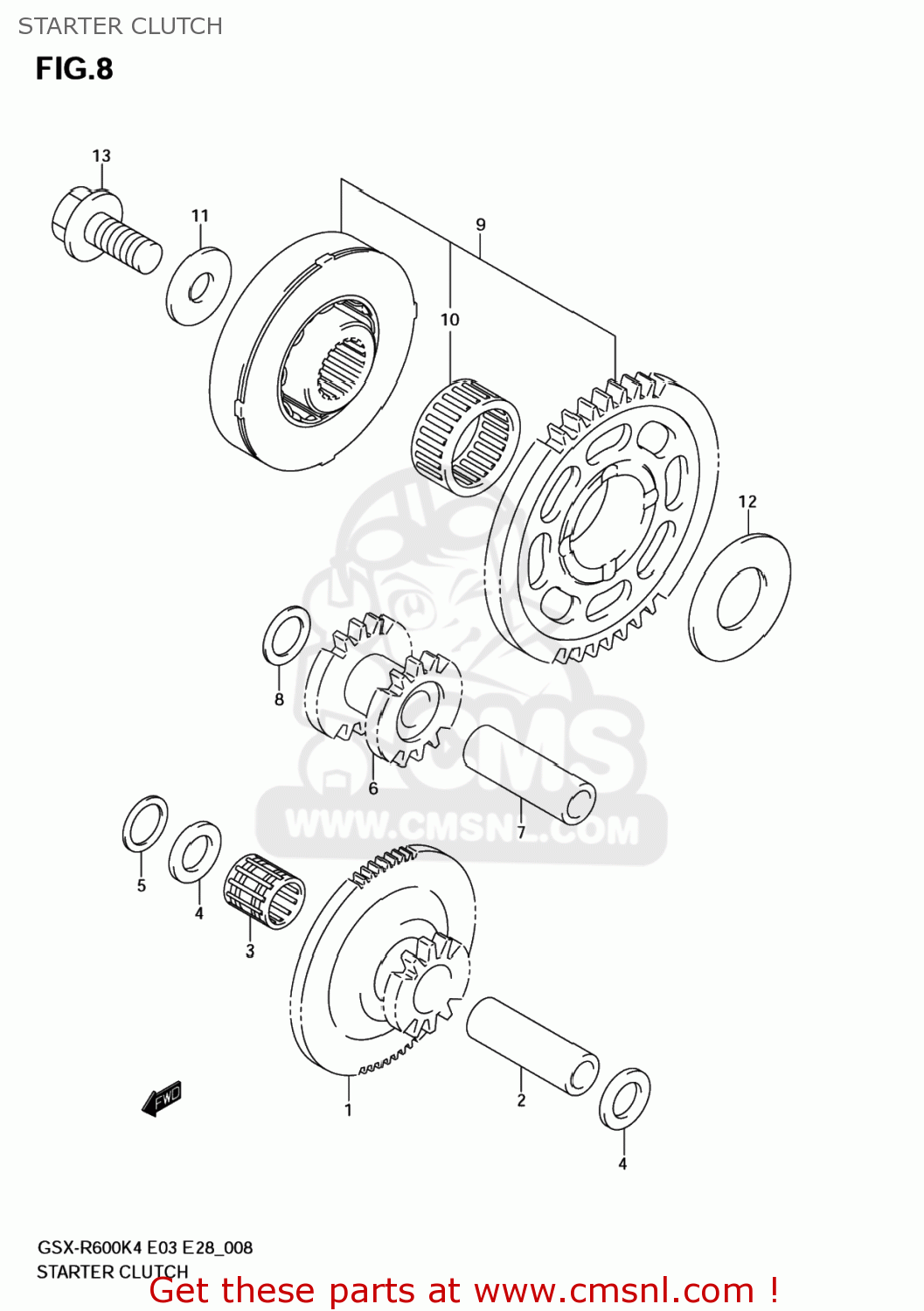

Starter clutch diagram GSXR600 2004 (K4) USA (E03)

STARTER CLUTCH GSXR600 2004 (K4) USA (E03)

STARTER CLUTCH GSXR600 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261140F00
ref: 1

GEAR,STARTER IDLE NO.1

€ 68.50

2

1215109204
ref: 2

PIN,PISTON

€ 8.50

3

0926312023
ref: 3

BEARING(12X16X16)

€ 9.00

4

0918112167
ref: 4

SHIM(12X20X1)

€ 2.50

5

0916412021
ref: 5

WASHER

€ 2.00

6

1261240F00
ref: 6

GEAR,STARTER IDLE NO.2

€ 48.00

7

1215109204
ref: 7

PIN,PISTON

€ 8.50

8

0916412021
ref: 8

WASHER

€ 2.00

9-1

1260040830
ref: 9-1
12600-40831

CLUTCH SET,STA

€ 300.00

9-2

1260040831
ref: 9-2

CLUTCH SET,STARTER

€ 300.00

10

0926326035
ref: 10

BEARING(26X31X16)

€ 39.00

11

0821110285
ref: 11

WASHER

€ 2.50

12

0821120403
ref: 12

WASHER

€ 3.50

13

0910310189
ref: 13

BOLT(10X23)

€ 4.50
